790811 | Manufacturer: Osram | EAN: 4008321790811 | MPN: OT-60-220-240-12-P
Optotronic OT 60 220V 12V IP67 LED power supply supplies drivers
More info
Osram Optotronic OT 60 220V 12V IP67 LED power supply supplies drivers. Discover the Optotronic OT 60 LED Power Supply Reliable, Waterproof, and Efficient. Perfect for your lighting needs.
Nominal voltage 220 - 240 V
Mains frequency 50 - 60 Hz
Input voltage AC 198 - 264 V
Power factor λ 0.98/0.93
ECG efficiency 86%
Device power loss 9 W
Inrush current 35 A
Max. ECG no. on circuit breaker 10 A (B) 11
Max. ECG no. on circuit breaker 16 A (B) 17
Surge capability (L-N) 3 kV
Nominal output voltage 12.5 V
Nominal output power 60 W
Galvanic isolation primary/secondary 3.75 kV

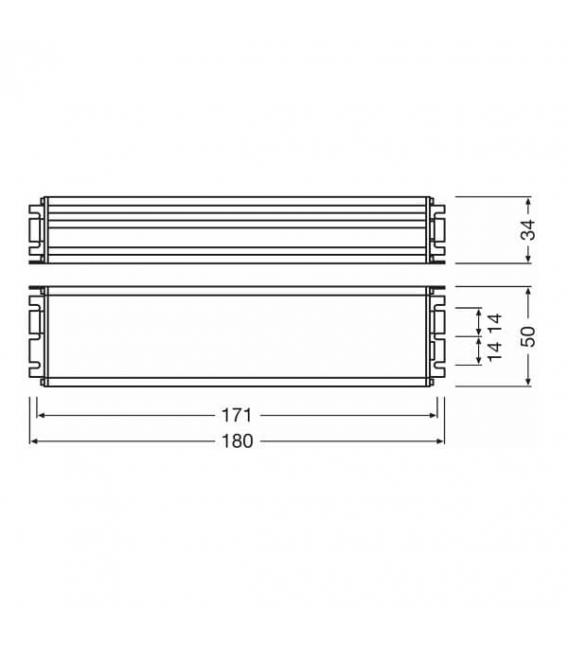

Length 180 mm
Width 50 mm
Height 34 mm
Mounting hole spacing, length 171 mm
Mounting hole spacing, width 14 mm
Cable cross-section, input side 1 mm²
Cable cross-section, output side 1 mm²
Wire preparation length, input side 10 mm
Wire preparation length, output side 10 mm
Casing material Metal
Ambient temperature range –25…+55 °C
Maximum temperature at tc test point 80 °C
Max.housing temperature in case of fault 100 °C
Temperature range at storage –40…85 °C
ECG lifetime 50000 h
Dimmable Yes (With OPTOTRONIC dimmers)
Dimming interface Not dimmable
Overheating protection Automatic reversible
Overload protection Automatic reversible
Short-circuit protection Automatic reversible
No-load proof Yes
Max. cable length to lamp/Led module 10m
Suitable for fixtures with prot. class II
Approval marks - approval CE / ENEC 18 / CB / C-Tick
Standards Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to CISPR 15/Acc. to IEC 61000 - 3-2/Acc. to IEC 61000 - 3-3/Acc. to IEC 61547
Type of protection IP67
Temperature range at storage –40…85 °C
Relative humidity 5…85%
Benefits
• Versatile scope of application due to output power range of up to 120 W
• Very high efficiency and reliability
• High IP protection (up to IP67)
• High surge protection: up to 3 kV (L-N) / 6 kV (L/N-PE)
Areas of application
• Suitable for indoor and outdoor installations
• Ideal for mounting in very tight spaces
| Explanation Dimmable | yes |
| Explanation Outdoor use | yes |
| Explanation Voltage - (V) | 220 |
| Explanation Wattage - (W) | 60 |
| Explanation Energy consumption - (kWh / 1000h) | 60 |
| Explanation Protection mark - (IPXX) | 67 |
| Explanation Lifetime - (h) | 50000 |
| Explanation Factory packed - (pieces) | 10 |
