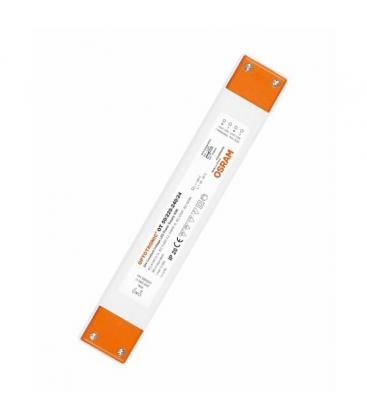

Optotronic OT 50 220V 24V LED power supply supplies drivers

Osram Optotronic OT 50 220V 24V LED power supply supplies drivers. Discover the Optotronic OT 50 LED power supply, delivering reliable performance for your lighting needs. Power up with this 220V to 24V solution today

Output power 50 W
Input voltage 198 - 264 V
Mains frequency 50 - 60 Hz
Output voltage 24 V
ECG efficiency 85%
Nominal voltage 220 - 240 V
Nominal current 0.35 A
Device power loss 8 W
Power factor λ N/A
Inrush current 45 A
Max. no. of ECGs on circuit breaker 10 A 12
Max. no. of ECGs on circuit breaker 16 A 19
Galvanic isolation primary/secondary 3.75 kV
Surge capability (L-N) 2 kV
Length 242 mm
Width 40 mm
Height 16 mm
Cable cross-section, input side 0.75-1.5 mm²
Cable cross-section, output side 0.5-1.5 mm²
Wire preparation length, input side 10 mm

Casing material Plastic
Ambient temperature range –20…+45 °C
Maximum temperature at tc test point 95 °C
Max.housing temperature in case of fault 110 °C
ECG lifetime 50000 h
Dimmable Yes (With OPTOTRONIC dimmers)
Suitable for fixtures with prot. class II
Overheating protection Automatic reversible
Overload protection Automatic reversible
Short-circuit protection Automatic reversible
No-load proof Yes
Maximum wiring length ECG/lamp 10m
Type of protection IP20
Standards acc. to IEC 61347-1/acc. to IEC 61347-2-13/acc. to IEC 62384/acc. to CISPR 15/acc. to IEC 61000 - 3-2/acc. to IEC 61547
Approval marks - approval CE / ENEC 10 / CB / C-Tick

Benefits
• Very high efficiency and reliability
• Versatile scope of application due to output power range of up to 240 W
• Constant luminous flux for very low and high temperatures due to Smart Power Supply

Areas of application
• Suitable for indoor and outdoor SELV installations
• Suitable for use in tight, flat luminaires or installation in suspended ceilings
• Outdoor applications only in suitable luminaires
