LED ledinaire BVP105 27W 840 PSU VWB100 220V IP65 floodlight

Philips LED ledinaire BVP105 27W 840 PSU VWB100 220V IP65 floodlight. Illuminate your space with the LEDinaire BVP105 27W 840 PSU VWB100. This IP65 LED floodlight delivers bright, energy-efficient lighting for any outdoor area.

Lamp family code Led25S [ Led Module, system flux 2500 lm]
Light source color 840 neutral white
Light source replaceable No
Number of gear units 1 unit
Driver/power unit/transformer Power supply unit
Driver included Yes
Optical cover/lens type Glass flat frosted
Luminaire light beam spread 100°
Connection Flying leads/wires
Cable Cable 0.5mwith cable connector 3-pole
Protection class IEC Safety class I
CE mark CE mark
Warranty period 3 years
Optic type outdoor Very wide beam angle 100°
Constant light output No
Number of products on MCB of 16 A type B 40
RoHS mark RoHS mark
Light source engine type Led
Input Voltage 220 - 240 V
Input Frequency 50 - 60 Hz
Inrush current 0.38 A
Inrush time 1 ms
Power Factor (Min) 0.9
Dimmable No
Housing Material Polycarbonate
Optic material Glass
Optical cover/lens material Glass
Fixation material Stainless steel
Mounting device Mounting bracket adjustable
Optical cover/lens shape Flat
Optical cover/lens finish Frosted

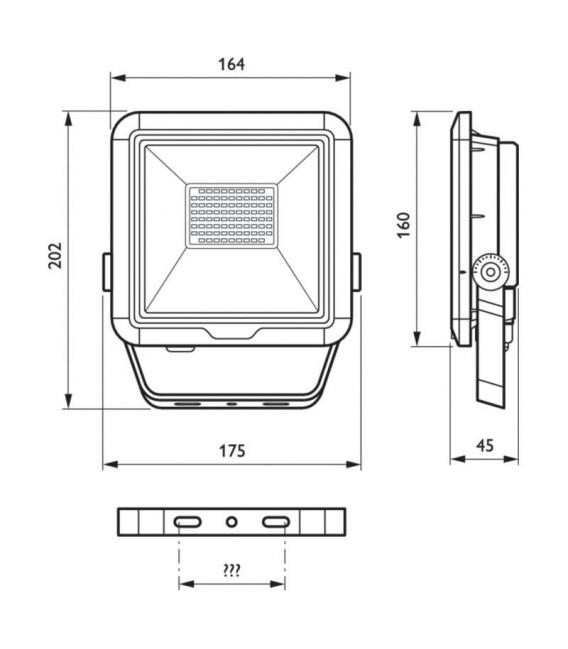

Overall length 164 mm
Overall width 45 mm
Overall height 160 mm
Effective projected area 0.027 m²
Width 175 mm
Ingress protection code IP65 [ Dust penetration-protected, jet-proof]
Mech. impact protection code IK07 [ 2 J reinforced]
Surge Protection (Common/Differential) 2/2 kV
Initial luminous flux (system flux) 2500 lm
Luminous flux tolerance ±10%
Initial Led luminaire efficacy 90 lm/W
Init. Corr. Color Temperature 4000 K
Init. Color Rendering Index >80
Initial input power 27 W
Power consumption tolerance ±10%
Control gear failure rate at median useful life 35000 h 7.5%
Lumen maintenance at median useful life 50000 hL70
Ambient temperature range -25 to +40 °C
Performance ambient temperature Tq 25 °C

Benefits
• Philips quality and reliability
• Fast payback: energy savings >80% (halogen lamps)
• Quick installation without opening the floodlight
• Philips high-quality finish, robust and fully reliable

Features
• System flux: 900 lm (10W); 2500 lm (27 W); 4500 lm (50W) versions with Neutral White, CRI 80 and a high efficiency of 90 lm/W
• Extra flat IP65 design of floodlights, supplied with cable, and that can be mounted Standing-up or hanging-down
• Motion detector versions
• Long lifetime of 35000 hours (Ta 25 °C)
• Prismatic glass for comfortable light
• CE, CB, ROHS compliant

Applications
• Building facades, retailing stores
• Gardens, underpasses
• Billboards
