261304 | Manufacturer: Philips | EAN: 8711500261304 | MPN: 927992096524
Master TL5 24W 965 HO 90 de luxe G5 high colour recognition light
Product is out of production!
Experience vibrant and true-to-life colors with our High Colour Recognition Light Lamps - Master TL5 24W 965 HO 90 de Luxe G5. With a tube diameter of 16mm and a Color Rendering Index (CRI) of 90, these lamps bring out the richness and depth in colors, just like natural daylight. Perfect for industries where color accuracy is crucial, such as printing, libraries, museums, hospitals, and specialty shops like jewelry stores or clothing boutiques. Illuminate your space with exceptional color quality.
More info
Philips Master TL5 24W 965 HO 90 de luxe G5 high colour recognition light Lamp. Illuminate your space with the High Colour Recognition Light Lamp Master TL5 24W 965 HO. Experience deluxe lighting quality for enhanced color perception.
Cap-Base G5
Bulb T5 [16 mm]
Life to 10% fail Preheat EL,3h 21000 h
Life to 50% fail Preheat EL,3h 30000 h
Color Code 965 [CCT of 6500 K]
Color Rendering Index 93 Ra8
Color Designation Cool Daylight
Color Temperature 6800 K
Luminous Flux EL 25 °C, Rated 1525 lm
Luminous Flux EL 25 °C, Nominal 1525 lm
Luminous Flux Lamp EL 35 °C 1750 lm
Luminous Efficacy Rated HF 25 °C 68 lm/W
Luminous Efficacy Rated HF 35 °C 78 lm/W
Luminance Average EL Top, 35 °C 1.9 cd/cm²
Luminance Average EL 25 °C 1.8 cd/cm²
LLMF HF 2000 h Rated 96%
LLMF HF 4000 h Rated 95%
Design Temperature 35 C
Chromaticity Coordinate X 313 -
Chromaticity Coordinate Y 337 -
Lamp Wattage 24 W
Lamp Voltage EL 25 °C 77 V
Lamp Voltage EL 35 °C 75 V
Lamp Current EL 25 °C 0.295 A
Lamp Current EL 35 °C 0.300 A
Dimmable Yes
Energy Efficiency Label (EEL)A
Mercury (Hg) Content 1.4 mg
Energy consumption kWh/1000 h 25 kWh
Calibration Current 0.300 A
HF Generator Rated Voltage 150 V
Resistor 250 Ω

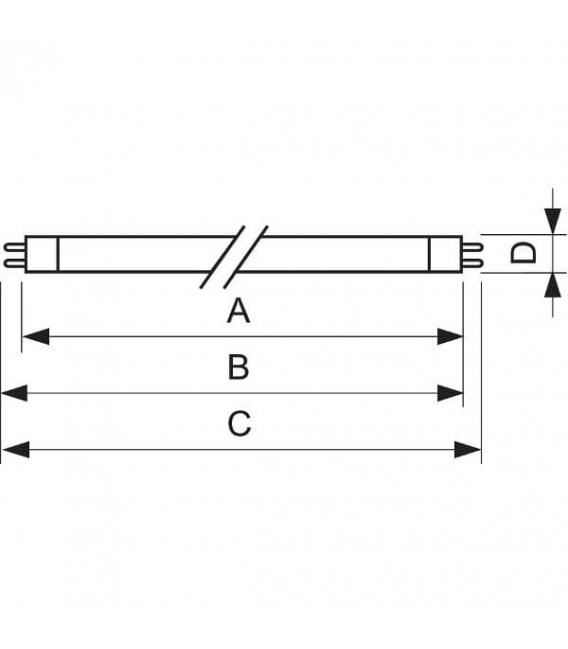

Base Face to Base Face A 549 (max) mm
Insertion Length B 553.7 (min), 556.1 (max) mm
Overall Length C 563.2 (max) mm
Diameter D 17 (max) mm
Seeing colors in a natural way
• Allows system miniaturisation and maximum luminaire design freedom, with lamp lengths defined for easy fitting into ceiling module systems
• Virtually constant lumen level with good lumen maintenance
• Excellent color rendering
Features
• 40% thinner than TL-D lamps
• Highly efficient multi-band fluorescent coating in combination with precoating
• Specifically designed for operation with electronic gear and well-suited for dimming
• Maximum light output reached at approximately 35 °C in free-burning position if an electronic driver with cut-off feature is used
• Can be ignited from –15 to +50 °C
Applications
• Where a high color recognition is needed: first aid and treatment rooms in hospitals, printing rooms, jewellery manufacturing, dentists, hairdressing, museums and shops
| Explanation It needs ballast | yes |
| Explanation Dimmable | yes, with DIMM ECG |
| Explanation Energy efficiency class | A |
| Explanation Lamp holder, lamp socket | G5 |
| Explanation Wattage - (W) | 24 |
| Explanation Luminous flux - (lm) | 1525 |
| Explanation Luminous efficacy - (lm / W) | 64 |
| Explanation Color temperature - (K) | 6500 |
| Explanation Light color code | 965 |
| Explanation Color rendering - (CRI) | 93 |
| Explanation Energy consumption - (kWh / 1000h) | 24 |
| Explanation Lifetime - (h) | 30000 |
| Explanation Factory packed - (pieces) | 20 |
