Master TL5 24W 940 HO 90 de luxe G5 high colour recognition light

Cap-Base G5
Bulb T5 [16 mm]
Life to 10% fail Preheat EL,3h 21000 h
Life to 50% fail Preheat EL,3h 30000 h
Color Code 940 [CCT of 4000 K]
Color Rendering Index 91 Ra8
Color Designation Cool White
Color Temperature 4000 K
Luminous Flux EL 25 °C, Rated 1525 lm
Luminous Flux EL 25 °C, Nominal 1525 lm
Luminous Flux Lamp EL 35 °C 1750 lm
Luminous Efficacy Rated HF 25 °C 68 lm/W
Luminous Efficacy Rated HF 35 °C 78 lm/W
Luminance Average EL Top, 35 °C 2 cd/cm²
Luminance Average EL 25 °C 1.8 cd/cm²
LLMF HF 2000 h Rated 96%
LLMF HF 4000 h Rated 95%
Design Temperature 35 C
Chromaticity Coordinate X 380 -
Chromaticity Coordinate Y 380 -
Lamp Wattage 24 W
Lamp Voltage EL 25 °C 77 V
Lamp Voltage EL 35 °C 75 V
Lamp Current EL 25 °C 0.295 A
Lamp Current EL 35 °C 0.300 A
Dimmable Yes
Energy Efficiency Label (EEL)A
Mercury (Hg) Content 1.4 mg
Energy consumption kWh/1000 h 25 kWh
Calibration Current 0.300 A
HF Generator Rated Voltage 150 V
Resistor 250 Ω

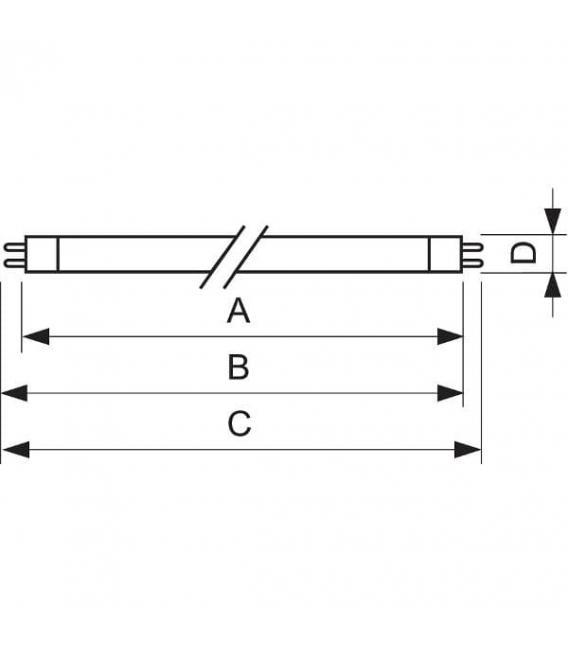

Base Face to Base Face A 549 (max) mm
Insertion Length B 553.7 (min), 556.1 (max) mm
Overall Length C 563.2 (max) mm
Diameter D 17 (max) mm
Seeing colors in a natural way
• Allows system miniaturisation and maximum luminaire design freedom, with lamp lengths defined for easy fitting into ceiling module systems
• Virtually constant lumen level with good lumen maintenance
• Excellent color rendering

Features
• 40% thinner than TL-D lamps
• Highly efficient multi-band fluorescent coating in combination with precoating
• Specifically designed for operation with electronic gear and well-suited for dimming
• Maximum light output reached at approximately 35 °C in free-burning position if an electronic driver with cut-off feature is used
• Can be ignited from –15 to +50 °C

Applications
• Where a high color recognition is needed: first aid and treatment rooms in hospitals, printing rooms, jewellery manufacturing, dentists, hairdressing, museums and shops
