Lumilux T5 ES 32W 830 HE high efficient G5 colour recognition light

Osram Lumilux T5 ES 32W 830 HE high efficient G5 colour recognition light Lamp. Illuminate your space with the High Colour Recognition Light Lamp Lumilux T5 ES 32W 830 HE. Enhance surroundings high-efficiency lighting that brings out true colors.

Nominal voltage 184 V
Nominal wattage 32 W
Rated lamp efficacy (HF data 25 °C) 98 lm/W
Rated wattage 31.60 W
Color rendering index Ra≥80
Rated luminous flux 3100 lm
Luminous flux at 25 °C 3100 lm
Luminous flux at 35 °C 3650 lm
Light color 830
Color temperature 3000 K
Nominal luminous flux 3100 lm
Light color (designation) LUMILUX Warm White
Rated LLMF at 2000 h 0.95
Rated LLMF at 4000 h 0.93
Rated LLMF at 6000 h 0.92

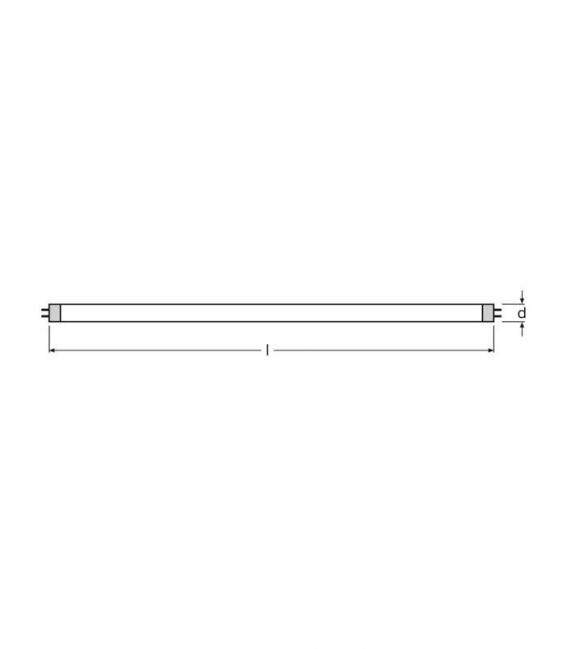

Tube diameter 16 mm
Length 1449 mm
Length with base excl. base pins/connection 1449 mm
Diameter 16 mm
Rated ambient temp.w.max.luminous flux 35 °C
Service life 19000 h
Lifespan 24000 h
Operation mode LLMF/LSF HF
Rated lamp life time 24000 h
Nominal lamp life time 24000 h

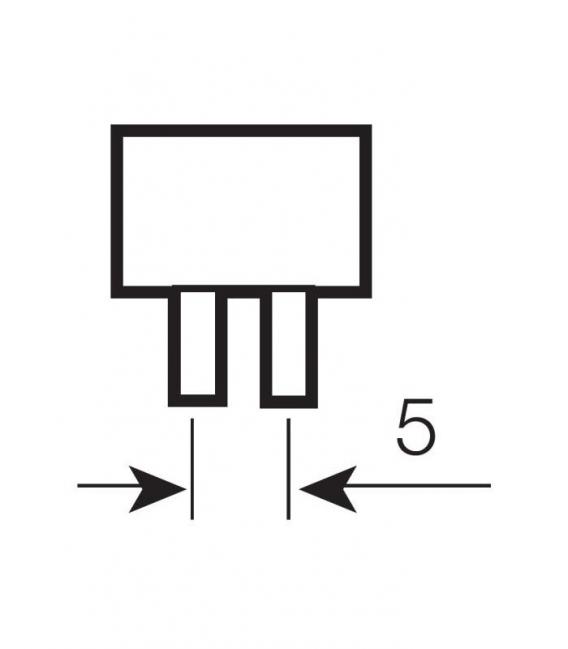

Base (standard designation) G5
Mercury content 1.9 mg
Appropriate disposal acc. to WEEE Yes
Product remark For ECG operation only
Lamp designed for internal luminaire temperatures of –30…40 °C
Optimum luminous flux achieved at 35 °C
Dimmable Yes
Suitable for indoor Yes
Energy efficiency class A+
Energy consumption 35 kWh/1000 h

Benefits
• Up to 10% energy savings compared to standard T5 HE LUMILUX lamps
• Excellent economy and efficiency
• Pay-back time less than 1 year
• High luminous efficacy

Applications
• Public buildings
• Offices
• Shops
• Supermarkets and department stores
• Industry
• Outdoor applications only in suitable luminaires

Features
• Luminous efficacy: up to 114 lm/W
• Very good lumen maintenance: 90% throughout the service lifetime of the lamp
• Long average lifetime: up to 24000 h (with QUICKTRONIC ECG)
• Good color rendering group: 1B (Ra: 80…89)
• Dimmable

Download Lamp-ECG combinations HE ES 32W-830
