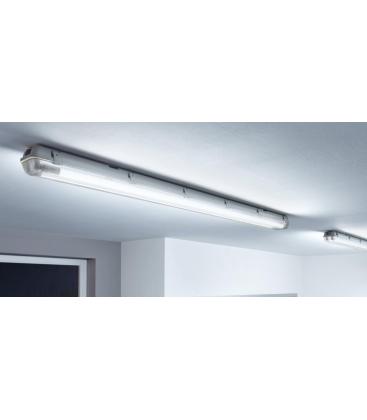

LED SubMARINE 2x8W 840 IP65 600mm

Nominal wattage 16 W
Nominal voltage 220 - 240 V
Mains frequency 50 - 60 Hz
Color temperature 4000 K
Color rendering index Ra>80
Light color (designation) Cool White
Luminous flux 1400 lm
Length 655 mm
Width 115 mm
Height 86 mm
Product weight 1013 g
Body material Polycarbonate (PC)
Housing color Gray
Product color Gray
Cover material Polycarbonate (PC)
Mounting type Surface
Mounting location Ceiling / Wall
Dimmable No
Type of connection Terminal, 3-pin
Holder designation G13
Protection class I
Type of protection IP65
Standards CE/Acc. to IEC 60598-1/RoHS/REACH/Acc. to IEC 62471

Benefits
• Optimal electrical protection thanks to two security components
• Energy savings of up to 65% comp. to luminaires using T8 fluorescent lamps on CCG
• Good, even illumination
• Quick and easy lamp replacement

Applications

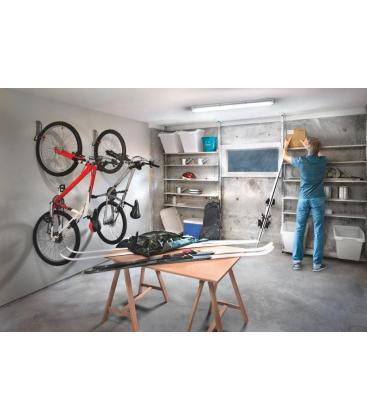

• Basements, garages, warehouses
• For indoor use only

Features
• Color rendering index Ra: ≥ 80
• Color temperature: 4000 K
• Damp-proof luminaire with Led tube for mains voltage operation
• Durable and energy-saving Led luminaire
• Protection class: I
• PG cable gland on the side
• Fire and ignition resistant housing acc. to EN 60598-1, 650 °C Glow Wire Test
• Robust polycarbonate casing
• Lifetime: up to 30000 h
• Mercury-free and RoHS compliant
• Not dimmable
• Dust-protected and jet-proof (IP65)

Equipment / Accessories
• SubstiTUBE STAR EM and SubstiTUBE Start are delivered with the product

SAFETY ADVICE
Installation by qualified electrician only.
Luminaire must be disconnected from mains during installation, maintenance and cover removal
