398368 | Manufacturer: Osram | EAN: 4052899398368 | MPN: SUBMARINE-2X20W-4000K

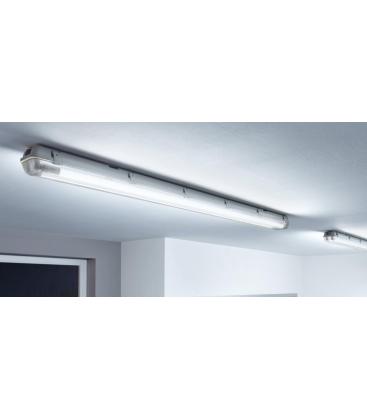

LED submarine 2x20W 840 IP65 1500mm premium waterproof light
Introducing the Led SubMARINE 2x20W 840 IP65 1500mm, a powerful and efficient lighting solution for basements, garages, and warehouses. With a color rendering index of Ra≥80 and a color temperature of 4000K, this damp-proof luminaire provides good, even illumination. Its durable polycarbonate casing ensures long-lasting performance while its energy-saving LED technology helps you save up to 65% on energy costs compared to traditional fluorescent lamps. Easy lamp replacement and optimal electrical protection make this luminaire a smart choice for any indoor space. Safety advice: installation by qualified electrician only.
More info
Illuminate your space with the LED SubMARINE 2x20W 840 IP65 1500mm, a standout in our Waterproof Luminaires category. Experience superior brightness and durability today
Nominal wattage 40 W
Nominal voltage 220 - 240 V
Mains frequency 50 - 60 Hz
Color temperature 4000 K
Color rendering index Ra>80
Light color (designation) Cool White
Luminous flux 3500 lm

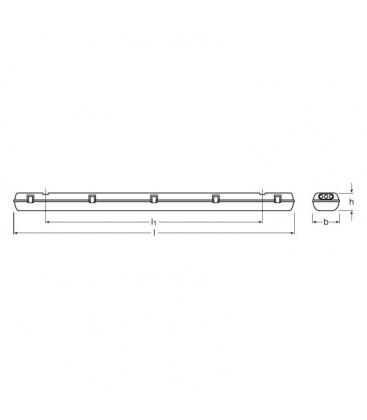

Length 1565 mm
Width 115 mm
Height 86 mm
Product weight 2328g
Body material Polycarbonate (PC)
Housing color Gray
Product color Gray
Cover material Polycarbonate (PC)
Mounting type Surface
Mounting location Ceiling / Wall
Dimmable No
Type of connection Terminal, 3-pin
Holder designation G13
Protection class I
Type of protection IP65
Standards CE/Acc. to IEC 60598-1/RoHS/REACH/Acc. to IEC 62471
Benefits
• Optimal electrical protection thanks to two security components
• Energy savings of up to 65% comp. to luminaires using T8 fluorescent lamps on CCG
• Good, even illumination
• Quick and easy lamp replacement
Applications

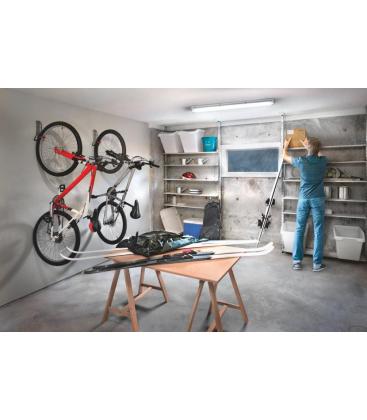

• Basements, garages, warehouses
• For indoor use only
Features
• Color rendering index Ra: ≥ 80
• Color temperature: 4000 K
• Damp-proof luminaire with Led tube for mains voltage operation
• Durable and energy-saving Led luminaire
• Protection class: I
• PG cable gland on the side
• Fire and ignition resistant housing acc. to EN 60598-1, 650 °C Glow Wire Test
• Robust polycarbonate casing
• Lifetime: up to 30000 h
• Mercury-free and RoHS compliant
• Not dimmable
• Dust-protected and jet-proof (IP65)
Equipment / Accessories
• SubstiTUBE STAR EM and SubstiTUBE Start are delivered with the product
SAFETY ADVICE
Installation by qualified electrician only.
Luminaire must be disconnected from mains during installation, maintenance and cover removal
| Explanation Dimmable | no |
| Explanation Lamp Included | yes |
| Explanation Energy efficiency class | A+ |
| Explanation Voltage - (V) | 220 |
| Explanation Wattage - (W) | 40 |
| Explanation Luminous flux - (lm) | 3500 |
| Explanation Luminous efficacy - (lm / W) | 87 |
| Explanation Color temperature - (K) | 4000 |
| Explanation Light color code | 840 |
| Explanation Color rendering - (CRI) | 80 |
| Explanation Energy consumption - (kWh / 1000h) | 40 |
| Explanation Protection mark - (IPXX) | 65 |
| Explanation Lifetime - (h) | 30000 |
| Explanation Type of installation | Surface mounted |
| Explanation Factory packed - (pieces) | 6 |
