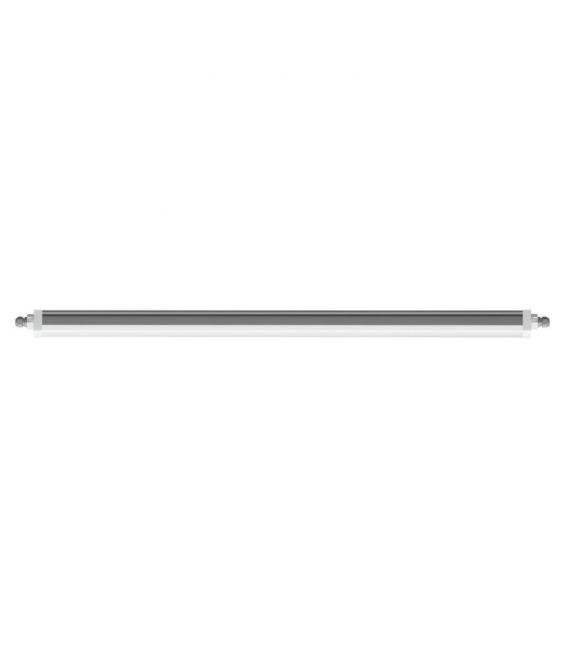

Ledvance damp proof compact 55W 840 GY IP65 1500mm luminaire

Osram Ledvance damp proof compact 55W 840 GY IP65 1500mm luminaire. Illuminate your space with the Ledvance Damp Proof Compact 55W 840 GY, a standout in our Waterproof Luminaires IP65 category. Experience superior lighting at 1500mm length.

Nominal wattage 55 W
Operating mode Electronic control gear (ECG)
Nominal voltage 220 - 240 V
Power factor λ >0.90
Mains frequency 50 - 60 Hz
Color temperature 4000 K
Luminous flux 6700 lm
Luminous efficacy 120 lm/W
Standard deviation of color matching ≤5 sdcm
Light color (designation) Cool White
Color rendering index Ra>80
Beam angle 120°
Length 1590 mm
Width 86 mm
Height 68 mm
Product weight 1380 g
Body material Polycarbonate (PC)
Housing color Gray
Product color Gray
Cover material Polycarbonate (PC)
Ambient temperature range -35…50 °C
Lifespan L70 at 25 °C 50000 h
Lifespan L80 at 25 °C 35000 h
Lifespan L90 at 25 °C 20000 h
Mounting type Suspended/Surface
Mounting location Ceiling / Wall
Dimmable No
Type of connection Terminal, 3-pin
Ball shot safe No
Led module replaceable Not replaceable
Protection class IK (shock resistance) IK08
Glow Wire Test according to IEC 695-2-1 850 °C
Photobiological safety group RG 0
Protection class II
Type of protection IP65
Standards CE/CB/TÜV SÜD/EAC/RoHS

Benefits
• Evenly distributed light
• Energy savings of up to 50% (compared to luminaires that use fluorescent lamps)
• Easy installation as mounting brackets can be positioned freely on the luminaire
• Easy access to electrical terminal thanks end caps with bayonet catch
• Tool-free electrical connection due to push button connector
• 5 years guarantee

Applications
• Industrial and storage facilities
• Car parks and underpasses
• Garages
• Workshops, assembly lines

Features
• High luminous efficacy: up to 120 lm/W
• Type of protection: IP65
• Beam angle: 120°

Equipment / Accessories
• Stainless steel clamps with safety screws included
• Mounting accessories included (suspension kit, theft protection kit)
