062122 | Manufacturer: Osram | EAN: 4058075062122 | MPN: DP-COMPACT44-6500K

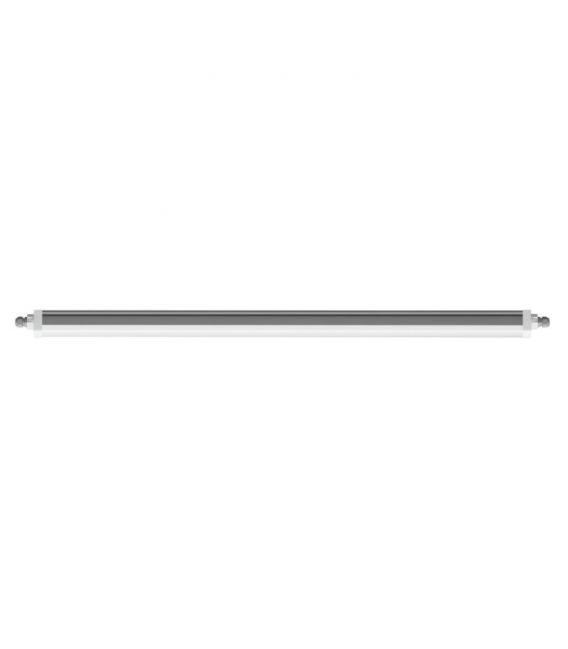

Ledvance Damp Proof Compact 44W 865 GY IP65 1200mm
Product is out of production!
More info
The Ledvance Damp Proof Compact 44W 865 GY IP65 1200mm is a high-quality lighting solution for industrial and storage facilities, car parks, garages, and workshops. With its evenly distributed cool daylight, it provides excellent visibility. Enjoy energy savings of up to 50% compared to fluorescent lamps . Installation is a breeze with freely positionable mounting brackets and easy access to electrical terminals. The tool-free push button connector ensures hassle-free electrical connection. Plus, you'll have peace of mind with the included 5-year guarantee. ledvance, damp, proof, compact, 44w, 865, gy, ip65, waterproof, luminaire
Nominal wattage 44 W
Operating mode Electronic control gear (ECG)
Nominal voltage 220 - 240 V
Power factor λ >0.90
Mains frequency 50 - 60 Hz
Output current 290 mA
Color temperature 6500 K
Luminous flux 5400 lm
Luminous efficacy 120 lm/W
Standard deviation of color matching ≤5 sdcm
Light color (designation) Cool Daylight
Color rendering index Ra>80
Beam angle 120°

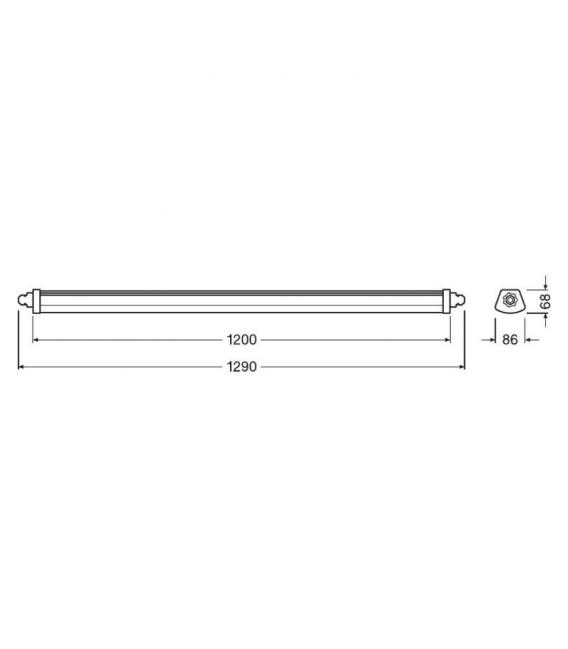

Length 1290 mm
Width 86 mm
Height 68 mm
Product weight 1160 g
Body material Polycarbonate (PC)
Housing color Gray
Product color Gray
Cover material Polycarbonate (PC)
Ambient temperature range -35…50 °C
Lifespan L70 at 25 °C 50000 h
Lifespan L80 at 25 °C 35000 h
Lifespan L90 at 25 °C 20000 h
Mounting type Suspended/Surface
Mounting location Ceiling / Wall
Dimmable No
Type of connection Terminal, 3-pin
Ball shot safe No
Led module replaceable Not replaceable
Protection class IK (shock resistance) IK08
Glow Wire Test according to IEC 695-2-1 850 °C
Photobiological safety group RG 0
Protection class II
Type of protection IP65
Standards CE/CB/TÜV SÜD/EAC/RoHS
Benefits
• Evenly distributed light
• Energy savings of up to 50% (compared to luminaires that use fluorescent lamps)
• Easy installation as mounting brackets can be positioned freely on the luminaire

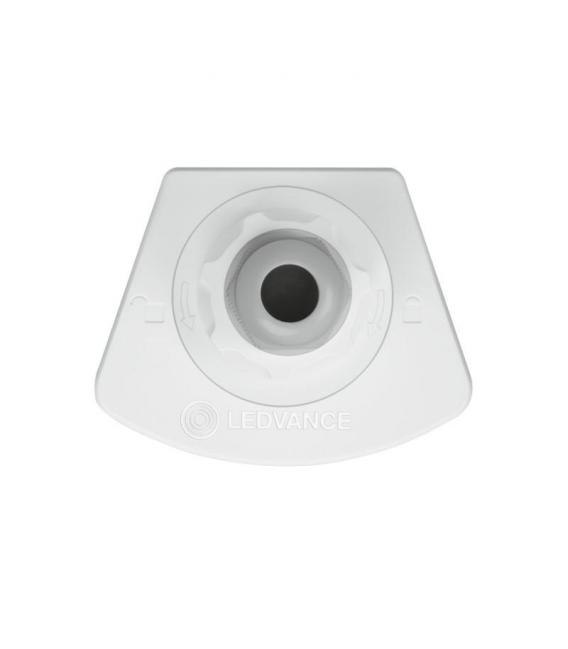

• Easy access to electrical terminal thanks end caps with bayonet catch
• Tool-free electrical connection due to push button connector
• 5 years guarantee
Applications
• Industrial and storage facilities
• Car parks and underpasses
• Garages
• Workshops, assembly lines
Features
• High luminous efficacy: up to 120 lm/W
• Type of protection: IP65
• Beam angle: 120°
Equipment / Accessories
• Stainless steel clamps with safety screws included
• Mounting accessories included (suspension kit, theft protection kit)
