611130 | Manufacturer: Philips | EAN: 8711500611130 | MPN: 927914584071
GX24 CFL master PL 26W 840 2P compact fluorescent lamp design
More info
Cap-Base GX24d-3
Cap-Base Information 2P
Life to 10% failures EM 6500 h
Life to 50% failures EM 10000 h
Color Code 840 [CCT of 4000 K]
Color Rendering Index 82 Ra8
Color Designation Cool White
Color Temperature 4000 K
Luminous Flux EM 25 °C, Rated 1725 lm
Luminous Flux EM 25 °C, Nominal 1800 lm
Luminous Efficacy Rated EM 25 °C 66 (min) lm/W
Design Temperature 28 C
Chromaticity Coordinate X 380 -
Chromaticity Coordinate Y 379 -
Lamp Wattage EM 25 °C, Nominal 26 W
Lamp Wattage EM 25 °C, Rated 26 W
Lamp Voltage EM 25 °C 100 V
Lamp Current EM 25 °C 0.335 A
Dimmable No
Energy Efficiency Label (EEL) B
Mercury (Hg) Content 1.4 mg
Energy consumption kWh/1000 h 32 kWh

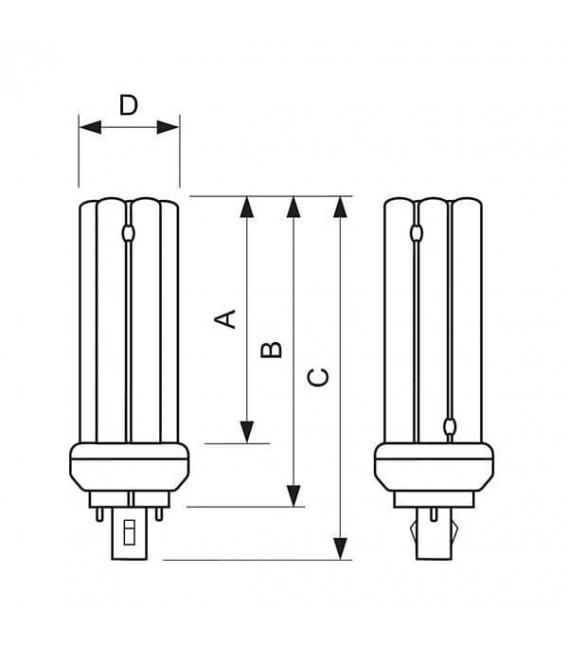

Base Face to Base Face A 86.7 (max) mm
Insertion Length B 111 (max) mm
Overall Length C 134.2 (max) mm
Diameter D 41 (max) mm
Optimal light performance for short or long operation per switch-on
• Substantially more light (about 15% more) per light point than with other similar shapes
• Multiple light color choice
• Good color rendering (CRI > 80)
Features
• 2-pin base with a housing incorporating the special instant starter and capacitor
• Philips’ bridging technology applied
• Fluorescent tri-phosphor technology
• Low light depreciation over lamp life
• Fast light run-up
Applications
• Designed for general or supplementary lighting in professional and semi-professional environments
• Ideal for use in recessed or surface mounted downlighters, wall units
