G8 mastercolour CDM TC 35W 842 premium lamp

Illuminate your space with the G8.5 Lamp MasterColour CDM-TC-35W 842, a standout in our metal halide lamps collection. Experience superior lighting quality today

Cap-Base G8.5
Bulb T14 [T 14 mm]
Bulb Material UV-Block Quartz
Bulb Finish Clear
Operating Position any [Any or Universal (U)]
Life to 50% failures EL 12000 h
Color Code 842 [CCT of 4200 K]
Color Rendering Index 85 Ra8
Color Designation Cool White
Color Temperature 4200 K
Color Temperature Technical 4200 K
Luminous Flux Lamp EL 3100 lm
Luminous Efficacy Lamp EL 79 lm/W
Lumen Maintenance EL 2000 h 85%
Chromaticity Coordinate X 0.374 -
Chromaticity Coordinate Y 0.369 -
Lamp Voltage 85 V
Lamp Current EL 0.46 A
Ignition Time 30 (max) s
Run-up time 90% 3 (max) min
Re-ignition Time [min] 15 (max) min
Dimmable No

Energy Efficiency Label (EEL) A+
Mercury (Hg) Content 2.7 mg
Energy consumption kWh/1000 h 41 kWh
Damage Factor D/fc 0.5 (max) -
PET (NIOSH) 8 (min) h500 lx
Pinch Temperature 300 (max) °C
Bulb Temperature 500 (max) °C

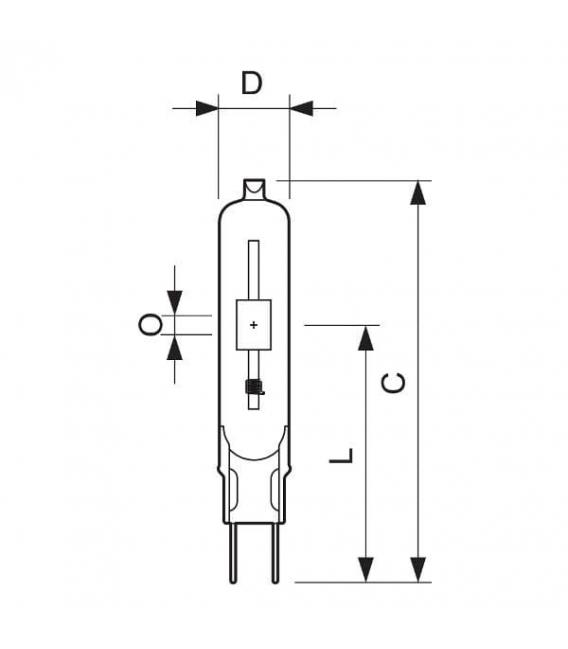

Overall Length C 85 (max) mm
Diameter D 15 (max) mm
Light Center Length L 51 (min), 52 (nom), 53 (max) mm
Arc Length O 5 mm
Light Center Length L [inch] 2 in
Overall Length C [inch] 3.34375 (max) in
Diameter D [inch] 0.5 in
Beautiful sparkle, reliable life
• Long lamp life compared with incandescent and halogen lamps
• UV-Block quartz outer bulb for reduced fading risks
• Stable color impression over lifetime
• High lamp efficacy results in low operating costs and low heat generation (which enhances comfort for shoppers and staff)

Features
• Crisp white light
• Superior color quality
• Allows very small-size luminaires designs that give high beam intensities

Applications
• Accent lighting display lighting with sparkling effect
• General and decorative lighting
