CorePro LED PLC 5W 830 4P G24q lamp G24 for commercial and residential

Cap-Base G24Q-1 [ G24q-1]
Nominal Lifetime 30000 h
Switching Cycle 50000 ×
Color Code 830 [ CCT of 3000 K]
Luminous Flux 475 lm
Luminous Flux (Rated) 475 lm
Correlated Color Temperature 3000 K
Color Consistency <6
Color Rendering Index 83
LLMF At End Of Nominal Lifetime 70%
Input Frequency 30000 - 80000 Hz
Power (Rated) 4.5 W
Lamp Current (Max) 260 mA
Lamp Current (Min) 150 mA
Starting Time 0.5s
Warm Up Time to 60% Light 0.5s
Power Factor 0.9
Voltage 20 - 50 V
T-Ambient (Max) 35 °C
T-Ambient (Min) –20 °C
T-Storage (Max) 65 °C
T-Storage (Min) –40 °C
T-Case Maximum 60 °C
Dimmable No
Product Length 100 mm
Energy Saving Product Yes
Energy Efficiency Label (EEL) A+
Approval Marks TUV, CE marking, RoHS compliance, KEMA Keur certificate
Energy Consumption kWh/1000 h 6 kWh

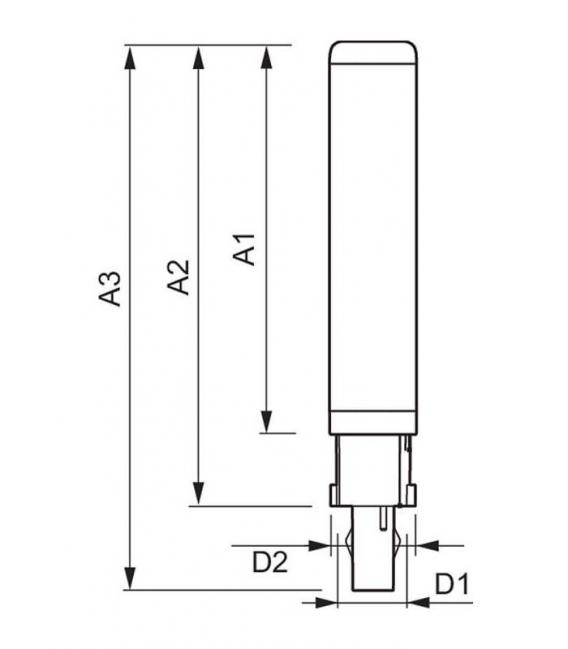

Base Face to Base Face A1 95.8 (max) mm
Insertion Length A2 115 (max) mm
Overall Length A3 130.6 (max) mm
Diameter D1 24.3 (max) mm
Diameter D2 28.4 (max) mm

Benefits
• Reduced operational cost thanks to lower energy consumption than conventional PLC lamps, as well as lower maintenance cost thanks to 2-3 times longer lifetime than conventional lamps
• Simple lamp-for-lamp replacement, re-using the existing fixture without major modifications, using a similar PLC form-factor
• Fastest and easiest way to upgrade existing luminaires to Led technology

Features
• Shatter-proof plastic
• High quality of light, no flickering or stroboscoping effect
• Instant 100% light
• Rotating end-caps
• Choice of 3000 K and 4000 K

Applications
• CorePro Led PLC lamps are the ideal upgrade for downlights in a wide range of applications. These include reception areas, meeting rooms, corridor and hallways in offices, retail stores, hospitality venues and home applications.
Warning & Safety
NOTES: The overall energy efficiency and light distribution of any installation that uses these lamps are determined by the design of the installation.

General safety informations
