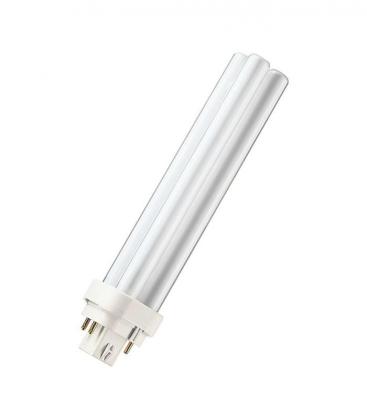

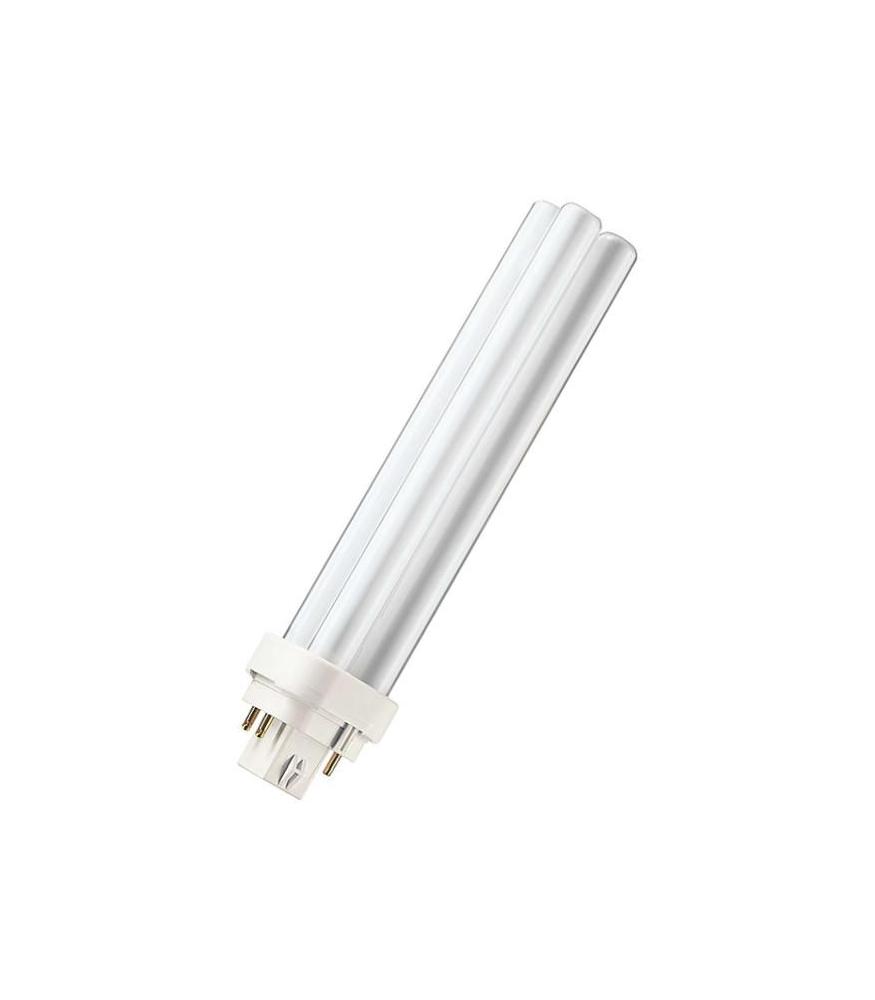

CFL master PL 26W 840 4P xtra compact fluorescent lamp G24 base

Philips CFL master PL 26W 840 4P xtra compact fluorescent lamp G24 base C. Illuminate your space with the Master PL-C 26W 840 4P xtra compact energy-saving lamp. Efficient and bright, perfect for G24 sockets.

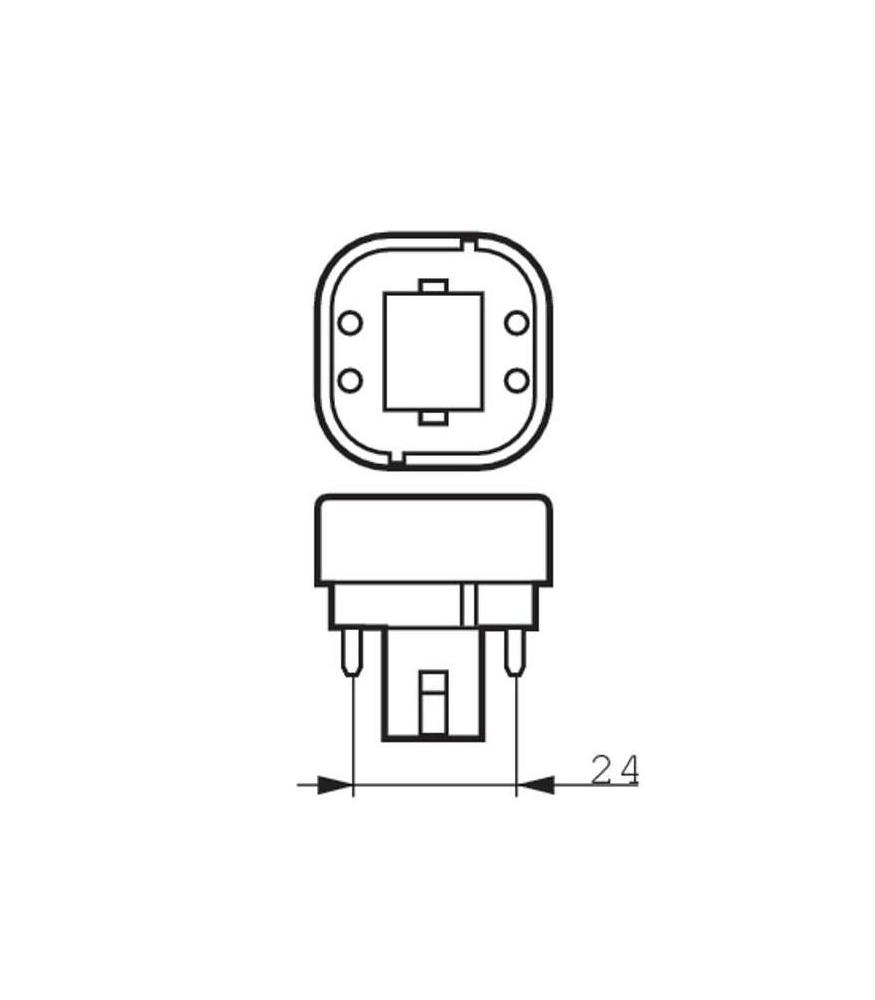

Cap-Base G24Q-3 [ G24q-3]
Cap-Base Information 4 Pins
Life To 50% Failures Preheat 33000 h
LSF Preheat 2000 h Rated 99%
LSF Preheat 4000 hRated 98%
LSF Preheat 6000 hRated 97%
Color Code 840 [ CCT of 4000 K]
Luminous Flux 1800 lm
Luminous Flux (Rated) 1800 lm
Color Designation Cool White (CW)
Chromaticity Coordinate X 380
Chromaticity Coordinate Y 380
Correlated Color Temperature 4000 K
Luminous Efficacy (rated) 75 lm/W
Color Rendering Index 82
LLMF 2000 h Rated 92%
LLMF 4000 hRated 88%
Power (Rated) 26 W
Lamp Current 0.300 A
Design Temperature 28 °C
Dimmable Yes
Energy Efficiency Label (EEL)A
Mercury (Hg) Content 3 mg
Energy consumption kWh/1000 h 29 kWh

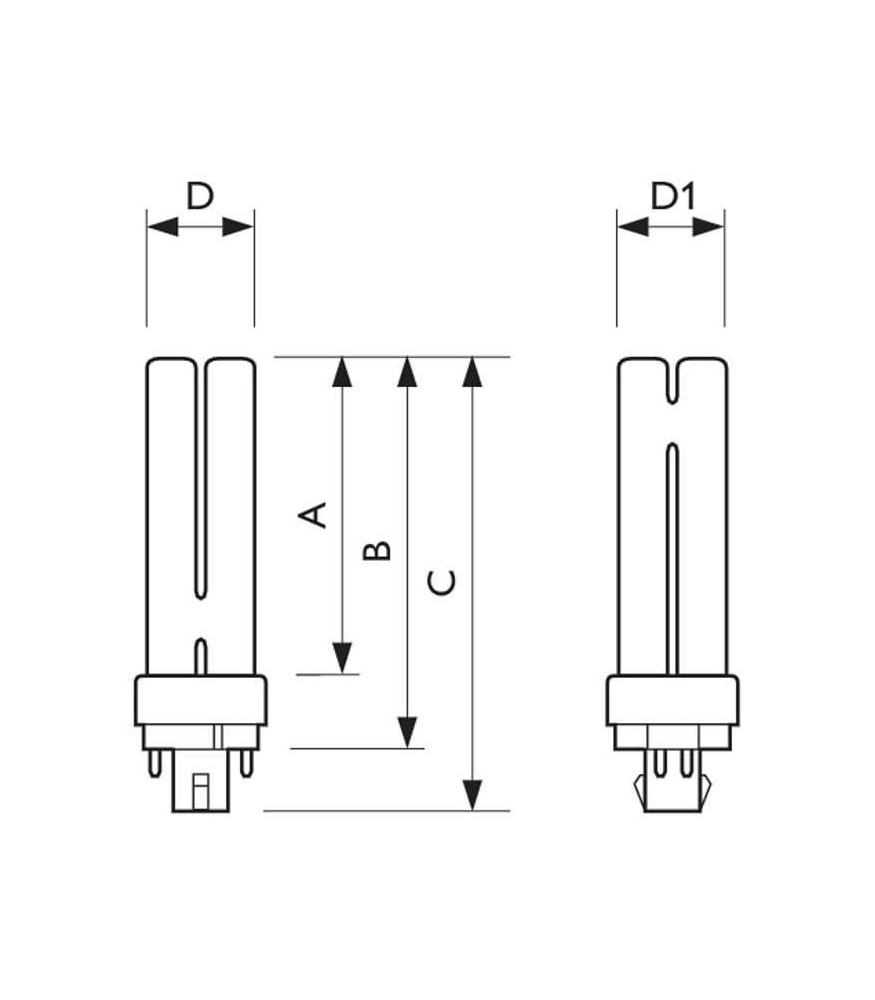

Base Face to Base Face A 130.7 (max) mm
Insertion Length B 149 (max) mm
Overall Length C 163.9 (max) mm
Diameter D 27.1 (max) mm
Diameter D1 27.1 (max) mm
MASTER PL-C Xtra is an efficient compact fluorescent lamp, typically used in general downlights for retail, hospitality and office applications. MASTER PL-C Xtra lamps furthermore provide significantly lower operating costs thanks to their lifetime, which is more than double that of a standard MASTER PL-C lamp, and their very low early failure rate. The original Philips-invented bridge technology guarantees optimum performance in the application, enabling more light and higher efficacy than the bended technology. The 4-pin version is designed for operation on electronic HF control gear with integrated pre-heat and is provided with a plug-in/pull-out lamp base.

Benefits
• Less hassle and lower maintenance costs and facilitating the change from spot to group replacement

Benefits
• Optimal light performance for long operation per switch-on
• Multiple light color choice
• Good color rendering (CRI > 80)
• Dimming possible down to 30%

Features
• 4-pin base
• Fluorescent tri-phosphor technology
• Extra long lifetime and less early failures
• Low light depreciation over lamp life

Applications
• Designed for general or supplementary lighting in professional environments
• Recessed or surface-mounted downlighters, wall units, table lamps and pendant lamps
• Suitable for use in applications where maintenance costs are high (high ceilings, difficult to reach): department stores, supermarkets, warehouses, production halls and public areas
