260840 | Manufacturer: Philips | EAN: 8711500260840 | MPN: 927936083011

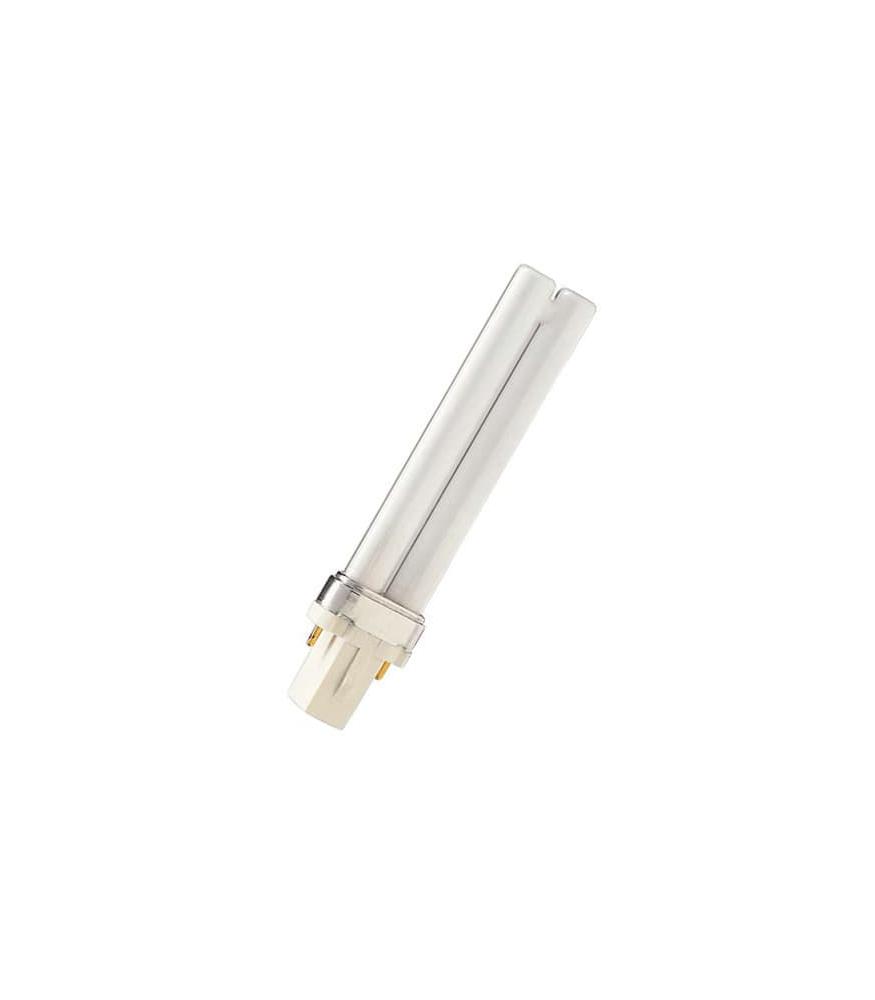

CFL master PL 9W 830 2P compact fluorescent lamp G23 2G7
Product is out of production!
The Master PL-S 9W 830 2P is an energy-saving lamp that offers efficient and low-wattage lighting. With its original Philips-invented bridge technology, it provides optimum performance, delivering more light and higher efficacy compared to bended technology. Perfect for decorative and orientation purposes, this compact fluorescent lamp is a reliable choice for hotels, restaurants, theatres, homes, signs, corridors, security lighting, and orientation lighting.
More info
Philips CFL master PL 9W 830 2P compact fluorescent lamp G23 2G7 S. Illuminate your space with the Compact Fluorescent Lamp Master PL-S 9W 830 2P. Discover efficient lighting solutions in G23 2G7 category.
Cap-Base G23
Cap-Base Information 2P
Life to 10% failures EM 6500 h
Life to 50% failures EM 10000 h
Color Code 830 [CCT of 3000 K]
Color Rendering Index 82 Ra8
Color Designation Warm White
Color Temperature 3000 K
Luminous Flux EM 25 °C, Rated 583 lm
Luminous Flux EM 25 °C, Nominal 600 lm
Luminous Efficacy Rated EM 25 °C 67 lm/W
Design Temperature 28 C
Chromaticity Coordinate X 435 -
Chromaticity Coordinate Y 401 -
Lamp Wattage 9 W
Lamp Voltage 60 V
Lamp Current 0.170 A
Dimmable No
Energy Efficiency Label (EEL) A
Mercury (Hg) Content 1.4 mg
Energy consumption kWh/1000 h 11 kWh

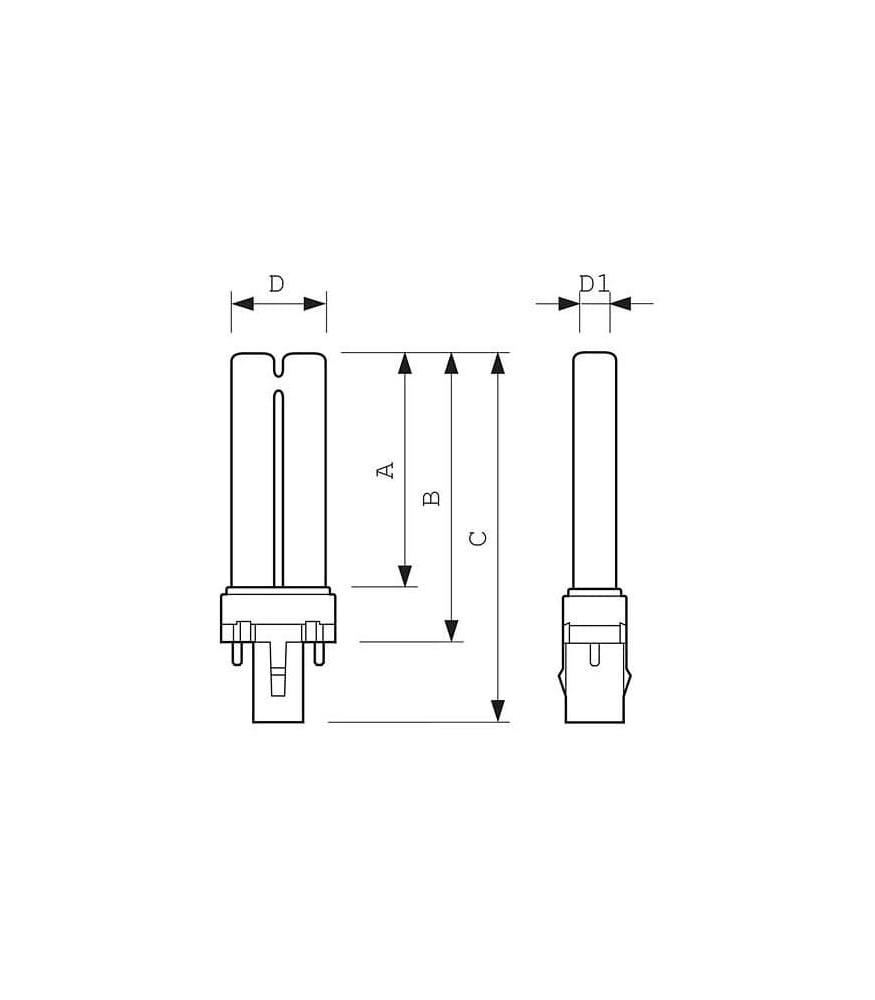

Base Face to Base Face A 129 (max) mm
Insertion Length B 145 (max) mm
Overall Length C 167 (max) mm
Diameter D 28 (max) mm
Diameter D1 13 (max) mm
Features
• 2-pin base with a housing incorporating the special instant starter and capacitor
• Fluorescent tri-phosphor technology
• Low light depreciation over lamp life
Applications
• Designed for use in hotels, restaurants, theatres and homes
• Suitable for use in signs, corridors, security and orientation lighting
| Explanation It needs ballast | yes |
| Explanation Dimmable | no |
| Explanation Energy efficiency class | A |
| Explanation Lamp holder, lamp socket | G23 |
| Explanation Wattage - (W) | 9 |
| Explanation Luminous flux - (lm) | 600 |
| Explanation Luminous efficacy - (lm / W) | 67 |
| Explanation Color temperature - (K) | 3000 |
| Explanation Light color code | 830 |
| Explanation Color rendering - (CRI) | 82 |
| Explanation Energy consumption - (kWh / 1000h) | 9 |
| Explanation Lifetime - (h) | 10000 |
| Explanation Factory packed - (pieces) | 10 |
