010571 | Manufacturer: Osram | EAN: 4050300010571 | MPN: DULUX-S-7-840
CFL TC dulux 7W 840 G23 compact fluorescent lamp base 2G7
Product is out of production!
Compact energy saving lamp TC-S Dulux S 7W 840 G23: Extremely economical with good quality of light. It has an extremely low profile and long service life, making it ideal for cost-effective creative illumination and decoration in offices, public buildings, shops, supermarkets, department stores, hotels, and restaurants.
More info
Osram CFL TC dulux 7W 840 G23 compact fluorescent lamp base 2G7 S. Illuminate your space efficiently with the Compact Fluorescent Lamp TC-S Dulux S 7W 840 G23. Discover power of energy-saving lighting in a sleek design.
Nominal wattage 7.10 W
Rated wattage 7.10 W
Nominal luminous flux 400 lm
Rated luminous flux 402 lm
Color temperature 4000 K
Light color 840
Light color as per EN 12464-1 LUMILUX Cool White
Color rendering index Ra80…89
Luminous flux at 25 °C 400 lm
Rated LLMF at 4000 h 0.78
Rated LLMF at 6000 h 0.76
Rated LLMF at 8000 h 0.75
Luminance 2.6 cd/cm²
Color rendering group 1B

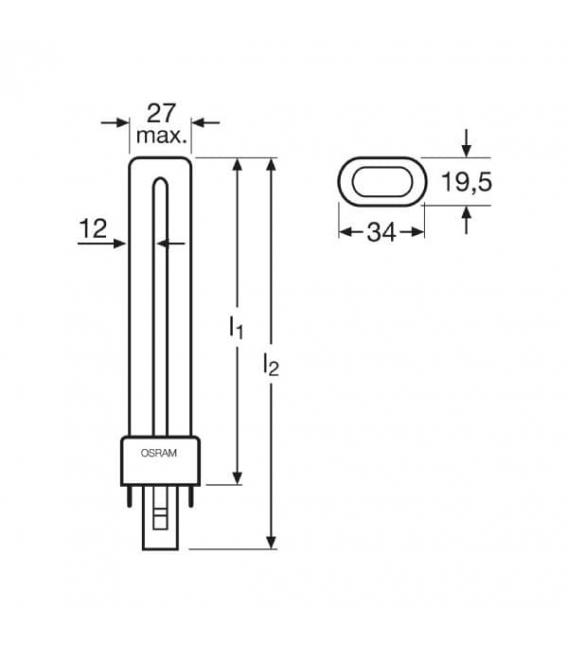

Overall length 137 mm
Tube diameter 12 mm
Length 137 mm
Length acc. to IEC standard 115 mm
Length with base excl. base pins/connection 114 mm
Rated ambient temp.w.max.luminous flux 25 °C
Nominal lamp life time 8000 h
Rated lamp life time 8000 h
Service life 6500 h
Rated lamp survival factor at 2000 h 0.98
Operation mode LLMF/LSF 50 Hz
Lifespan 10000 h
Base (standard designation) G23
Lamp mercury content 1.4 mg
Appropriate disposal acc. to WEEE Yes
Suitable for indoor Yes
Energy efficiency class B
Energy consumption 10 kWh/1000 h
Benefits
• Extremely economical
• Good quality of light
• Extremely low profile
• Long service life
• Improved maintenance
Areas of application
• Ideal for cost-effective creative illumination and decoration
• Offices, public buildings
• Shops
• Supermarkets and department stores
• Hotels, restaurants
| Explanation It needs ballast | yes |
| Explanation Dimmable | no |
| Explanation Energy efficiency class | B |
| Explanation Lamp holder, lamp socket | G23 |
| Explanation Wattage - (W) | 7 |
| Explanation Luminous flux - (lm) | 400 |
| Explanation Luminous efficacy - (lm / W) | 57 |
| Explanation Color temperature - (K) | 4000 |
| Explanation Light color code | 840 |
| Explanation Color rendering - (CRI) | 83 |
| Explanation Energy consumption - (kWh / 1000h) | 7 |
| Explanation Lifetime - (h) | 10000 |
| Explanation Factory packed - (pieces) | 10 |
