581278 | Manufacturer: Philips | EAN: 8718696581278 | MPN: 929001249902

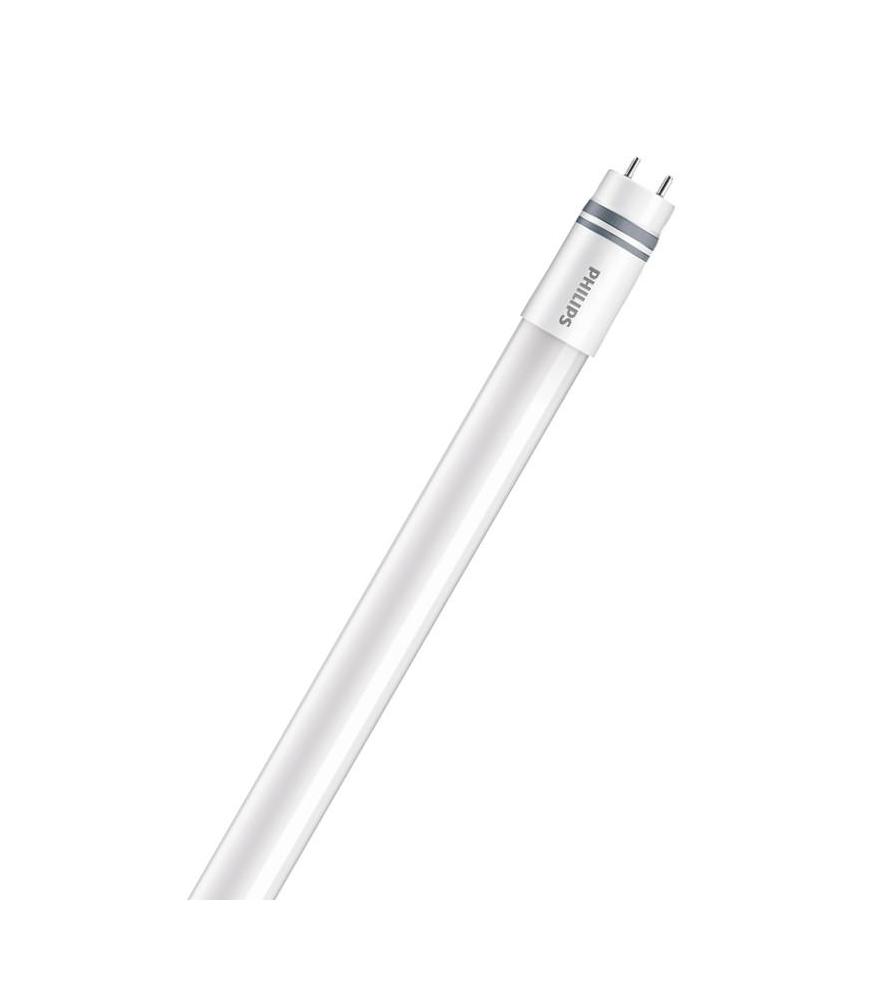

Upgrade to the CorePro Ledtube InstantFit HF and enjoy affordable, energy-saving LED lighting. With a natural lighting effect and easy installation, this tubular LED lamp is perfect for general lighting applications. Say goodbye to high costs and hello to environmentally friendly illumination. ledtube, instantfit, hf, 15w, 840, tubular, led, lamp, corepro, series

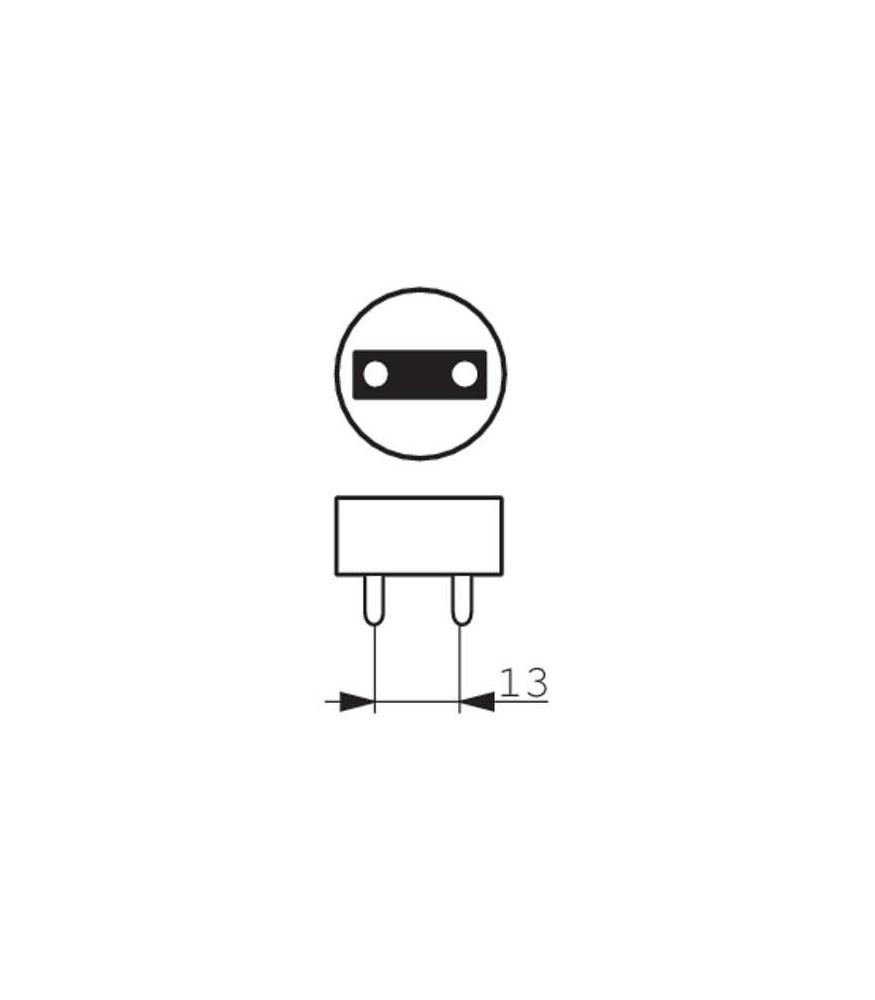

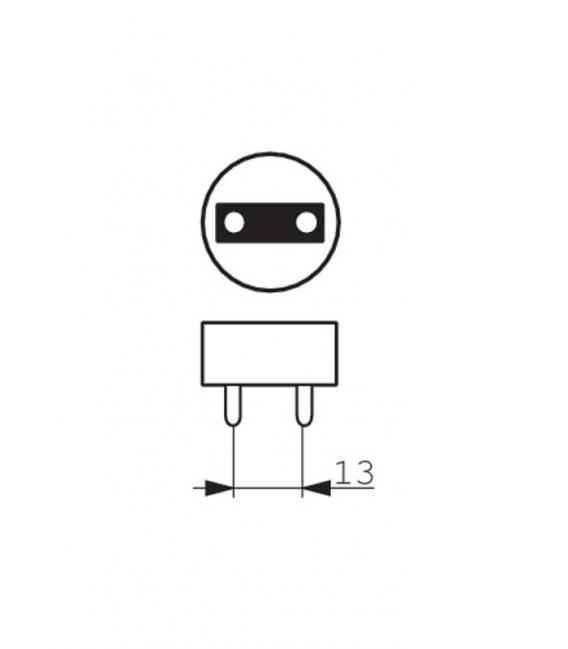

Cap-Base G13 [ Medium Bi-Pin Fluorescent]
Nominal Lifetime 30000 h
Switching Cycle 50000 ×
B50L70 30000 h
Color Code 840 [ CCT of 4000 K]
Luminous Flux 1600 lm
Luminous Flux (Rated) 1600 lm
Correlated Color Temperature 4000 K
Luminous Efficacy (rated) 106 lm/W
Color Consistency <6
Color Rendering Index 83
LLMF At End Of Nominal Lifetime 70%
Input Frequency 20000 - 75000 Hz
Power (Rated) 15 W
Lamp Current (Max) 700 mA
Lamp Current (Min) 200 mA
Starting Time 0.5s
Warm Up Time to 60% Light 0.5s
Power Factor 0.9
Voltage 30-80 V
T-Ambient (Max) 45 °C
T-Ambient (Min) –20 °C
T-Storage (Max) 65 °C
T-Storage (Min) –40 °C
T-Case Maximum 60 °C
Dimmable No
Product Length 1200 mm
Energy Saving Product Yes
Energy Efficiency Label (EEL) A+
Approval Marks TUV, CE marking, RoHS compliance, KEMA Keur certificate
Energy Consumption kWh/1000 h 19 kWh

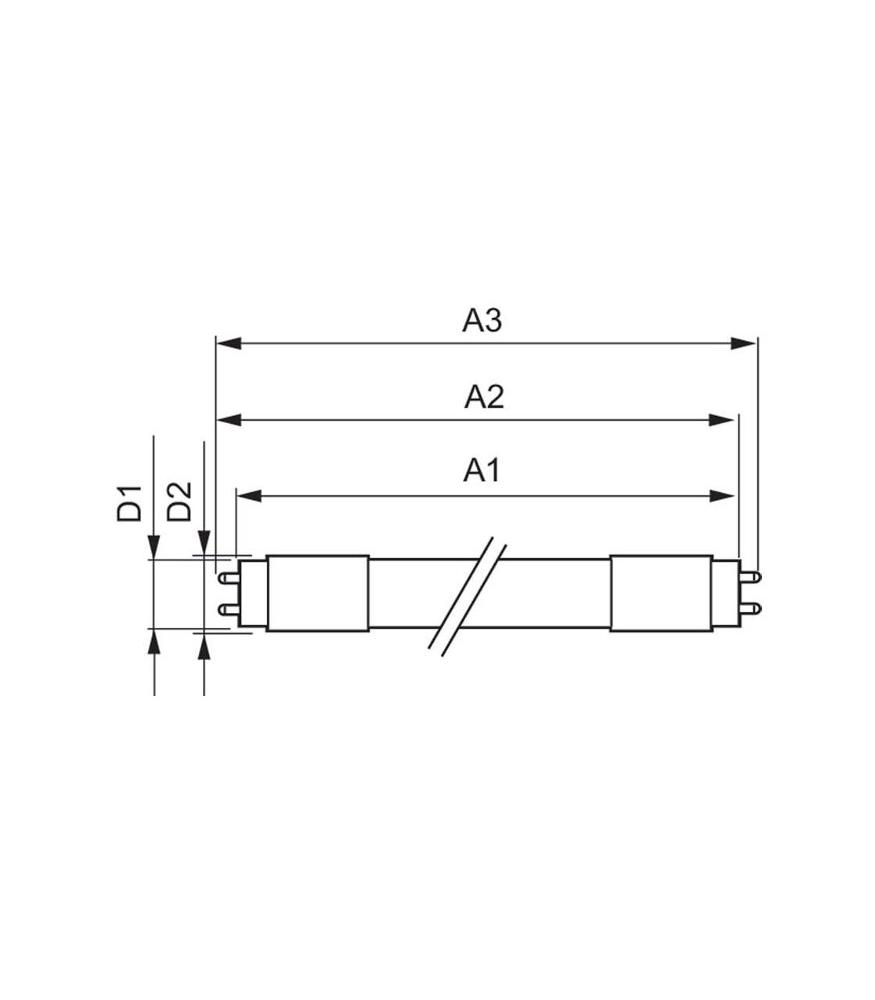

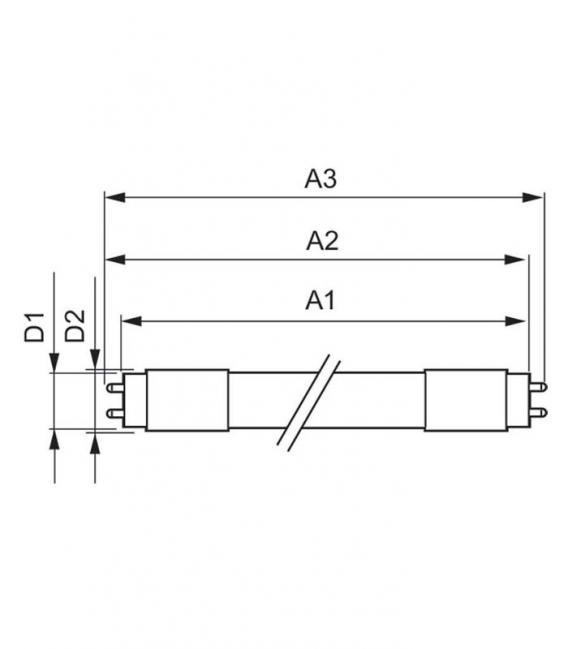

Length A1 1199.4 mm
Fixing Hole Distance A2 Length 1205.3 mm
Length A3 1213.6 mm
Mounting hole diameter D1 27.9 mm
Circular outline dimension D2 28 mm
Benefits
Benefits
• Minimizes overall lighting costs
• Offers the cheapest and easiest upgrade to Led lighting technology
Features
• High energy efficiency
• Long lifetime
• Easy installation; retrofit replacement of existing T8 lamps on electronic (HF) ballast installations
• Conventional form factor to fit into existing luminaires
• No mercury
Applications
• Parking lots and covered car parks
• Industrial facilities and warehouses
• Signage
