Fluorescent lamps

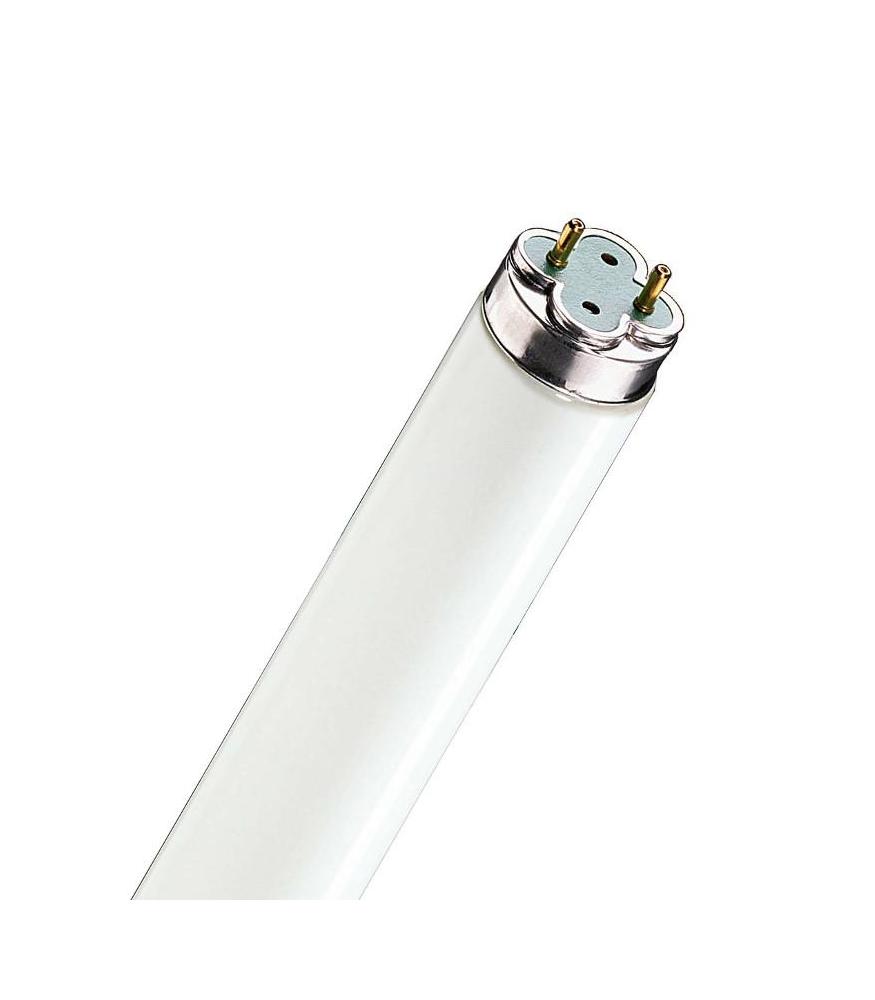

Philips Master TL-D 18W 830 G13 xtra

544988 | Manufacturer: Philips | EAN: 8711500544988 | MPN: 927980483014


10,33 €tax excl.

Price for 1 piece, excluding shipping costs!
Condition: New product
Factory Box - pieces (pcs): 25

By buying this product you can collect up to 2 loyalty points. Your cart will total 2 points, that can be converted into a voucher of 0,20 €.

-+

More info

More info

This TL-D Xtra lamp offers a longer lifetime and guarantees fewer early failures. This results in low maintenance costs and saves on expensive spot replacement. It is therefore suitable for places where lamp replacement is expensive due to high ceilings or disturbance of operations. This lamp can be operated on existing gear or dedicated HF Xtreme gear.

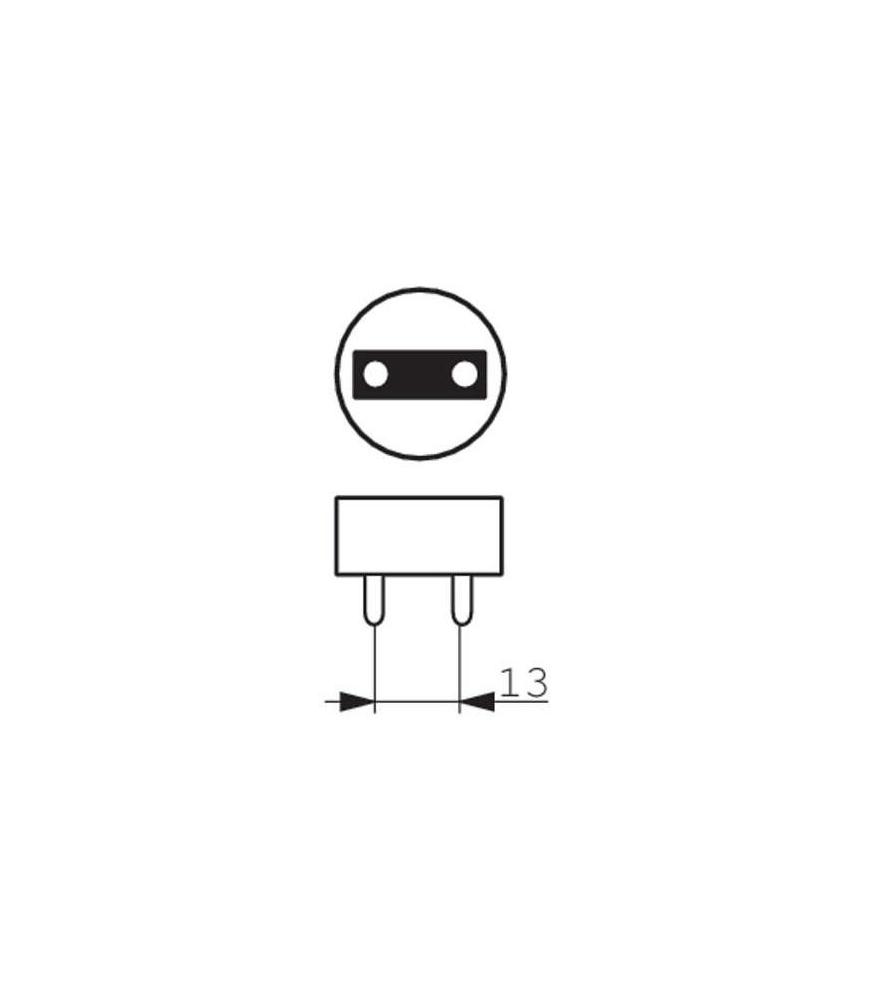

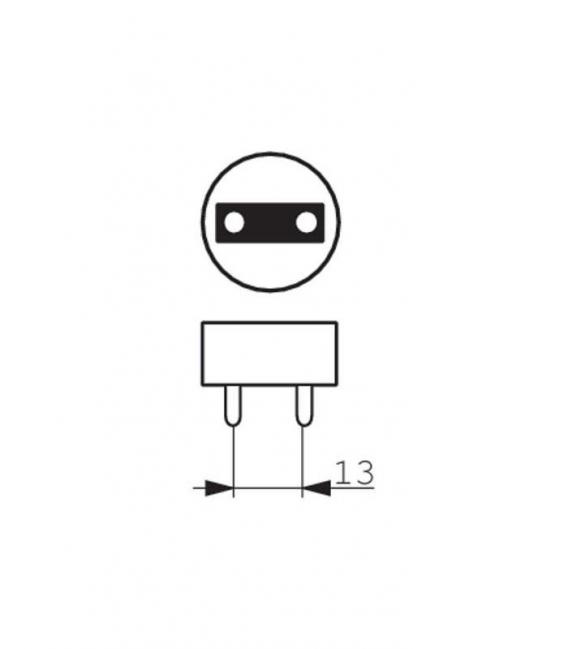

Cap-Base G13 [ Medium Bi-Pin Fluorescent]
Bulb Shape T8 [ 26 mm (T8)]
Life To 10% Failures 29500 h
Life To 50% Failures 36000 h
Life To 50% Failures Preheat 55000 h
LSF 2000 h Rated 100%
LSF 4000 hRated 99%
LSF 6000 hRated 99%
Color Code 830 [ CCT of 3000 K]
Luminous Flux 1350 lm
Luminous Flux (Rated) 1350 lm
Color Designation Warm White (WW)
Chromaticity Coordinate X 439
Chromaticity Coordinate Y 405
Correlated Color Temperature 3000 K
Luminous Efficacy (rated) 76 lm/W
Color Rendering Index 85
LLMF 2000 h Rated 96%
LLMF 4000 hRated 95%
LLMF 6000 hRated 94%
Power (Rated) 17.7 W
Lamp Current 0.370 A
Design Temperature 25 °C
Dimmable Yes
Cap-Base Information Green Plate
Energy Efficiency Label (EEL)A
Mercury (Hg) Content 3 mg
Energy Consumption kWh/1000 h 22 kWh

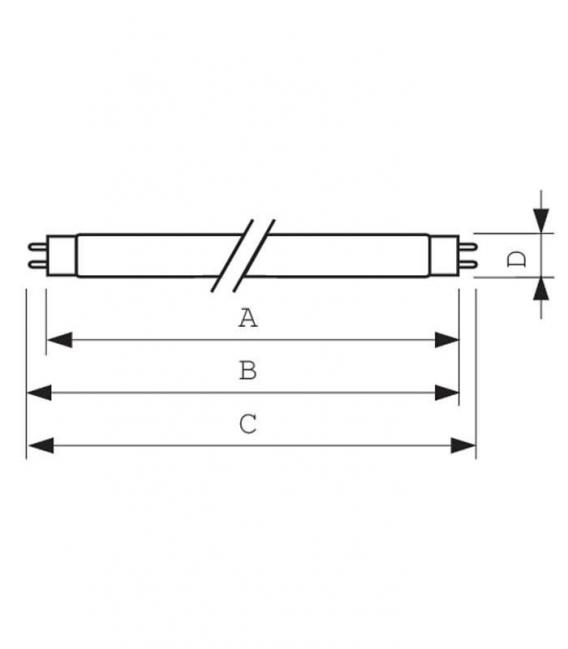

Base Face to Base Face A 589.8 (max) mm
Insertion Length B 594.5 (min), 596.9 (max) mm
Overall Length C 604 (max) mm
Diameter D 28 (max) mm
• Longer lifetime results in lower maintenance costs, less waste and disposal costs at end-of-life
• Less hassle due to fewer early failures
• Facilitating the change from spot to group replacement

Features
• Extra long lifetime; longest lifetime is achieved with specially designed Philips HF Xtreme gear
• End-cap has an x-shaped green bottom plate to distinguish the lamp from other fluorescent lamps
• Low mercury dose (3 mg)
Application
• Suitable for use in applications where maintenance costs are high (high ceilings, difficult to reach): department stores, supermarkets, warehouses, production halls and public areas like car parks and railway stations

It needs ballastYes
DimmableYES, with DIMM ECG
Energy Efficiency ClassA
Base/SockelG13
Wattage - Watt (W)18
Luminous flux - Lumen (lm)1350
Luminous Efficacy Lamp - (lm / W)76
Light color temperature - Kelvin (K)3000
Light color code830
Color rendering index - CRI85
Energy consumption - (kWh / 1000h)22
Lifetime - hours (h)55000
Factory Box - pieces (pcs)25
