Master TL 36W 830 G13 super 80 fluorescent lamps

Illuminate your space with the Fluorescent Lamp Master TL-D 36W 830 G13 Super 80. Enjoy bright, energy-efficient lighting for any room.

Cap-Base G13 [Medium Bi-Pin Fluorescent]
Bulb T8 [26 mm]
Life to 10% failures EM 12000 h
Life to 10% fail Preheat EL,3h 17000 h
Life to 10% fail Brez predgretja EL,3h 10000 h
Life to 50% failures EM 15000 h
Life to 50% fail Preheat EL,3h 20000 h
Life to 50% fail Brez predgretja EL,3h 12000 h
Color Code 830 [CCT of 3000 K]
Color Rendering Index 85 Ra8
Color Designation Warm White
Color Temperature 3000 K
Luminous Flux EM 25 °C, Rated 3350 lm
Luminous Flux EM 25 °C, Nominal 3350 lm
Luminous Efficacy Rated EM 25 °C 93 lm/W
Luminance Average EM 1.25 cd/cm²
LLMF EM 2000 h Rated 96%
LLMF EM 4000 h Rated 95%
LLMF EM 6000 h Rated 94%
Design Temperature 25 C
Chromaticity Coordinate X 440 -
Chromaticity Coordinate Y 403 -
Lamp Wattage 36 W
Lamp Wattage EM 25 °C, Nominal 36 W
Lamp Wattage EM 25 °C, Rated 36 W
Lamp Voltage EM 25 °C 103 V
Lamp Current EM 25 °C 0.440 A
Dimmable Yes
Energy Efficiency Label (EEL)A
Mercury (Hg) Content 2 mg
Energy consumption kWh/1000 h 42 kWh

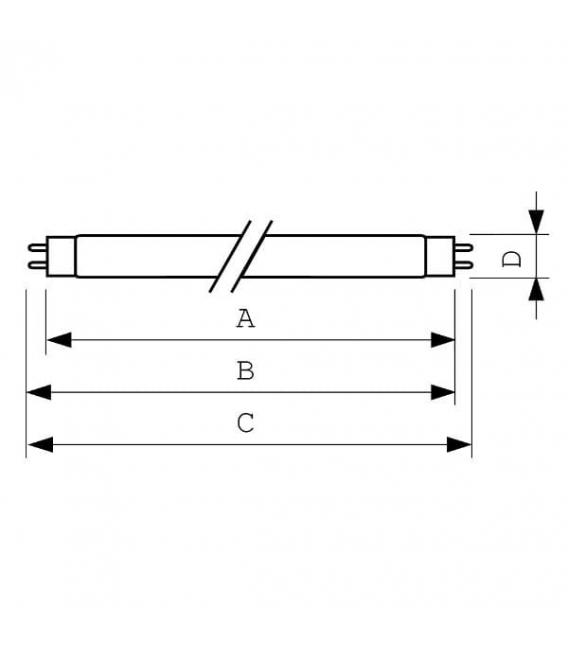

Base Face to Base Face A 1199.4 (max) mm
Insertion Length B 1204.1 (min), 1206.5 (max) mm
Overall Length C 1213.6 (max) mm
Diameter D 28 (max) mm

Benefits
• Good color rendering
• Relatively high efficacy, both initially and during lamp lifetime, with high lumen maintenance
• Create atmospheres from warm white to cool daylight

Features
• Highly efficient 3-band fluorescent coating
• High initial light output compared with standard colors
• Low mercury dose
• Can be used with conventional or electronic gear
• Higher efficacy is achieved with electronic gear

Applications
• Suitable for use in a wide range of luminaires for TL-D fluorescent lamps for "human" applications such as schools, offices, shops, factory halls etc.
