Fluorescent lamps T12
Osram L SA 65W 640 G13 SA Type T12
0018201 | Manufacturer: Osram | EAN: 4050300018201 | MPN: L SA 65 W/640
More info
Tubular fluorescent lamps 38 mm, for resonance double-choke circuits, with G13 base. Stable and suitable for outdoor lighting or fixtures with little thermal insulation.
Nominal wattage 65 W
Rated lamp efficacy (standard condition) 74 lm/W
Rated wattage 65 W
Color rendering index Ra≥60
Rated luminous flux 4800 lm
Luminous flux at 25 °C 4800 lm
Light color 740
Color temperature 4000 K
Nominal luminous flux 4800 lm
Light color (designation) Cold White
Rated LLMF at 2000 h 0.85
Rated LLMF at 4000 h 0.75
Rated LLMF at 6000 h 0.67
Rated LLMF at 8000 h 0.60

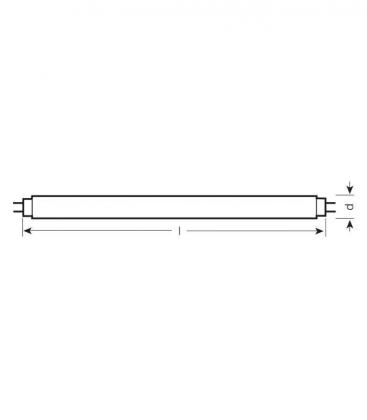

Tube diameter 38 mm
Length 1500 mm
Length with base excl. base pins/connection 1500 mm
Diameter 38 mm
Maximum diameter 38 mm
Rated ambient temp.w.max.luminous flux 25 °C
Service life 4000 h
Lifespan 10000 h
Rated lamp survival factor at 2000 h 0.99
Rated lamp survival factor at 4000 h 0.98
Rated lamp survival factor at 6000 h 0.67
Rated lamp survival factor at 8000 h 0.60
Operation mode LLMF/LSF 50 Hz
Rated lamp life time 7500 h
Nominal lamp life time 7500 h
Base (standard designation) G13
Mercury content 3 mg
Appropriate disposal acc. to WEEE Yes
Suitable for indoor Yes
Energy efficiency class A
Energy consumption 76 kWh/1000 h
Applications
• Street lighting
• Industry
• Outdoor applications only in suitable luminaires
Features
• External ignition strip for improved ignition at low ambient temperatures
• Operation without starter
| It needs ballast | Yes |
| Dimmable | YES, with DIMM ECG |
| Energy Efficiency Class | A |
| Base/Sockel | G13 |
| Wattage - Watt (W) | 65 |
| Luminous flux - Lumen (lm) | 4800 |
| Luminous Efficacy Lamp - (lm / W) | 73 |
| Light color temperature - Kelvin (K) | 4000 |
| Light color code | 640 |
| Color rendering index - CRI | 60 |
| Energy consumption - (kWh / 1000h) | 76 |
| Lifetime - hours (h) | 10000 |
| Factory Box - pieces (pcs) | 25 |
