727480 | Manufacturer: Philips | EAN: 8711500727480 | MPN: 928048501505
TL-D 36W 15 G13 red
This TL-D lamp (tube diameter 26 mm) helps to create special effects and atmospheres or attract attention by using red, green, blue and yellow light. Apart from using the specific colors, it is also possible to mix the colors to create white light. This lamp offers a high light output, thanks to the use of basic powders. Application areas include shops and showrooms, bars and restaurants, demonstration areas, sign lighting and entertainment stores.
More info
Cap-Base G13 [Medium Bi-Pin Fluorescent]
Bulb T8 [26 mm]
Life to 10% failures EM 12000 h
Life to 50% failures EM 15000 h
Color Code 150
Color Designation Red
Luminous Flux EM 25 °C, Rated 55 lm
Luminous Flux EM 25 °C, Nominal 55 lm
LLMF EM 2000 h Rated 85%
Design Temperature 25 C
Chromaticity Coordinate X 718 -
Chromaticity Coordinate Y 282 -
Lamp Wattage 36 W
Lamp Wattage EM 25 °C, Nominal 36 W
Lamp Wattage EM 25 °C, Rated 36 W
Lamp Voltage EM 25 °C 103 V
Lamp Current EM 25 °C 0.440 A
Dimmable Yes
Energy Efficiency Label (EEL) E
Mercury (Hg) Content 13 mg
Energy consumption kWh/1000 h 51 kWh

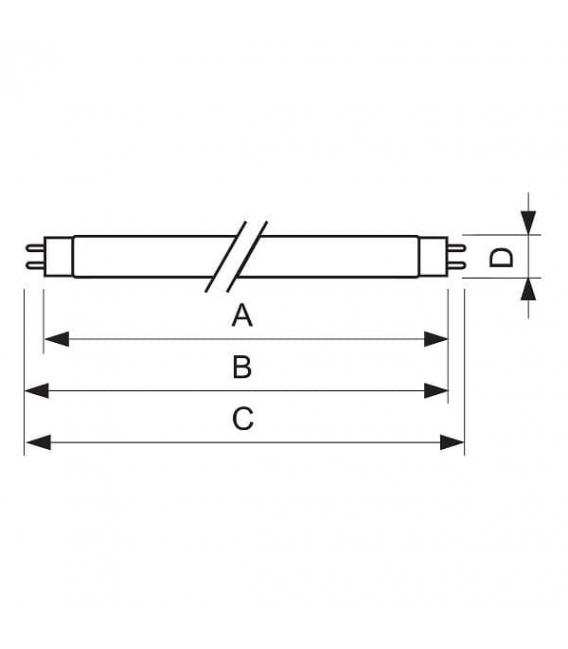

Base Face to Base Face A 1199.4 (max) mm
Insertion Length B 1204.1 (min), 1206.5 (max) mm
Overall Length C 1213.6 (max) mm
Diameter D 28 (max) mm
Features
• The fluorescent powders of Red and Yellow lamps are mixed with a pigment to filter out unwanted wavelengths
• Can be used with conventional or electronic gear
• Depending on the control gear, dimming is possible
Applications
• For color effects in stage lighting, shop-window lighting, festive lighting, bars, dance halls etc.
