080119 | Manufacturer: Osram | EAN: 4058075080119 | MPN: SURFACE-C-400-24W-4000K-SENSOR
Product is out of production!

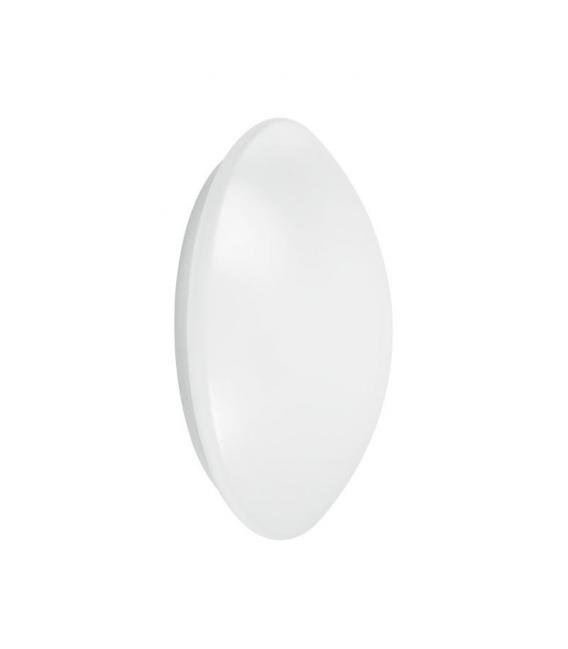

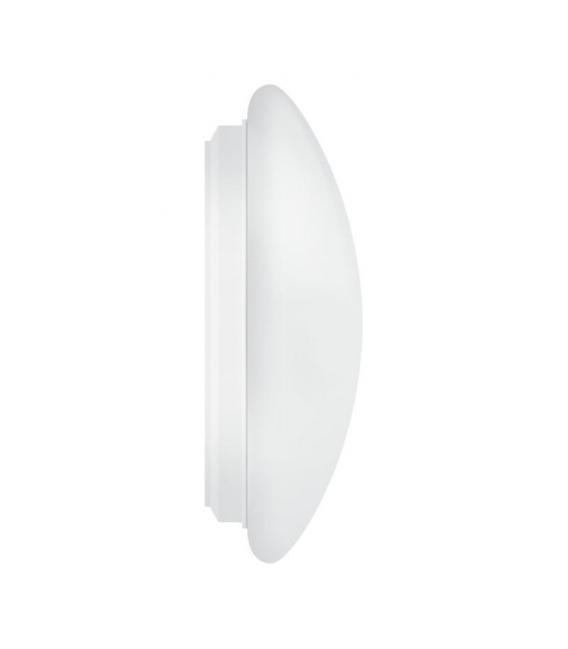

Osram Ledvance surface circular LED 4000K 24W 220V WT IP44 sensor 400 Illuminate your space with 24 W of energy efficient controlled lighting. SF Circular Sensor LED wall and ceiling luminaire with IP44 protection type. High luminous efficiency, energy saving, easy quick installation.
Nominal wattage 24 W
Operating mode Electronic control gear (ECG)
Nominal voltage 220 - 240 V
Power factor λ >0.5
Mains frequency 50 - 60 Hz
Color temperature 4000 K
Luminous flux 1920 lm
Luminous efficacy 80 lm/W
Standard deviation of color matching ≤5 sdcm
Light color (designation) Cool White
Color rendering index Ra>80

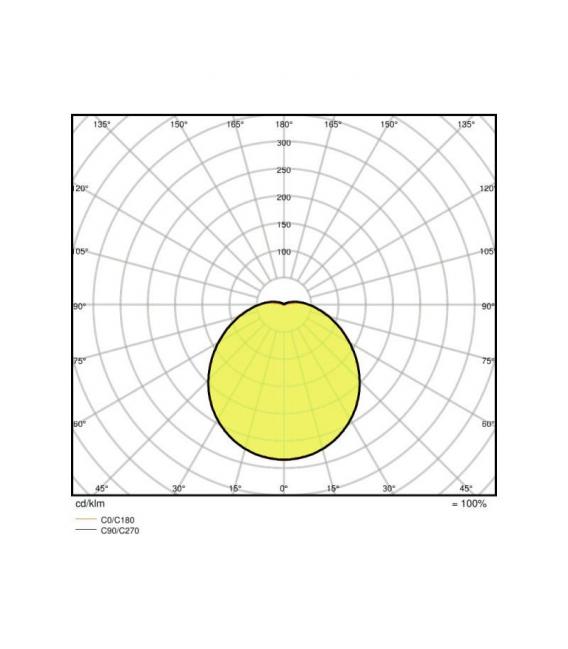

Beam angle 120°
Type of sensor Motion / Light
Sensor technology Microwellen
Sensor detection angle 110°
Detection range of motion sensor 8 m
Detection threshold of daylight sensor 25lx
Sensor controlled switching time 5 s/1 min/3 min/10 min

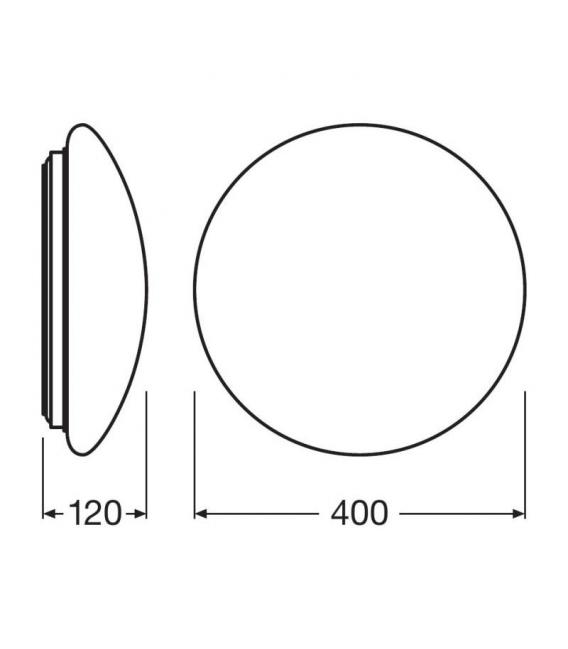

Diameter 400 mm
Height 120 mm
Product weight 752 g
Body material Steel
Housing color White
Product color White
Ambient temperature range –20…40 °C
Lifespan L70 at 25 °C 30000 h
Lifespan L80 at 25 °C 30000 h
Lifespan L90 at 25 °C 15000 h
Mounting type Surface
Mounting location Ceiling / Wall
Dimmable No
Type of connection Terminal, 3-pin
Led module replaceable Not replaceable
Protection class IK (shock resistance) IK03
Photobiological safety group RG 0
Protection class I
Type of protection IP44
Standards CE/CB/TÜV SÜD/EAC/RoHS
Benefits
• Easy adjustment of sensor range, daylight detection and hold time
• High luminous efficacy
• Energy savings of up to 55% compared to luminaires that use CFL
• Easy and quick installation
• Very homogenous light
• Clear cover protects the reflector against dust and contact
• 3 years guarantee
Applications
• Corridors
• Stairways
• Bathrooms
• Foyers
Features
• High frequency sensor for daylight and motion detection
• Beam angle: 120°
• Type of protection: IP44
• Impact resistance: IK03
• Metal housing, PMMA cover
• Ambient temperature in operation: –20…+40 °C
Explanation Dimmable | no |
Explanation Lamp Included | yes |
Explanation Type of connection | Terminal, 3-pole |
Explanation Energy efficiency class | A+ |
Explanation Voltage - (V) | 220 |
Explanation Wattage - (W) | 24 |
Explanation Luminous flux - (lm) | 1920 |
Explanation Luminous efficacy - (lm / W) | 80 |
Explanation Color temperature - (K) | 4000 |
Explanation Light color code | 840 |
Explanation Color rendering - (CRI) | 80 |
Explanation Beam angle - (°) | 120 |
Explanation Energy consumption - (kWh / 1000h) | 24 |
Explanation Protection mark - (IPXX) | 44 |
Explanation Lifetime - (h) | 30000 |
Explanation Type of installation | Surface mounted |
Explanation Factory packed - (pieces) | 10 |
