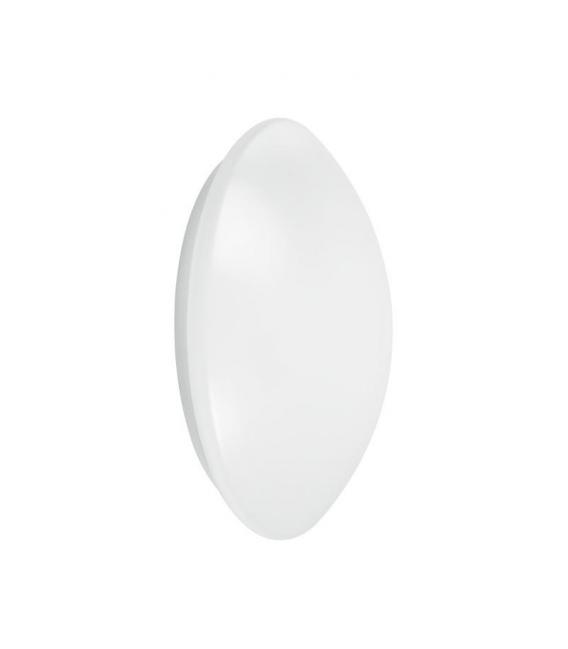

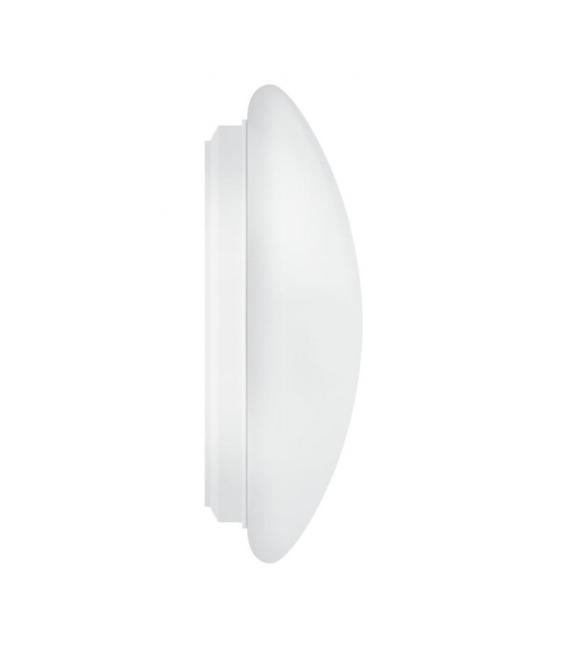

Ledvance surface circular LED 400 240V 220V 3000K WT IP44 220 ceiling

Osram Ledvance surface circular LED 400 240V 220V 3000K WT IP44 220 ceiling 24W. Led Wall and ceiling luminaire SF Circular with type of protection IP44. High luminous efficacy, energy savings, easy quick installation.

Nominal wattage 24 W
Operating mode Electronic control gear (ECG)
Nominal voltage 220 - 240 V
Power factor λ >0.5
Mains frequency 50 - 60 Hz
Color temperature 3000 K
Luminous flux 1920 lm
Luminous efficacy 80 lm/W
Standard deviation of color matching ≤5 sdcm
Light color (designation) Warm White
Color rendering index Ra>80

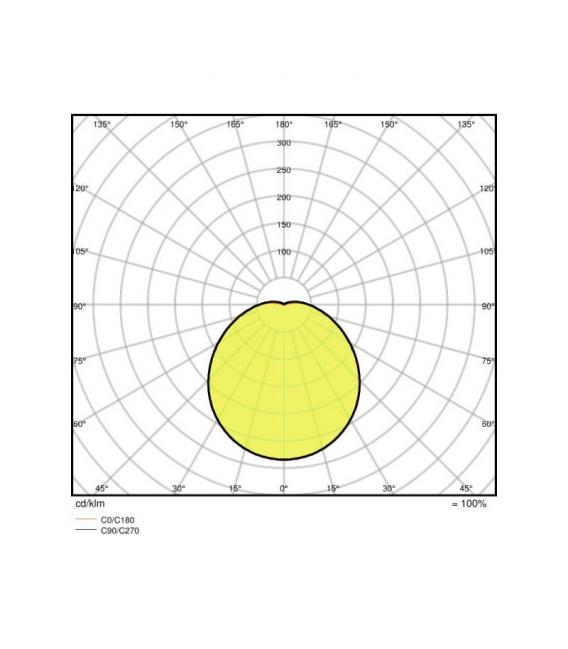

Beam angle 120°

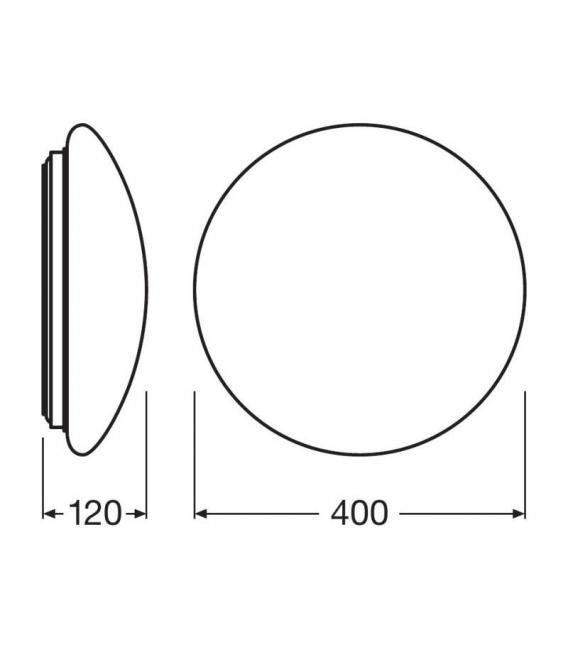

Diameter 400 mm
Height 120 mm
Product weight 708g
Body material Steel
Housing color White
Product color White
Ambient temperature range –20…40 °C
Lifespan L70 at 25 °C 30000 h
Lifespan L80 at 25 °C 30000 h
Lifespan L90 at 25 °C 15000 h
Mounting type Surface
Mounting location Ceiling / Wall
Dimmable No
Type of connection Terminal, 3-pin
Led module replaceable Not replaceable
Protection class IK (shock resistance) IK03
Photobiological safety group RG 0
Protection class I
Type of protection IP44
Standards CE/CB/TÜV SÜD/EAC/RoHS

Benefits
• High luminous efficacy
• Energy savings of up to 55% compared to luminaires that use CFL
• Easy and quick installation
• Very homogenous light
• Clear cover protects the reflector against dust and contact
• 3 years guarantee

Applications
• Corridors
• Stairways
• Bathrooms
• Foyers

Features
• Beam angle: 120°
• Type of protection: IP44
• Impact resistance: IK03
• Metal housing, PMMA cover
• Ambient temperature in operation: –20…+40 °C
