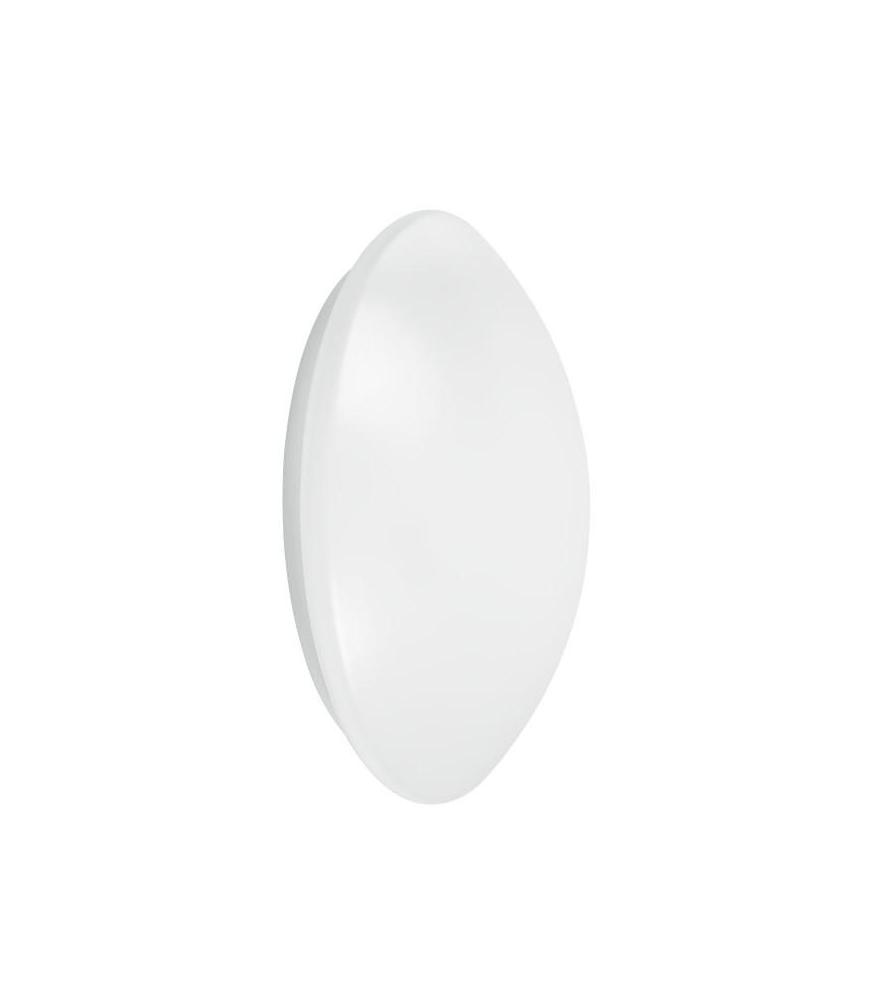

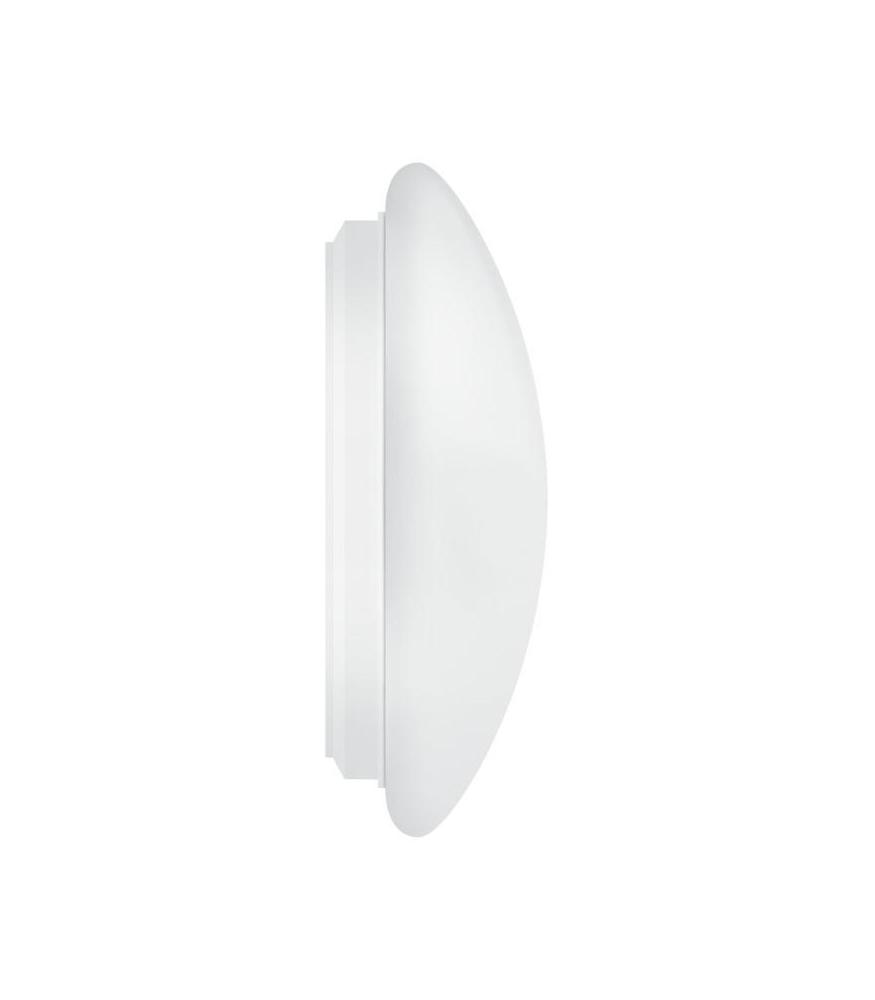

Ledvance Surface Circular LED 400 24W 220V 3000K WT IP44

Nominal wattage 24 W
Operating mode Electronic control gear (ECG)
Nominal voltage 220 - 240 V
Power factor λ >0.5
Mains frequency 50 - 60 Hz
Color temperature 3000 K
Luminous flux 1920 lm
Luminous efficacy 80 lm/W
Standard deviation of color matching ≤5 sdcm
Light color (designation) Warm White
Color rendering index Ra>80

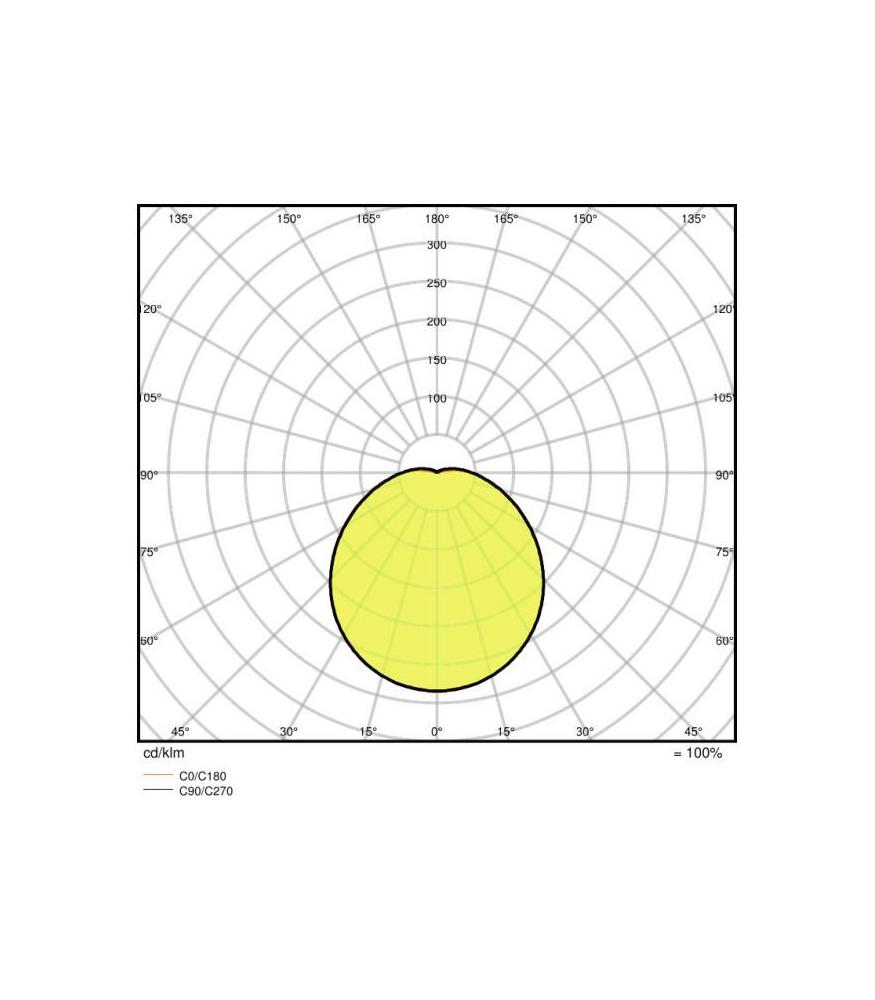

Beam angle 120°
Diameter 400 mm
Height 120 mm
Product weight 708g
Body material Steel
Housing color White
Product color White
Ambient temperature range –20…40 °C
Lifespan L70 at 25 °C 30000 h
Lifespan L80 at 25 °C 30000 h
Lifespan L90 at 25 °C 15000 h
Mounting type Surface
Mounting location Ceiling / Wall
Dimmable No
Type of connection Terminal, 3-pin
Led module replaceable Not replaceable
Protection class IK (shock resistance) IK03
Photobiological safety group RG 0
Protection class I
Type of protection IP44
Standards CE/CB/TÜV SÜD/EAC/RoHS

Benefits
• High luminous efficacy
• Energy savings of up to 55% compared to luminaires that use CFL
• Easy and quick installation
• Very homogenous light
• Clear cover protects the reflector against dust and contact
• 3 years guarantee

Applications
• Corridors
• Stairways
• Bathrooms
• Foyers

Features
• Beam angle: 120°
• Type of protection: IP44
• Impact resistance: IK03
• Metal housing, PMMA cover
• Ambient temperature in operation: –20…+40 °C

General safety informations
