Vossloh Schwabe VS Capacitor 100mF 280-300V 41073

506363

-

Vossloh Schwabe

-

506363

For T/TC Fluorescent Lamps – 280/300V, flame- and explosion-proof with break-action mechanism.

More details

19,91€tax excl.


Weight: 0.14 kg
Delivery: 1 to 3 days
Condition: New product

- +

0
  0 / 5 - 0 reviews  Add Review


Suggest price
  • PDF Product datasheet
  •
    More info

    Type B Capacitors with an Aluminium Casing
    For T/TC Fluorescent Lamps – 280/300V, flame- and explosion-proof with break-action mechanism.
    Type: 41073
    Capacity: 100mF

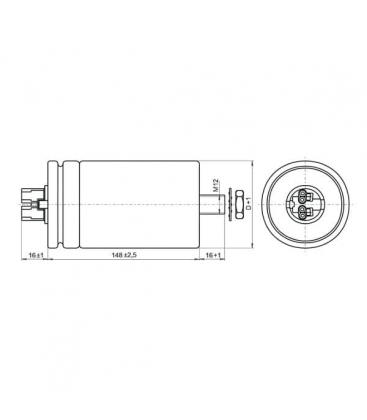

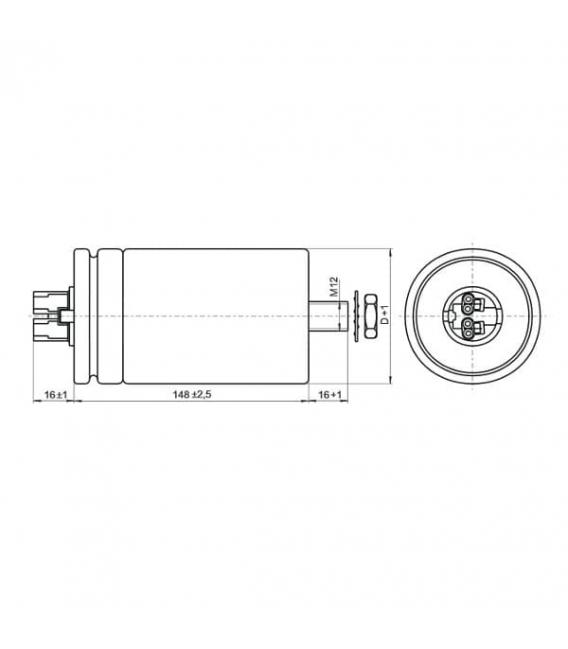

    Dimension / Lenght mm: 55/148
    Mounting: M12 x 16 bolt
    Filled / Dry: Vegetable oil
    Protection device: FPU
    Approval mark: III


    Technical Details of Vossloh-Schwabe Parallel Capacitors
    All VS capacitors comply with IEC 61048 A2 (Safety) and IEC 61049 (Operation). Capacitors rated 250V and 280V also bear the ENEC mark.

    Nominal voltage
    -250V, 50/60 Hz;
    -280V, 50/60 Hz;
    -450V, 50/60 Hz (dependent on type)

    Capacitance tolerance: ±10 %; ±5 %

    Temperature range: –40 to +85 °C

    Relative humidity load:
    -Class F for Type B capacitors 75 % annual mean 95 % peak value on 30 days
    -Class G for Type A capacitors 65 % annual mean 85 % peak value on 30 days

    Capacitors must not be subjected to condensation

    Failure rates it maximum voltage, current and temperature values are complied with = 1 ‰ per 1000 operating hours

    Permissible torque on the base screw:
    -M8x10 – 5.0 Nm (aluminium casing)
    -M8x10 – 2.2 Nm (plastic casing)

    Split fixing pins with a clearance of 20 mm for plastic casings (side clip)

    Optional thermal fuse (Type A capacitors)

    Connecting wires:
    Parallel capacitors for fluorescent lamps
    -Casing diameter 25–30 mm: 0.5-–1 mm2 and IDC terminals for H05V-U 0.5 conductors
    -Casing diameter >30 mm: 0.5–1 mm2 parallel capacitors for high-pressure lamps

    Casing diameter 25–30 mm: 0,5–1 mm2 and IDC terminals for H05V-U 0.5 conductors

    Casing diameter >30 mm: 0.5–1.5 mm2

    Vossloh Schwabe VS Capacitor 100mF 280-300V 41073 506363


    Data sheet
    Dimmable No
    Factory Box - pieces (pcs) 18
