Vossloh Schwabe Ballast LN16.316 220V 50Hz T8 TC DD
637308 | Manufacturer: Vossloh Schwabe | EAN: 4050732637308 | MPN: 163730
More info
Electromagnetic ballast for fluorescent lamps and compact fluorescent lamps.
Standard ballast
Vacuum-impregnated with polyester resin
Push-in terminal for leads: 0.5 - 1 mm²
For the automatic luminaire wiring: IDC terminals for leads H05 V-U 0.5
Protection class I
Lamp type: T8, TC-DD
Output [W]: 16 for fluorescent lamps T8 (G13)
Output [W]: 16 for compact fluorescent lamps TC-DD (GR8/GR10q)
Voltage [V]: 230
Frequency [Hz]: 50

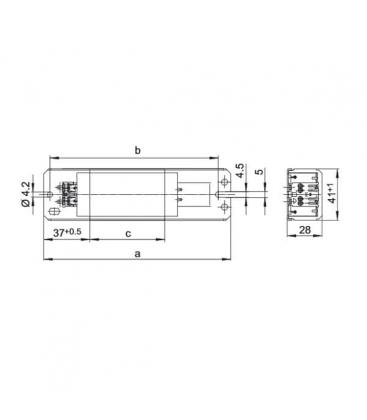

Shape: 28 × 41 mm
Dimensions (a × b × c): 85 × 75 × 34 mm
Energy efficiency: B1
Questions
I'm not sure what part of the choke corresponds to your measurements. As this is so critical could you give me a ring please on 07990 553225. It has to fit into a slimline fluorescent case and it is not clear which measurement is the width which is the length and which is the height ie how far from the base of the casing to the top so it enables the lid to be put on and then the tube. Thanks I would appreciate your help. Regards Brent Parker
Total length of the ballast is 85mm, length form one fixing hole to another, is 75mm and height is 28mm.
