Ballasts magnétiques
Vossloh Schwabe Ballast LN16.316 220V 50Hz T8 TC DD
637308 | Producteur: Vossloh Schwabe | EAN: 4050732637308 | MPN: 163730
En savoir plus
Ballast ferromagnétique pour lampes fluorescentes et les lampes fluorescentes compactes.
Ballast standard
Imprégnation sous vide avec résine polyester
Bornes à insert: 0,5 - 1 mm²
Classe de protection I
Type de lampe: T8, TC-DD
Puissance [W]: 16 pour lampes fluorescentes T8 (G13)
Puissance [W]: 16 pour les lampes fluorescentes compactes TC-DD (GR8/GR10q)
Voltage [V]: 230
Fréquence [Hz]: 50
Forme: 28 × 41 mm

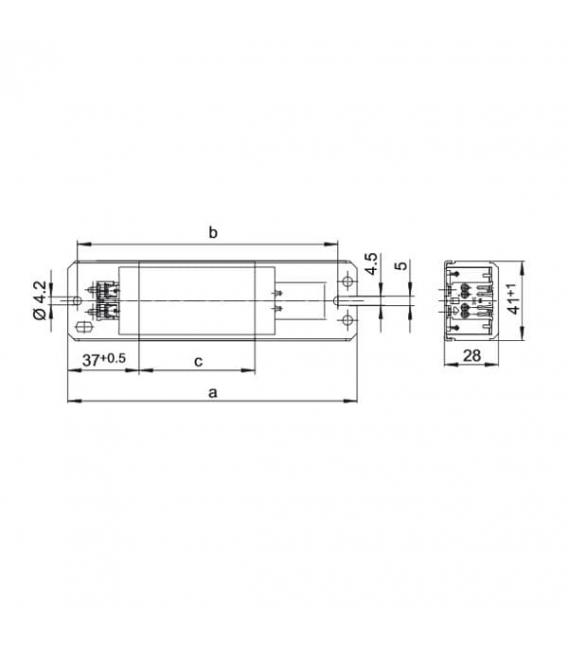

Dimensions (a × b × c): 85 × 75 × 34 mm
Efficacité énergétique: B1
Des questions
I'm not sure what part of the choke corresponds to your measurements. As this is so critical could you give me a ring please on 07990 553225. It has to fit into a slimline fluorescent case and it is not clear which measurement is the width which is the length and which is the height ie how far from the base of the casing to the top so it enables the lid to be put on and then the tube. Thanks I would appreciate your help. Regards Brent Parker
Total length of the ballast is 85mm, length form one fixing hole to another, is 75mm and height is 28mm.
