529685 | Manufacturer: Vossloh Schwabe | EAN: 4014364474557 | MPN: 529685
ballasts LN58TD 120 220V 50Hz T8 T12 magnetic
Product is out of production!
The Ballast LN58TD.120 220V 50Hz T8 T12 is a slim, vacuum-impregnated ballast that ensures efficient and reliable performance for traditional lamps and fluorescent tubes. With push-in terminals for easy installation and IDC terminals for automatic luminaire wiring, this ballast offers convenience and versatility. It provides an output of 58W for T8 fluorescent lamps (G13) and 65W for T12 fluorescent lamps (G13), with a voltage of 230V and frequency of 50Hz. Its compact shape and dimensions make it suitable for various applications. Energy efficiency rating: B2. TD = halfchoke (two ballasts per lamp are necessary).
More info
Vossloh Schwabe ballasts LN58TD 120 220V 50Hz T8 T12 magnetic Ballast. Enhance your lighting with the Ballast LN58TD.120 220V 50Hz T8 T12 magnetic ballast. Experience improved efficiency and performance for fixtures.
Slim ballast
Vacuum-impregnated with polyester resin
Push-in terminal for leads: 0.5 - 1 mm²
For the automatic luminaire wiring: IDC terminals for leads H05 V-U 0.5
Protection class I
Lamp type: T8, T12
Output [W]: 58 for fluorescent lamps T8 (G13)
Output [W]: 65 for fluorescent lamps T12 (G13)
Voltage [V]: 230
Frequency [Hz]: 50
Shape: 28 × 28 mm

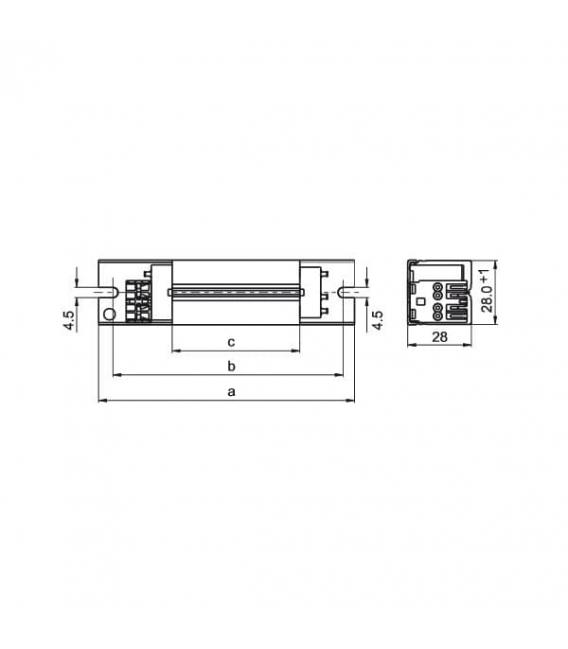

Dimensions (a × b × c): 190 × 180 × 120 mm
Energy efficiency: B2
TD = halfchoke (two ballasts per lamp are necessary)
| Explanation Dimmable | no |
| Explanation Voltage - (V) | 220 |
| Explanation Factory packed - (pieces) | 10 |
