570963 | Manufacturer: Vossloh Schwabe | EAN: 1616869019993 | MPN: 570963
ballasts NAHJ 250 915 220V 50Hz HS HI magnetic
The Ballast NAHJ 250.915 220V 50Hz HS HI is a standard ballast that is vacuum-impregnated with polyester resin for durability. With screw terminals ranging from 0.5 to 2.5 mm², it offers easy installation. This ballast has a protection class I and is compatible with HS and HI lamps. It provides an output of 250W at a voltage of 230V and frequency of 50Hz. Its compact shape measures at 53 × 66 mm, while its overall dimensions are 180 ×155 ×110 mm (a × b × c). Energy-efficient with an EEI=A3 rating, this ballast ensures reliable performance for your lighting needs.
More info
More info
Vossloh Schwabe ballasts NAHJ 250 915 220V 50Hz HS HI magnetic Ballast. Enhance your lighting with the Ballast NAHJ 250.915 220V 50Hz HS HI magnetic ballast. Achieve optimal performance and efficiency for fixtures.
Standard ballast
Vacuum-impregnated with polyester resin
Screw terminals: 0.5 - 2.5 mm²
Protection class I
Lamp type: HS, HI
Output [W]: 250
Voltage [V]: 230
Frequency [Hz]: 50
Shape: 53 × 66 mm

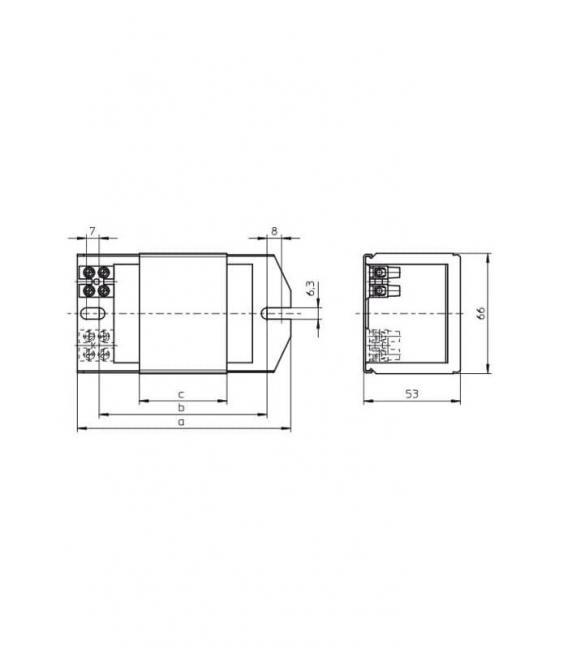

Dimensions (a × b × c): 180 × 155 × 110 mm
Energy efficiency: EEI=A3
| Explanation Dimmable | no |
| Explanation Voltage - (V) | 220 |
| Explanation Wattage - (W) | 250 |
| Explanation Energy consumption - (kWh / 1000h) | 250 |
| Explanation Factory packed - (pieces) | 4 |
