HF 236 TL III 220V electronic ballasts

Illuminate your space with the HF P 236 TL-D III 220V electronic ballast. Efficiently power up lighting for a brighter ambiance.

Application code III
Rated Lamptype TL-D
Rated Number of Lamps 2 piece
Rated Ballast-Lamp Power 36 W
Line Voltage 220 - 240 V
Line Frequency 50 - 60 Hz
Housing L 280 × 30 × 28
Energy Efficiency Index A2 BAT
Lifetime 90% surv.@Tcaselife 50000 h
Ignition Method Programmed Start
Automatic restart Yes
Ignition time 0.9 (max) s
Operating frequency 45 kHz
Mains voltage safety (AC) –10% /+10%
Mains voltage performance (AC) -8% /+6%
Inrush current Peak 18 (max) A
Inrush current Width 0.25ms
Earth leakage current 0.5 mA
Power losses gear 5.5 W
Constant wattage deviation -2% /+2%
Ballast Lumen Factor 0.96 -
PowerFactor 100% output power 0.98 -
Battery voltage lamp ignition 186 - 275 V
Battery voltage running lamps 186 - 275 V
Overvoltage protection 320 V 48 hr
Overvoltage protection 350 V 2 hr
Crestfactor 1.7 (max) -
Hum and Noise level < 30 dB(A)
Cable-Cap outputwires to earth 200 pF
Cable-Cap outputwires mutual 200 pF
Conn.type input terminals WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Conn.type output terminals WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Max. cable length Hot Wires 0.75m
Striplength 8.0-9 mm
Dual fixture Master/Slave Not applicable [Master/Slave oper. not applicable]
Wcs Input terminals 0.50 - 1 mm²
Wcs Output terminals 0.50 - 1 mm²
Rated Lamp Power on TL-D 36 W
System Power on TL-D 68 W
Lamp Power on TL-D 62.5 W
Power Loss on TL-D 5.5 W
T-case life 80 C
T-case maximum 80 (max) °C
T-ignition -25 (min), 60 (max) °C
T-ambient -25 (min), 60 (max) °C
T-storage -40 (min), 50 (max) °C
Bal lm Fac Emergency operation 0.7 -
Light output after 5 sec 50% of EBLF
Light output after 60 sec 100% of EBLF
Normal operating voltage (DC) 220 - 240 V
Batt volt guaranteed ignition 186 - 275 V
Batt volt guaranteed operation 176 - 275 V

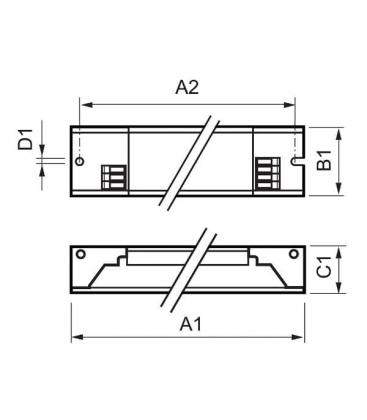

Length A1 280 mm
Fixing Hole Distance Length A2 265 mm
Width B1 30 mm
Height C1 28 mm
Fixing Hole Diameter D1 4.2 mm
Approval marks ENEC / VDE-EMV
CE marking Yes
Temperature marking 110 [Yes]
Emergency standard IEC 60598-2-22
