QT FIT5 3x14W 4x14W 220V quicktronic electronic ballasts

Input voltage AC 198 - 264 V
Nominal voltage 220 - 240 V
Mains frequency 50 - 60 Hz
Input voltage DC 185-264 V
Operating frequency 40-50 kHz
Max. ECG no. on circuit breaker 10 A (B) 12
Max. ECG no. on circuit breaker 16 A (B) 19
Inrush current 40 A
Starting time 2s

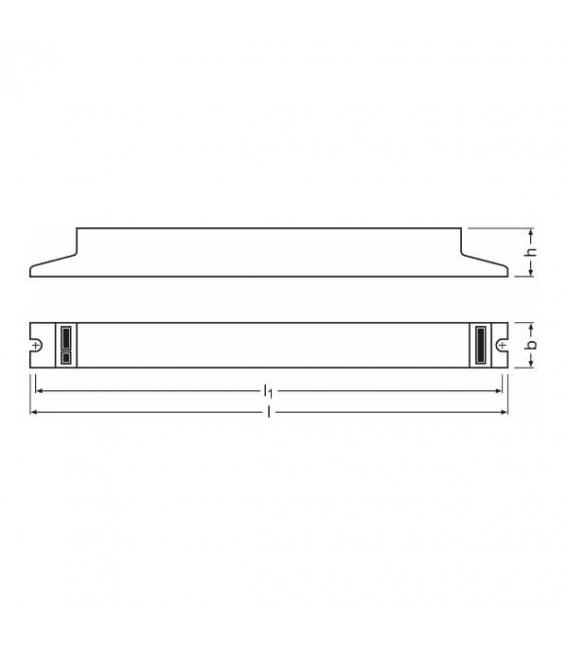

Length 280 mm
Width 40 mm
Height 21 mm
Mounting hole spacing, length 270 mm
Cable cross-section, output side 0.5-1.5 mm²
Cable cross-section, input side 0.5-1.5 mm²
Ambient temperature range –15…+50 °C
Permitted rel. humidity during operation 5…85%
ECG lifetime 50000 h
Suitable for fixtures with prot. class I
End of lamp life safety shutdown EOL T.2
Approval marks - approval VDE / ENEC 10 / VDE-EMC
EEI - Energy Label A2
Standards Acc. to EN 61547/IEC 61547/Acc. to EN 61347-2-3/IEC 61347-2-3/Acc. to EN 61000 - 3-2/IEC 61000 - 3-2/Acc. to EN 55015: 2006 + A1: 2007 + A2: 2009
Protection class I

Benefits
• Long lamp life
• No adverse effect from frequent on/off switching
• Automatic restart after lamp replacement
• Perfect lamp start for applications with motion sensors
• VDE/VDE EMC certified system
• Very high energy efficiency due to cut-off technology

Areas of application
• Open-plan offices, corridors and storage rooms
• Public buildings
• Strip lighting
• Suitable for emergency lighting (DC operation)
• Suitable for luminaires of protection class I
• Modernization of existing systems
