870823 | Manufacturer: Osram | EAN: 4050300870823 | MPN: QTI-DALI-1-58
DALI QTi 1x58W 220V T8 Quicktronic Intelligent
The QTi DALI 1x58W 220V DIM T8 Quicktronic intelligent is a versatile and efficient lighting solution. With an input voltage range of AC 198 - 264 V and DC 154…276 V, it offers reliable performance. This product features dimming capabilities through the DALI interface, allowing for easy integration into various applications. It also includes benefits such as easy installation in luminaires with the same dimensions as DALI GI ECGs, touch DIM function for cost-effective dimming, and compatibility with amalgam lamps without flickering or reduced lifespan. Suitable for emergency lighting systems and ideal for industries, offices, public buildings, sports halls, strip lighting, and shop lighting.
More info
Input voltage AC 198 - 264 V
Nominal voltage 220 - 240 V
Mains frequency 50 - 60 Hz
Input voltage DC 154…276 V
Operating frequency 46…120 kHz
Max. ECG no. on circuit breaker 10 A (B) 17
Max. ECG no. on circuit breaker 16 A (B) 28
Power loss in stand-by mode 0.2 W
Inrush current 28 A
Starting time 0.6 s

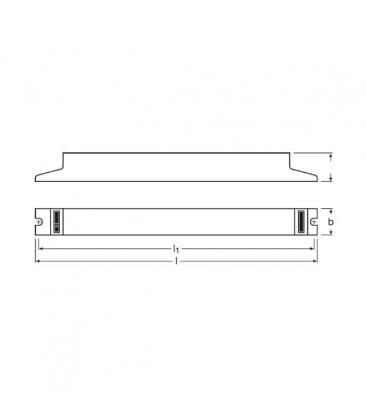

Length 360 mm
Width 30 mm
Height 21 mm
Mounting hole spacing, length 350 mm
Wire preparation length, input side 8.0…9 mm
Wire preparation length, output side 8.0…9 mm
Cable cross-section, output side 0.5-1.5 / 0.5-1 mm²
Cable cross-section, input side 0.5-1.5 / 0.5-1 mm²
Ambient temperature range –20…+50 °C
ECG lifetime 100000 h
Dimming interface DALI / Touch DIM / Touch DIM Sensor
Dimming range 1…100%
Dimmable Yes
Overload protection Yes
Overheating protection Power reduction and switch off at T > 75 °C at the tc point
Suitable for fixtures with prot. class I
End of lamp life safety shutdown EOL T.2
Approval marks - approval VDE / VDE-EMC / ENEC 10 / EL / GOST / RCM / CCC / E1 approval
EEI - Energy Label A1 BAT
Standards Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015: 2006 + A1: 2007/Acc. to EN 61000 - 3-2/Acc. to EN 61547
Protection class I
Type of protection IP20
Benefits
• Easy integration in luminaire thanks to same dimensions like DALI GI ECG
• Touch DIM function for easy and inexpensive dimming of several ECGs
• Same luminous flux with direct and alternating current
• Dimming of amalgam lamps without flickering or reduced lifespan
• Automatic restart after lamp replacement
• No new approvals required
DALI product features
• Control via the DALI interface
• Compliance with the DALI standard to IEC 60929 and IEC 62386
• Control input protected against overvoltage and polarity reversal (Osram ECG)
Touch DIM and Touch DIM Sensor function
• Manual dimming without controller and with standard switches
• Including memory function (double click) and soft start
Applications
• Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100
• Installation in emergency lighting systems according to IEC 61347-2-3, appendix J
• Industry
• Open-plan offices, corridors and storage rooms
• Public buildings
• Sports halls and factories
• Strip lighting
• Shop lighting
Features
• Corridor function for direct connection of ECG to common motion sensor
• Corridor function with pre-programmed light program
• Touch DIM function for free parameterization of light value and turn on time
• Fit for SMART GRID for feedback of consumed mains power and lamp operating hours
• Fit for Emergency function for automatic detection of emergency lighting by ECG
• Very low standby power consumption: < 0.2 W (A1 BAT)
• Lifetime: up to 100000 h (temperature at Tc = 65 °C, max. 10% failure rate)
• Very high number of switching cycles: up to 300000
• Dimming range: 1…100% (3…100% with compact fluorescent lamp)
• POWER2LAMP function for optimal matching of ECG power to lamp during lamp lifetime
