QTi 1x18W 220V DIM quicktronic intelligent electronic ballasts 10V

Enhance your lighting with the QTi 1x18W 220V DIM Quicktronic intelligent electronic dimmable ballast. Experience seamless control and energy efficiency in one sleek package.

Nominal voltage 220 - 240 V
Mains frequency 50 Hz/60 Hz
DC voltage 154…276 V
Operating frequency 51…120 kHz
Starting time 0.6 s

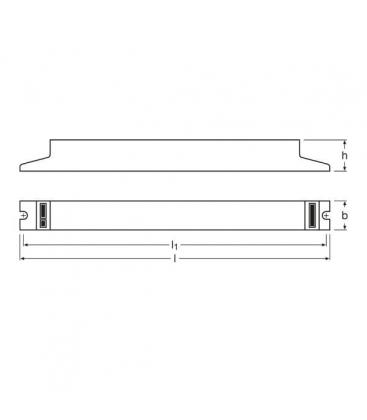

Length 360 mm
Width 30 mm
Height 21 mm
Mounting hole spacing, length 350 mm
Wire preparation length, input side 8.0…9 mm
Wire preparation length, output side 8.0…9 mm
Ambient temperature range –20…+50 °C
Dimming interface 1…10 V
Dimming range 1…100%
Dimmable Yes
Suitable for fixtures with prot. class I
End of lamp life safety shutdown EOL T.2
Approval marks - approval VDE / E1 approval / VDE-EMC
EEI - Energy Label A1 BAT
Standards acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015: 2006 + A1: 2007/acc. to IEC 61000 - 3-2/acc. to EN 61547

Benefits
• Same luminous flux with direct and alternating current
• Perfect lamp start for applications with motion sensors
• Dimming of amalgam lamps without flickering or reduced lifespan
• Very high efficiency thanks to cut-off technology
• Automatic restart after lamp replacement
• ECGs comply with MINERGIE standard due to very low standby consumption
• Configurable emergency power characteristics

Applications
• Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100
• Suitable for luminaires of protection class I
