102560 | Manufacturer: Osram | EAN: 4008321102560 | MPN: 64331 SP A
Illuminate your airfield with the Lamp 64331 SP A 30 10, a high-performance light bulb offering 1000h of bright, reliable lighting. Experience superior visibility today
Nominal wattage 30 W
Lamp current 6.6 A
Luminous intensity 16000 cd
Axial luminous intensity 18000 cd

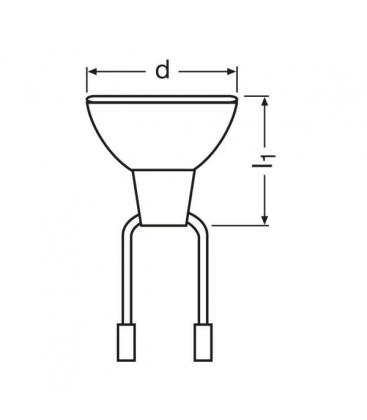

Diameter 50.4 mm
Length 48 mm
Length with base excl. base pins/connection 48 mm
Lifespan 1000 h
Product remark Spot adjustment
Burning position h45
Connection with cable [AGGR] Yes
Mains terminals Leads w/female flat connectors
Features
• Dimmable
• Available with connector combinations A, B, C/Z on request
• Infrared radiation output that provides light in the worst of conditions
SAFETY ADVICE
To prevent personal injury or damage to property, halogen lamps may only be operated in suitable luminaires designed with suitable mechanisms (protective shields, grids, etc.) to ensure that in the event of a lamp bursting no parts/shards can escape and that during operation no ultraviolet radiation can escape. There must also be a warning sign to indicate that the lamps give off high levels of heat. Detailed information is available on request.
Explanation Dimmable | yes |
Explanation Current - (A) | 6 |
Explanation Wattage - (W) | 30 |
Explanation Luminous intensity - (cd) | 16000 |
Explanation Energy consumption - (kWh / 1000h) | 30 |
Explanation Lifetime - (h) | 1000 |
Explanation Factory packed - (pieces) | 20 |
