340139 | Manufacturer: Osram | EAN: 4008321340139 | MPN: 64317 IRC C
Illuminate your airfield with the Lamp 64317 IRC C 45 30 45W PK30d, a unique light bulb designed for optimal visibility and long-lasting performance.
Nominal wattage 45 W
Nominal voltage 6.82 V
Lamp current 6.6 A
Luminous flux 800 lm
Diameter 15 mm
Length 48 mm
Length with base excl. base pins/connection 28 mm
Light center length (LCL) 16 mm
Lifespan 3000 h
Base (standard designation) PK30d
Burning position s90
LIF J1/76
Areas of application

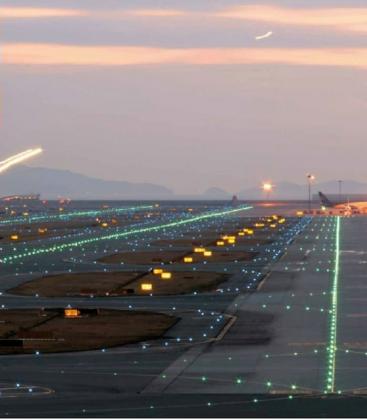

• Airfield lighting
Features
• Dimmable
• Available with connector combinations A, B, C/Z on request
• Infrared radiation output that provides light in the worst of conditions
SAFETY ADVICE
To prevent personal injury or damage to property, halogen lamps may only be operated in suitable luminaires designed with suitable mechanisms (protective shields, grids, etc.) to ensure that in the event of a lamp bursting no parts/shards can escape and that during operation no ultraviolet radiation can escape. There must also be a warning sign to indicate that the lamps give off high levels of heat. Detailed information is available on request.
Explanation Dimmable | yes |
Explanation Lamp holder, lamp socket | PK30d |
Explanation Current - (A) | 6 |
Explanation Wattage - (W) | 45 |
Explanation Luminous flux - (lm) | 800 |
Explanation Luminous efficacy - (lm / W) | 18 |
Explanation Energy consumption - (kWh / 1000h) | 45 |
Explanation Lifetime - (h) | 3000 |
Explanation Factory packed - (pieces) | 1 |
