345677 | Manufacturer: Osram | EAN: 4008321345677 | MPN: 64342 HLX C
64342 HLX 100W 15 PK30d lamp airfield light bulbs
More info
Nominal wattage 100 W
Nominal voltage 15.2 V
Lamp current 6.6 A
Luminous flux 2700 lm

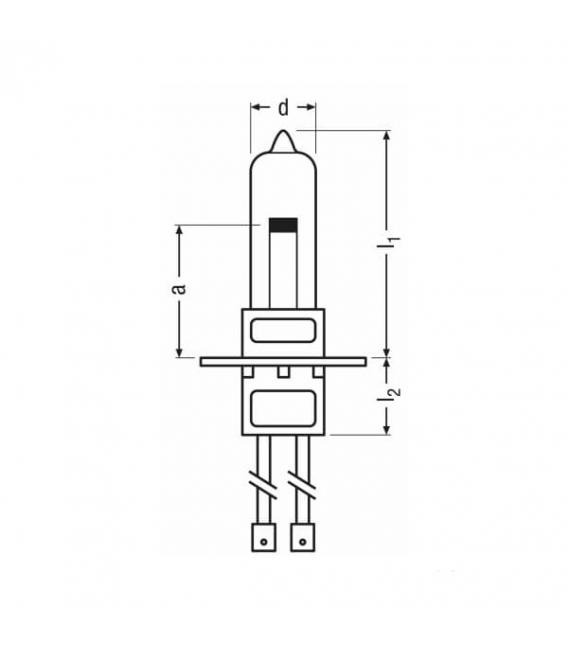

Diameter 13.5 mm
Length 56 mm
Mounting length 16 mm
Length with base excl. base pins/connection 40 mm
Light center length (LCL) 20 mm
Lifespan 1500 h
Base (standard designation) PK30d
Burning position s90
LIF J1/80
Areas of application

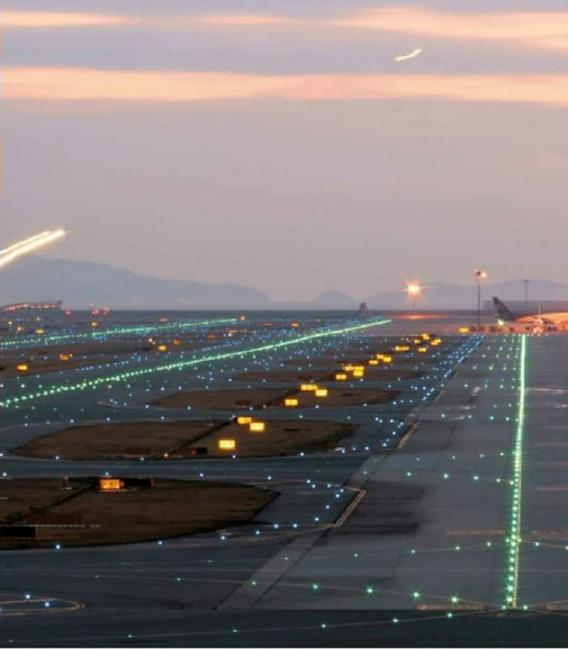

• Airfield lighting
Features
• Dimmable
• Available with connector combinations A, B, C/Z on request
• Infrared radiation output that provides light in the worst of conditions
SAFETY ADVICE
To prevent personal injury or damage to property, halogen lamps may only be operated in suitable luminaires designed with suitable mechanisms (protective shields, grids, etc.) to ensure that in the event of a lamp bursting no parts/shards can escape and that during operation no ultraviolet radiation can escape. There must also be a warning sign to indicate that the lamps give off high levels of heat. Detailed information is available on request.
