635204 | Manufacturer: Philips | EAN: 8711500635204 | MPN: 927903486570
Master PL-L is a medium to high-wattage linear compact fluorescent lamp, typically used for general-illumination ceiling luminaires in retail, hospitality and office applications demanding higher lighting levels. The original Philips-invented bridge technology guarantees optimum performance in the application, enabling more light and higher efficacy than the bended technology. It is designed for operation on electromagnetic as well as electronic HF control gear and is provided with a plug-in/pull-out lamp base.
Philips CFL master PL 36W 865 2G11 energy saving lamp compact L. Illuminate your space with the Master PL-L 36W 865 Compact Fluorescent Lamp. Efficient and bright, perfect for any room.
Cap-Base 2G11
Cap-Base Information 4P
Life to 50% fail Preheat EL,3h 20000 h
Color Code 865 [CCT of 6500 K]
Color Rendering Index 80 Ra8
Color Designation Cool Daylight
Color Temperature 6500 K
Lum Flux Rated EM 25 °C,horiz 2880 lm
Lum Flux Nominal EM 25 °C,horiz 2900 lm
Luminous Efficacy Rated EM 25 °C,hor 80 lm/W
Luminous Efficacy Rated HF 25 °C,hor 80 lm/W
Design Temperature 30 C
Chromaticity Coordinate X 305 -
Chromaticity Coordinate Y 325 -
Lamp Wattage 36 W
Lamp Voltage EM 25 °C 106 V
Lamp Voltage EL 25 °C 90 V
Lamp Current EM 25 °C 0.435 A
Lamp Current EL 25 °C 0.360 A
Dimmable Yes
Energy Efficiency Label (EEL)A
Mercury (Hg) Content 2 mg
Energy consumption kWh/1000 h 40 kWh

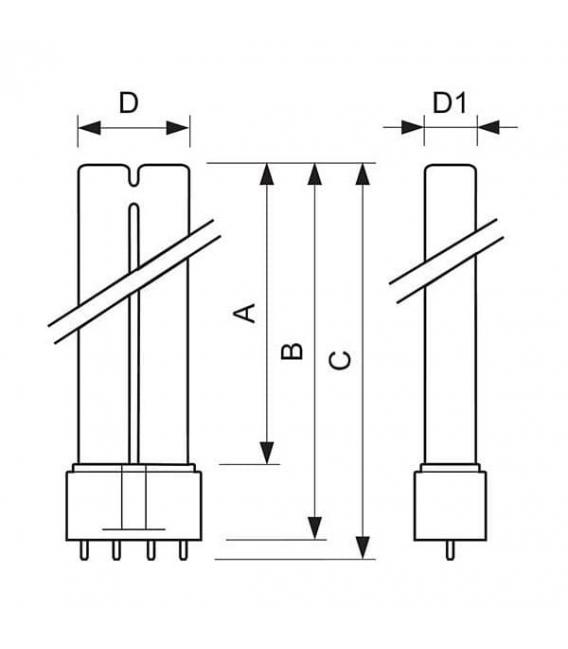

Base Face to Base Face A 384.2 (max) mm
Insertion Length B 410 (max) mm
Overall Length C 416.6 (max) mm
Diameter D 39 (max) mm
Diameter D1 18 (max) mm
Benefits
• Optimal light performance for short or long operation per switch-on
• Long life and sustainable light output
• Multiple light color choice
• Good color rendering (CRI > 80)
• Dimming possible down to 10%
Features
• 4-pin base
• Fluorescent tri-phosphor technology
• Low light depreciation over lamp life
Applications

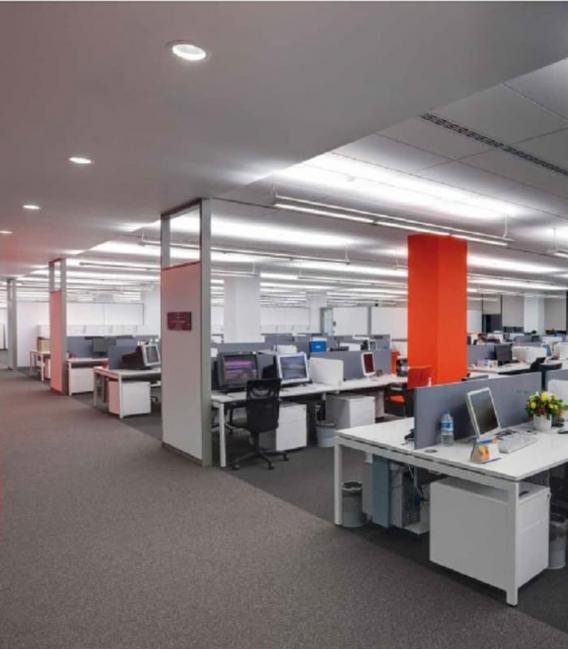

• Designed for general lighting in shops, offices, hotels and specific task lighting, as well as outdoors in residential areas and parks
| Explanation It needs ballast | yes |
| Explanation Dimmable | yes, with DIMM ECG |
| Explanation Energy efficiency class | A |
| Explanation Lamp holder, lamp socket | 2G11 |
| Explanation Wattage - (W) | 36 |
| Explanation Luminous flux - (lm) | 2900 |
| Explanation Luminous efficacy - (lm / W) | 81 |
| Explanation Color temperature - (K) | 6500 |
| Explanation Light color code | 865 |
| Explanation Color rendering - (CRI) | 80 |
| Explanation Energy consumption - (kWh / 1000h) | 36 |
| Explanation Lifetime - (h) | 20000 |
| Explanation Factory packed - (pieces) | 25 |
