LED driver LPF 40D 24 24V 40W IP67 brighten your home with mean well

This LED driver LPF 40D 24 24V 40W IP67 is the perfect choice for your lighting needs. With its high-quality construction and reliable performance, you can tru

This LED driver LPF 40D 24 24V 40W IP67 is the perfect choice for your Led lighting and moving sign applications. It features universal AC input, active PFC function, 3 in 1 dimming function, IP67 protection rating and 5 years warranty. With its high efficiency of 87%, this LED driver is UL8750, CSA C22.2 No.250.0-08 approved and suitable for dry/ damp/ wet locations with a maximum input voltage of 305 VAC or 431 VDC.

Suitable for Led lighting and moving sign applications (moving Led display). Universal AC input / Full range (up to 305 VAC). Protections: Short circuit/ Over current/ Over voltage/ Over temperature. Built-in active PFC function. Built-in three in one dimming function (1~10 VDC or PWM signal or resistance). Cooling by free air convection. Fully isolated plastic case.

- Suitable for dry/damp/wet locations.
- High efficiency of up to 87%.
- Active power factor correction (PFC) function.
- Three in one dimming function allows flexibility in controlling brightness levels.
- Provides reliable protection against short circuit, over current, over voltage, and over temperature.
- Durable construction with an IP67 protection rating ensures long-lasting performance even in challenging environments.
- Class II power unit design eliminates the need for a ground connection (FG).
- Comes with a five-year warranty for added peace of mind.

• Suitable for Led lighting and moving sign applications
• Universal AC input / Full range (up to 305 VAC)
• Protections: Short circuit/ Over current/ Over voltage/ Over temperature
• Built-in active PFC function
• Built-in three in one dimming function (1~10 VDC or PWM signal or resistance)
• Cooling by free air convection
• Fully isolated plastic case

• Safety standards: UL8750, CSA C22.2 No.250.0-08(except for 48V, 54V), ENEC EN61347-1, EN61347-2-13 independent, EN62384, IP67, J61347-1, J61347-2-13 approved; design refers to UL60950-1 and TUV EN60950-1.
• Input voltage: 90~305 VAC / 127~431 VDC
• Input ac current: 0.6 A / 115 VAC; 0.3A /230 VAC; 0.25 A /277 VAC
• Output:24V /1.67A /40W
• Efficiency :87%

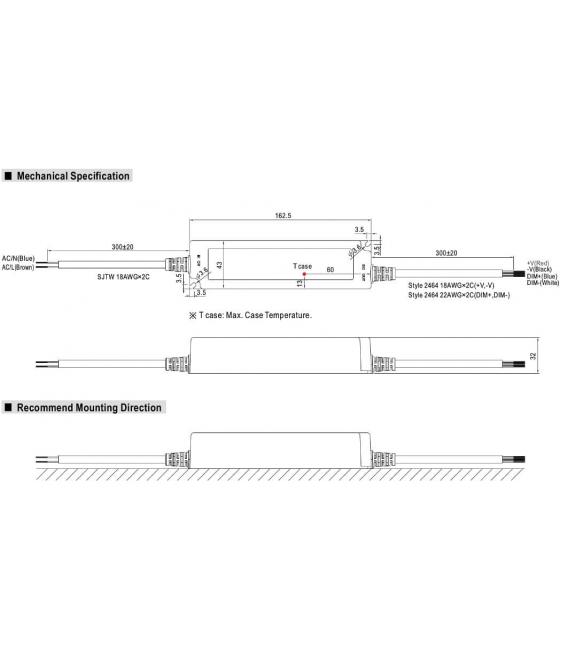

• Dimensions :162 .5 ×43×32 mm
• Weight :0 .45 kg

Warning!Please indicate any warnings here.

This LED driver LPF40D2424V40WIP67 is the perfect choice for your Led lighting and moving sign applications. It features universal AC input, active PFC function, 3 in 1 dimming function, IP67 protection rating and 5 years warranty. With its high efficiency of 87%, this LED driver is UL8750, CSA C22.2 No.250.0-08 approved and suitable for dry/ damp/ wet locations with a maximum input voltage of 305 VAC or 431 VDC.

Download LPF-40D-SPEC.pdf
