Linear plusline large 220V 750W R7s halogen light bulb size

Cap-Base R7s
Bulb T4 [T4:.434 inch / 11 mm]
Bulb Finish Clear
Operating Position p4 [Parallel ±4D or Horizontal(HOR)]
Life to 50% failures 2000 h
Nominal Lifetime 2000 h
Rated Lifetime (hours) 2000 h
Rated Lifetime (years) 2 an
Color Rendering Index 100 Ra8
Color Temperature 2900 K
Color Temperature Technical 2900 K
Luminous flux lamp 16875 lm
Rated Luminous Flux 16875 lm
Luminous Efficacy Lamp 22.8 lm/W
LLMF - end nominal lifetime (min 80%)
Rated Wattage 750 W
Lamp Wattage 750 W
Lamp Wattage Technical 750 W
Power Factor 1 -
Voltage 230 V
Lamp Current 3.26 A
Dimmable Yes
Starting Time 0s
Warm-up Time to 60% Light Output instant full light
Energy Efficiency Label (EEL) C
Energy consumption kWh/1000 h 750 kWh
Switching cycle 8000 ×
Pinch Temperature 350 (max) °C
Bulb Temperature 900 (max) °C

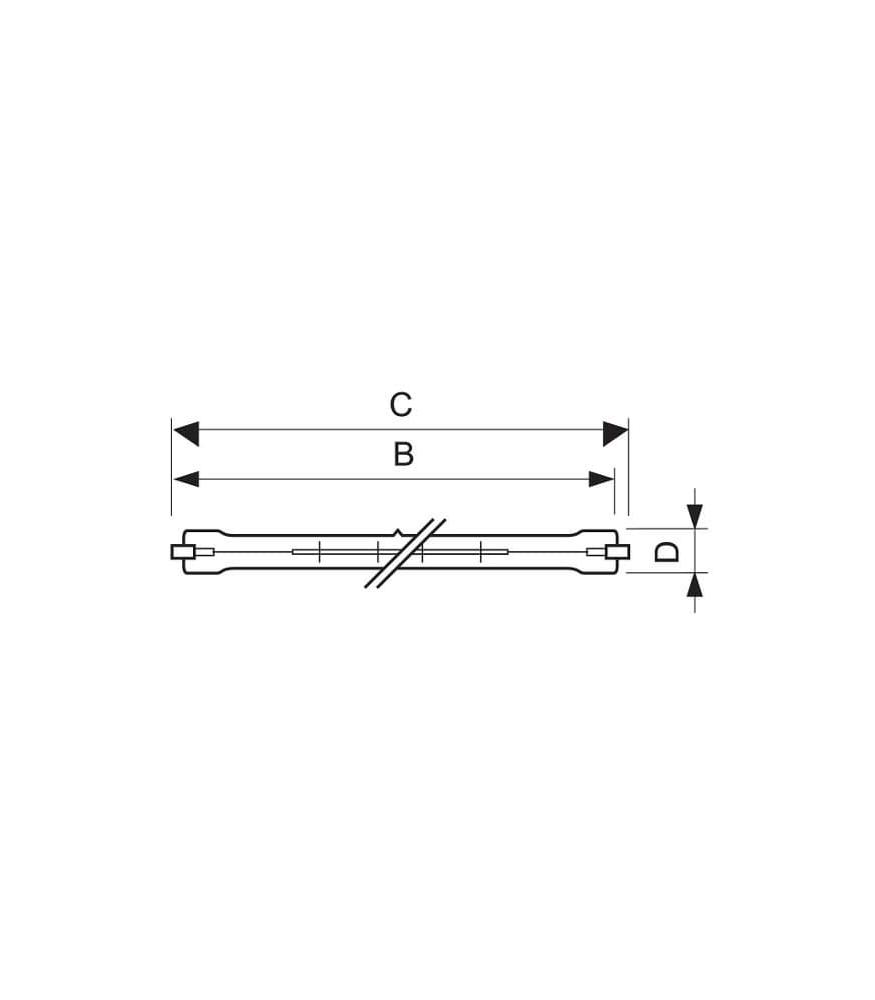

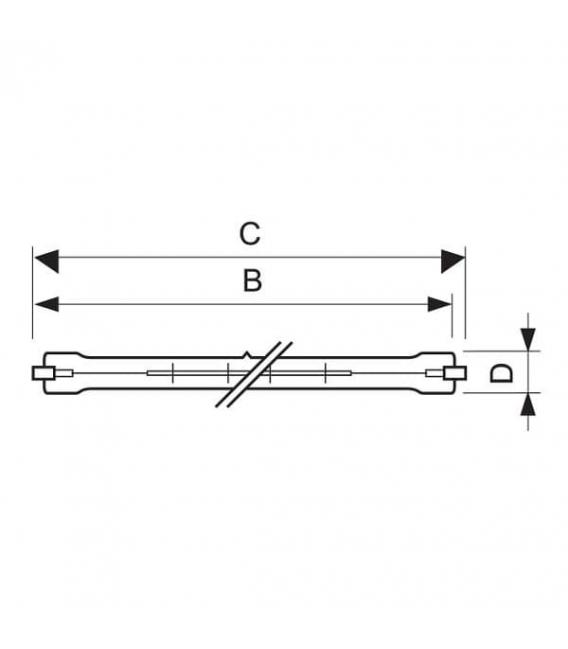

Insertion Length B 184.1 (min), 185.7 (nom), 187.3 (max) mm
Overall Length C 189.1 (max) mm
Diameter D 11 (max) mm

Benefits

Benefits
• Bright, sparkling halogen light to create the right atmosphere
• Fully dimmable, from 0…100%, to meet different brightness requirements
• Low replacement costs due to long lifetime

Features
• Superior quality of light with excellent color rendering (Ra=100)
• Lifetime: 2000 hours

Applications
• General lighting in shops, restaurants, hotels, galleries, exhibitions and museums. Decorative outdoor: billboards, exhibitions and parking areas

General safety informations
