Philips Master TL5 60W 840 2GX13

Cap-Base 2GX13
Bulb C-T5 [C-T 16 mm]
Life to 10% fail Preheat EL,3h 8000h
Life to 50% fail Preheat EL,3h 12000h

Color Code 840 [CCT of 4000K]
Color Rendering Index 85 Ra8
Color Designation (text) Cool White
Color Temperature 4000K
Luminous Flux EL 25 °C, Rated 5000 lm
Luminous Flux EL 25 °C, Nominal 5000 lm
Lum Efficacy Rated HF 25 °C 83 lm/W
LLMF HF 2000h Rated 91%
Design Temperature 35 C
Chromaticity Coordinate X 380 -
Chromaticity Coordinate Y 380 -

Lamp Wattage 60W
Lamp Wattage EL 25 °C, Rated 60W
Lamp Wattage EL 25 °C, Nominal 60W
Lamp Voltage EL 25 °C 129V
Lamp Current EL 25 °C 0.470A
Dimmable Yes

Energy Efficiency Label (EEL)A
Mercury (Hg) Content 2.5 mg

Calibration Current 0.470A
HF Generator Rated Voltage 258V
Resistor 275 ohm

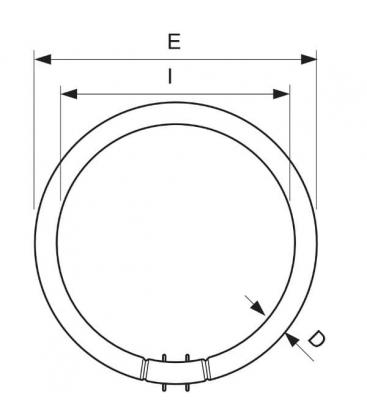

Diameter D 14 (min), 18 (max) mm
Overall Width E 367 (min), 379 (max) mm
Inner Width I 334 (min), 346 (max) mm

This circular TL5 lamp (tube diameter 16 mm) offers extended design possibilities. The slim tube allows the creation of extremely flat luminaires and enables omni-directional light distribution. It is suitable for a wide range of professional and semi-professional applications, and is ideal for use in shops, offices and public areas with unconventional layouts.

Features
-Perfect circular shape
-Highly efficient 3-band fluorescent coating
-Specifically designed for operation with electronic gear
-Can be ignited from -15 to +50 °C
-Amalgam technology

Applications
-Brings the benefits of TL5 lighting to an even wider range of attractive applications
-Suitable for a wide range of professional and semi-professional applications
-Ideal for use in shops, offices and public areas with non-traditional lay-outs
-Amalgam lamps are limited suitable for dimming applications
