Osram QTP8 1x18W 230 240V Quicktronic professional

Input voltage AC 198…264V
Nominal voltage 230…240V
Mains frequency 50…60Hz
Input voltage DC 154…276V
Operating frequency 45…60 kHz
Max. ECG no. on circuit breaker 10A (B) 36
Max. ECG no. on circuit breaker 16A (B) 59
Inrush current 14A

Starting time 2s

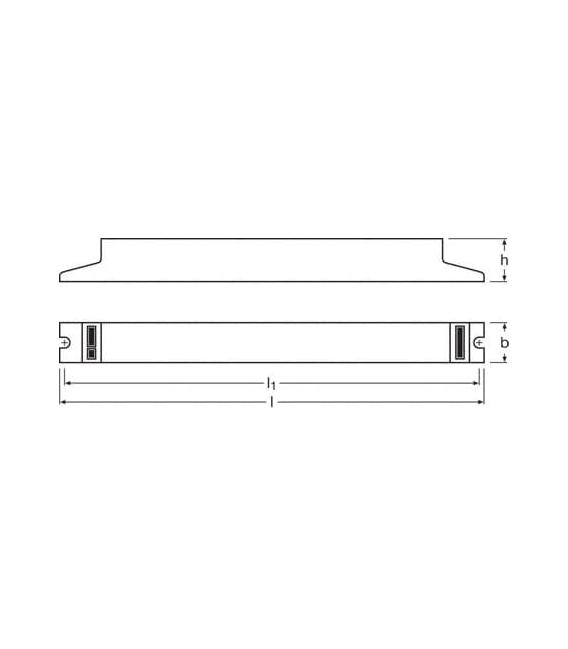

Length 360 mm
Width 30 mm
Height 30 mm
Mounting hole spacing, length 350 mm

Ambient temperature range -25…+55 °C
Permitted rel. humidity during operation 5…85%

ECG lifetime 100000h

Suitable for fixtures with prot. class I / II
End of lamp life safety shutdown EOL T.2

Approval marks – approval VDE / VDE-EMC / ENEC 10
EEI – Energy Label A2
Standards Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015: 2006 + A1: 2007/Acc. to EN 61000-3-2/Acc. to EN 61547
Protection class III
Type of protection IP20

Product benefits
-Automatic restart after lamp replacement

Areas of application
-Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100

Product features
-Supply voltage: 220…240V
-Line voltage: 198…264V
-Line frequency: 0 Hz, 50Hz…60Hz
-Lamp start with optimum filament preheating
-Life time: >100000h (for T = 65 °C at Tc)
-Safety: to EN 61347-2-3
-Lamp operation: to EN 60929
-RI suppression: to EN 55015: 2006+A1: 2007+A2: 2009/CISPR 15
-Line harmonics according to EN 61000-3-2
-Immunity according to EN 61547
