Predstikalne naprave, elektronske HID

Osram PTI 150/220 240 S

188090 | Proizvajalec: Osram | EAN: 4008321188090 | MPN: PTI-150-S

POWERTRONIC INTELLIGENT PTi S elektronska predstikalna naprava za HID sijalke, namestitev v svetilke.


76,01 €z DDV
62,30 €brez DDV

Cena za 1 kos.
Stanje: Nov izdelek
Tovarniško pakiranje - kosov (kos): 10

Z nakupom tega izdelka lahko zberete do 12 točk zvestobe. Vaša košarica bo dobila skupaj 12 točke, ki se jih lahko zamenja za kupon v vrednosti 1,20 €.

-+

Podrobnosti

Podrobnosti


Lamp wattage 147W
Line current 0.72A
Ignition voltage 4.5 kVp
Operating frequency 0.165 kHz
System wattage 160W
ECG efficiency 92%
Input voltage 220…240V
Voltage range 198…254V
Mains frequency 50…60Hz
Power factor λ N/A
Inrush current 70A
Max. no. of ECGs on circuit breaker 10A 4
Max. no. of ECGs on circuit breaker 16A 7
Max. no. of ECGs on 16A MCB with EBN-OS 17
Protective conductor current 0.4 mA
U-OUT 250V
Max. working voltage between LH and LL 250V
Max. working voltage betw. LL/LH and earth 250V
Max. capacitance of wire ECG/lamp 120 pF

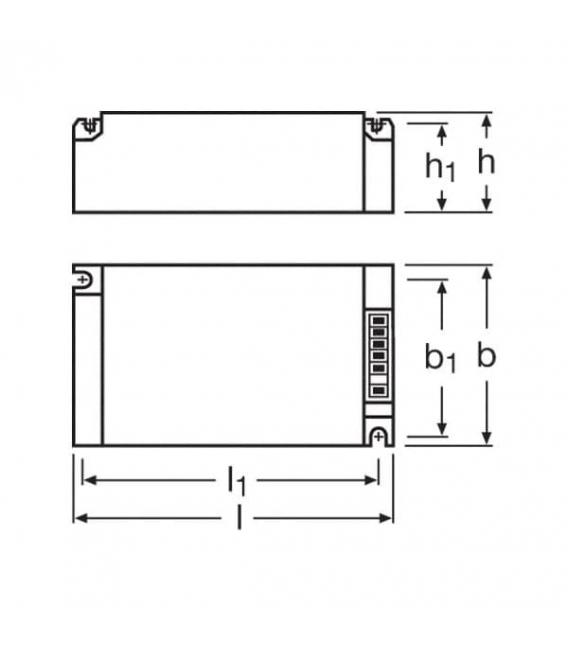

Length 150 mm
Width 85 mm
Height 31 mm
Mounting hole spacing, length 139 mm
Mounting hole spacing, width 74 mm
Cable cross-section, input side 0.5…2.5mm²
Cable cross-section, output side 0.5…2.5mm²
Wire preparation length, input side 10…11 mm
Wire preparation length, output side 10…11 mm

Casing material Metal

Ambient temperature range -25…+55 °C
Maximum temperature at tc test point 85 °C

Design / version Built-in unit
System guarantee level 3c

ECG lifetime 40000h

Maximum wiring length ECG/lamp 1.5m
Overheating protection Power reduction and switch off at T > 85 °C at the tc point
ECG reset time > 0.5s
Dimmable No
Restriction on ignition time 20 min
Suitable for fixtures with prot. class I

Approval marks – approval ENEC 10 / VDE / VDE-EMC / GHOST / C-Tick
Type of protection IP20
EEI – Energy Label A2
Standards acc. to EN 61347-2-12/acc. to EN 55015/acc. to EN 61000-3-2/acc. to EN 61547

Product benefits
-Long reliable life at maximum permitted temperatures
-Compact dimensions and low weight for small luminaire designs
-Excellent thermal behavior for very high limit temperatures tc and ta
-Automatic safety shutdown of lamps in the event of a defect or at end of life (EoL)

Areas of application
-Shop lighting
-Health and fitness areas
-Effect and accent lighting

Možnost zatemnitveDa
Napetost - Volt (V)220
Moč - Watt (W)150
Poraba energije - (kWh / 1000h)150
Mednarodna oznaka zaščite - (IPXX)IP20
Življenska doba - ure (h)40000
Tovarniško pakiranje - kosov (kos)10
