Predstikalne naprave, elektronske HID

PTI 70/220 240 I

099501 | Proizvajalec: Osram | EAN: 4008321099501 | MPN: PTI-70-I

POWERTRONIC INTELLIGENT PTi I elektronska predstikalna naprava za HID sijalke s kabelsko sponko.


44,70 €z DDV
36,64 €brez DDV

Cena za 1 kos.
Stanje: Nov izdelek
Tovarniško pakiranje - kosov (kos): 20

-+

Z nakupom tega izdelka lahko zberete do 7 točk zvestobe. Vaša košarica bo dobila skupaj 7 točke, ki se jih lahko zamenja za kupon v vrednosti 0,70 €.

Podrobnosti

Lamp wattage 73W
Line current 0.36A
Ignition voltage 4.5 kVp
Operating frequency 0200…0.240 kHz
System wattage 79W
ECG efficiency 92%
Input voltage 220…240V
Voltage range 198…264V
Mains frequency 50…60Hz
Power factor λ 0.95
Inrush current 45A
Max. no. of ECGs on circuit breaker 10A 7
Max. no. of ECGs on circuit breaker 16A 13
Max. no. of ECGs on 16A MCB with EBN-OS 32
Maximum current for mains looping 16A
Protective conductor current 0.3 mA
U-OUT 250V
Max. working voltage between LH and LL 250V
Max. working voltage betw. LL/LH and earth 250V
Max. capacitance of wire ECG/lamp 120 pF

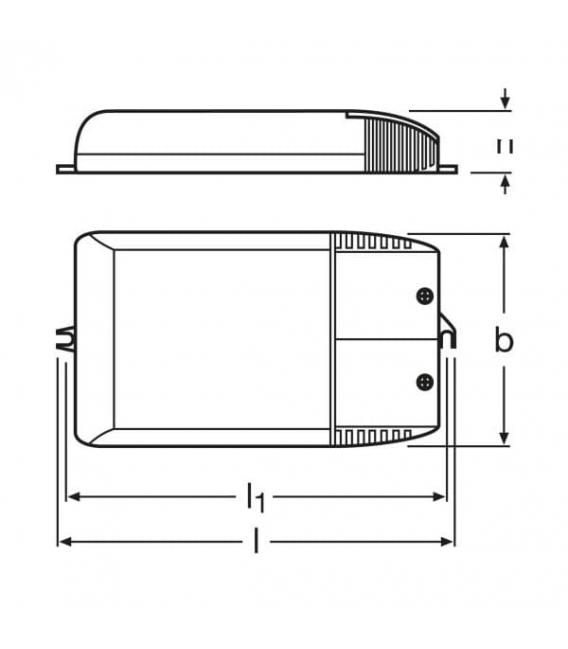

Length 171 mm
Width 83 mm
Height 32 mm
Mounting hole spacing, length 163 mm
Cable cross-section, input side 0.75…2.5mm²
Cable cross-section, output side 0.75…2.5mm²
Wire preparation length, input side 10…11 mm
Wire preparation length, output side 10…11 mm

Casing material Plastic

Ambient temperature range -25…+50 °C
Maximum temperature at tc test point 80 °C

ECG lifetime 50000h

Design / version With cable clamp
System guarantee level 3c

Maximum wiring length ECG/lamp 1.5m
Overheating protection Power reduction and switch off at T > 80 °C at the tc point
Overvoltage protection at 275…300V 48 h
Overvoltage protection at 300…320V 2 h
Overvoltage protection at 320…350V 5 min
ECG reset time > 0.5s
Cable types, input side NYM-J 3x1.5 / NYM-J 3x2.5 / H05VV-F 3x1.5 / NHXMH-J 3x1.5mm²
Cable types, output side SIHF-J 3x1.5 / SIHF-J 3x2.5 / SIHSI 3x1mm²
Dimmable No
Restriction on ignition time 20 min
Suitable for fixtures with prot. class I

Approval marks – approval ENEC 10 / VDE / VDE-EMC / GOST / C-Tick
Type of protection IP20
EEI – Energy Label A2
Standards acc. to EN 61347-2-12/acc. to EN 55015/acc. to EN 61000-3-2/acc. to EN 61547/acc. to EN 62493

Product benefits
-Extended terminal section enables mains looping
-Screw-down cable clamps for reliable strain relief
-Long reliable life at maximum permitted temperatures
-Automatic safety shutdown of lamps in the event of a defect or at end of life (EoL)

Areas of application
-Shop lighting
-Health and fitness areas
-Effect and accent lighting

Tehnični podatki

Tehnični podatki: Predstikalne naprave, elektronske HID PTI 70/220 240 I

Možnost zatemnitveDa
Napetost - Volt (V)220
Moč - Watt (W)70
Poraba energije - (kWh / 1000h)70
Mednarodna oznaka zaščite - (IPXX)IP20
Življenska doba - ure (h)50000
Tovarniško pakiranje - kosov (kos)20
Prenosi

Prenosi: Predstikalne naprave, elektronske HID, PTI 70/220 240 I

Varnostna navodila

Komentarji    1 komentar

Skupna ocena: 5,00 / 5

Temelji na 1 komentar


Napiši komentar


5 - Rating

Uporabljam jo za terarijsko svetilko LUCKY REPTILE BRIGHT SUN UV DESERT 75W. Deluje BP, je pa skoraj za pol cenejša od Lucky Reptilove predstikalne naprave..

,
