LED driver LCM 25 54V 25W IP20 brighten your home with mean well dali

This LED driver LCM 25 6 54V 25W IP20 is the perfect choice for your lighting needs. With its high-quality components and reliable performance, you can trust i

Introducing Our Cutting-Edge LED Driver LCM 25 6 54V 25W IP20

Experience superior lighting control with our LED driver LCM 25 6 54V 25W IP20. Designed to meet the demands of modern lighting systems, this versatile LED driver offers a wide range of features and benefits that will elevate your lighting projects to new heights. Whether you're an industrial designer, lighting engineer, or simply looking to upgrade your home lighting, our LCM 25 6 54V 25W IP20 is the perfect solution for you.

Illuminate Your World with Precision and Efficiency

Our LED driver LCM 25 6 54V 25W IP20 is a powerhouse of lighting control technology. With a robust design and a host of advanced features, this LED driver stands out in the market. It's capable of delivering output current levels that you can select via a convenient DIP switch, allowing you to fine-tune your lighting to perfection. The built-in active Power Factor Correction (PFC) function ensures efficient power usage, making it environmentally friendly and cost-effective.

This LED driver operates flawlessly with an input voltage range of 180~277 VAC, making it suitable for a variety of applications. Safety is a top priority, and our LED driver offers multiple protections, including short-circuit and over-temperature protection. You can trust it to keep your lighting system secure.

Cooling is achieved through free air convection, ensuring reliable performance without the need for noisy fans. The fully isolated plastic case and Class II power unit with no FG provide an extra layer of safety. Moreover, the built-in 0~10 VDC and PWM signal dimming function allows you to control your lighting's intensity with ease.

One remarkable feature is its minimal power consumption when idle, consuming less than 0.5 W. It's IP20 rated for protection against dust and solid objects, making it suitable for various indoor applications.

Additionally, you can synchronize up to 10 units of this LED driver for larger projects. And with a generous 3-year warranty, you have peace of mind knowing you're investing in a reliable lighting solution.

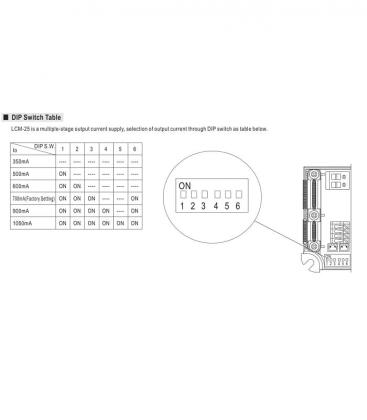

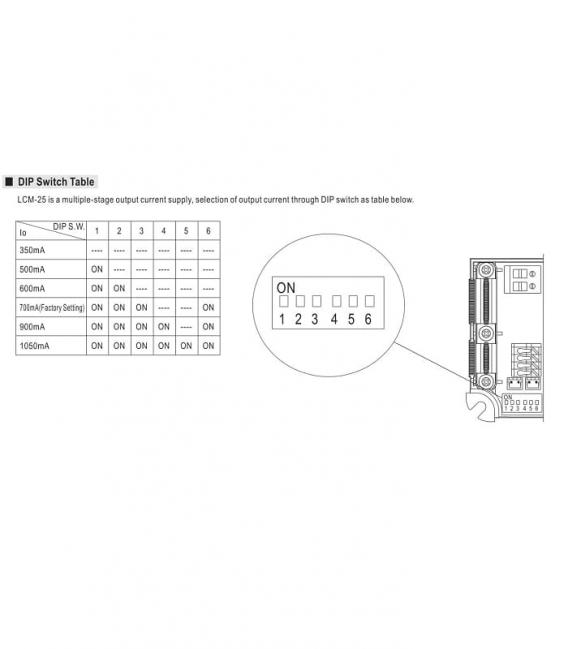

• Output current level selectable via DIP switch
• Built-in active PFC function
• 180~277 VAC input only
• Protections: Short circuit/ Over temperature
• Cooling by free air convection
• Fully isolated plastic case
• Class II power unit, no FG
• Built-in 0~10 VDC and PWM signal dimming function
• No load power consumption < 0.5 W
• IP20 rated
• Power supplies synchronization function up to 10 units
• 3 years warranty

Technical Electrical Data:

• Input voltage range: 180277 VAC / 254392 VDC
• Input AC current: 0.17 A / 230 VAC, 0.15 A / 277 VAC
• Output options: 6-54 VDC/350 mA, 650 VDC/500 mA, 642 VDC/600 mA, 636 VDC/700 mA, 628 VDC/900 mA, 6~24 VDC/1050 mA
• Input frequency range: 47~63Hz
• Efficiency: 86%

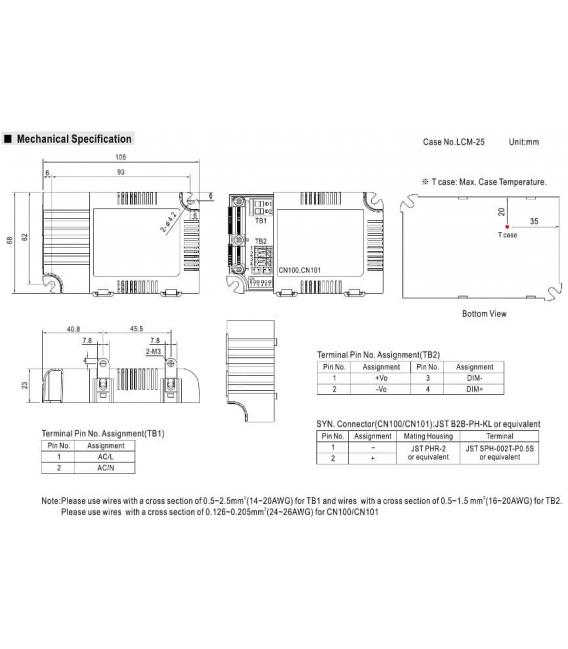

• Dimensions:105 × 68 × 23 mm
• Weight: 0.16 kg

Applications: Versatile Lighting Control for All Your Projects

Our LED driver LCM 25 6 54V 25W IP20 is a game-changer for various lighting applications. Whether you're working on residential lighting, commercial projects, or industrial installations, this driver is your trusted companion. Its flexibility in output current levels and dimming options makes it perfect for architectural lighting, retail displays, and more. You can count on its robust design and reliable performance for any lighting project.

Benefits: Elevate Your Lighting Experience

Investing in our LED driver LCM 25 6 54V 25W IP20 offers a multitude of benefits. You'll enjoy precise lighting control, energy efficiency, and enhanced safety. The ability to synchronize multiple units simplifies large-scale projects, while the minimal power consumption during idle times saves on energy costs. With a 3-year warranty, you have the assurance of durability and performance.

Technical Excellence and Safety Standards:

Our LED driver complies with the following safety standards: UL8750, CSA C22.2 No. 250. 0-08, ENEC EN61347-1, EN61347-2-13, EN62384. These certifications ensure that our product meets the highest industry standards, delivering reliable and secure lighting control.

Conclusion: Illuminate with Confidence

In conclusion, our LED driver LCM 25 6 54V 25W IP20 is a top-tier lighting control solution that combines advanced technology, safety, and efficiency. Whether you're a professional in the field or a DIY enthusiast, this LED driver will meet and exceed your expectations. Elevate your lighting projects to new heights and enjoy the benefits of precise control, energy efficiency, and peace of mind with our LCM 25 6 54V 25W IP20 LED driver.

Suitable for:
• Indoor Led lighting
• Office Led lighting
• Led decorative lighting

Download LCM-25-SPEC.pdf
