Lamp holders, lamp sockets

Lampholder Base G53

076942 | Manufacturer: Vossloh Schwabe | EAN: 4014364076942 | MPN: 107694

Lampholder for low-voltage halogen incandescent lamps. Casing: PPS, black.


1,00 €tax excl.

Price for 1 piece, excluding shipping costs!
Condition: New product
Factory Box - pieces (pcs): 10

-+

More info

G53 lamp connector
Casing: PPS, black
Nominal rating: 10/24
Contacts: CuNiZn
Lead: Cu tinned, stranded conductors 0.75mm², Si-insulation, length: 140 mm
Fixing hole for screw M4
Lead exit: lateral

Data sheet

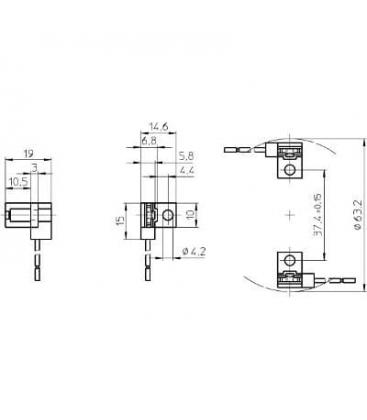

Data sheet: Lamp holders, lamp sockets Lampholder Base G53

Base/SockelG53
Factory Box - pieces (pcs)10
Download

Download: Lamp holders, lamp sockets, Lampholder Base G53

General safety informations

Reviews    4 reviews

Total rating: 4,75 / 5

Based on 4 reviews


Write a Review


5 - Rating

Fast support and delivery. Everything as it should be! Best regards Kristinn

,
5 - Rating

Ordered this item to install some AR111 lamps, for which I did not have a lamp holder. Payment was promptly received, and lampholders were received ultra fast. Packaging was very good. Very well done. The lampholders are trouble free and fit well. A worry-free product.

,
4 - Rating

Ya se soluciona la duda, en principio en la foto el cable es de color gris y parece una pieza entera soldada en plastico. Sin embargo al leer las caracteristicas me he dado cuenta que si decia que el cable era marron. Mis disculpas, sin embargo la informacion puede ser confusa. saludos cordiales carlos nieto

,
5 - Rating

I'm very satisfied these G53 lampholders, I built these G53 base lampholders in my older lamps, and all working perfectly.

,
