Lampholder G5 84108 screw ring transparent foot gaskets IP67 with

Vossloh Schwabe Lampholder G5 84108 screw ring transparent foot gaskets IP67 with. Discover the unique Lampholder G5 84108 with a screw ring and transparent foot gaskets. IP67 rated for superior safety in our T5 Lamp holders category.

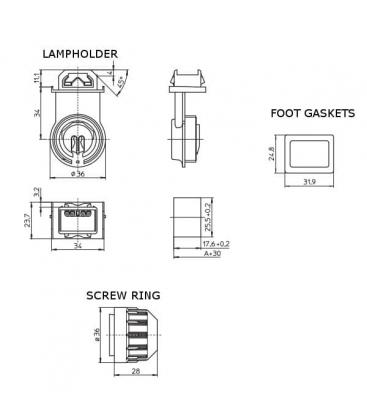

G5 push-fit lampholder
Casing: PC, white, interior part: PBT GF
T140, nominal rating: 2/500
Push-in twin terminals: 0.5 - 1 mm²
Push-fit foot for wall thickness: 1.4–2 mm
Type: 84108 system 151
Ref. No.: 534073
Screw ring for systems 151, 153 and 154
Ring: PBT GF, white, gasket: silicone
Type: 84103
Ref. No.: 529836
Foot gaskets for system 151
Ref. No.: 504078
Material: silicone, white
Type: 98011 degree of protection IP67

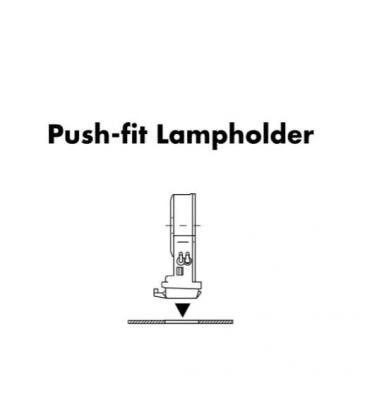

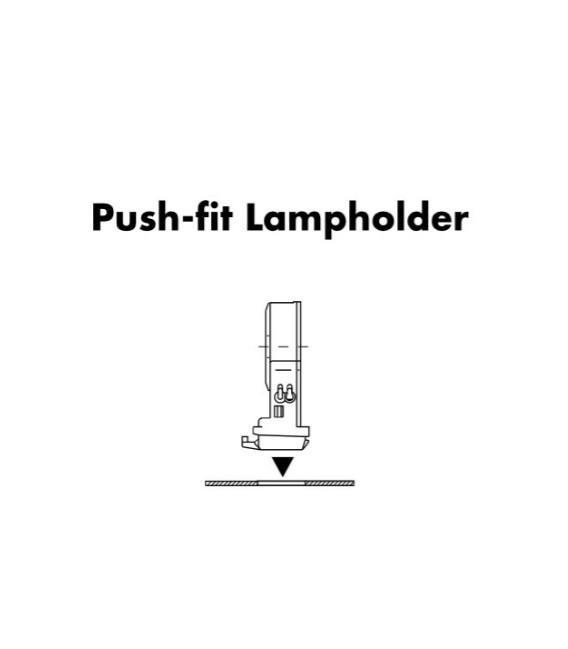

Push-fit lampholders
This lampholder type, which is frequently found in surface-mounted ceiling and built-in luminaires, is pushed into the luminaire casing from above. The lampholder foot should protrude by no more than 4 mm to match the usual height of the spacing cams in the luminaire casing. These lampholders are mostly wired above the luminaire casing to the side of the lampholder. However, there are also lampholders on which the wiring runs through the lampholder foot, with the leads laid beneath the luminaire casing.
