611345 | Manufacturer: Philips | EAN: 8711500611345 | MPN: 927914883071
Illuminate your space with the GX24 Compact Fluorescent Lamp Master PL-T 42W 830 4P. Enjoy bright, energy-efficient lighting in a compact design.
Cap-Base GX24q-4
Cap-Base Information 4P
Life to 10% fail Preheat EL,3h 8000 h
Life to 10% fail Brez predgretja EL,3h 4500 h
Life to 50% fail Preheat EL,3h 13000 h
Life to 50% fail Brez predgretja EL,3h 7000 h
Color Code 830 [CCT of 3000 K]
Color Rendering Index 82 Ra8
Color Designation Warm White
Color Temperature 3000 K
Luminous Flux EM 25 °C, Rated 3050 lm
Luminous Flux EM 25 °C, Nominal 3050 lm
Luminous Efficacy Rated EM 25 °C 74 (min) lm/W
Design Temperature 28 C
Chromaticity Coordinate X 434 -
Chromaticity Coordinate Y 397 -
Lamp Wattage 42 W
Lamp Wattage EL 25 °C, Rated 41 W
Lamp Wattage EL 25 °C, Nominal 42 W
Lamp Voltage EM 25 °C 125 V
Lamp Current EM 25 °C 0.320 A
Dimmable Yes
Energy Efficiency Label (EEL) A
Mercury (Hg) Content 1.4 mg
Energy consumption kWh/1000 h 45 kWh

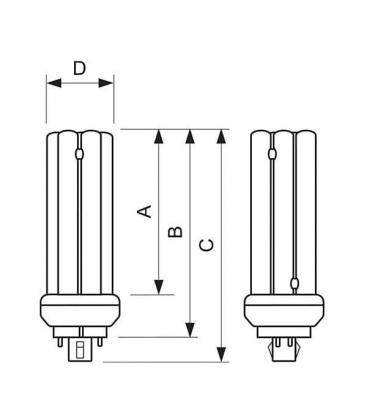

Base Face to Base Face A 120.7 (max) mm
Insertion Length B 145 (max) mm
Overall Length C 160.7 (max) mm
Diameter D 41 (max) mm
Optimal light performance for short or long operation per switch-on
• Substantially more light (about 15% more) per light point than with other similar shapes
• Multiple light color choice
• Good color rendering (CRI > 80)
Features
• 4-pin base
• Philips’ bridging technology applied
• Fluorescent tri-phosphor technology
• Low light depreciation over lamp life
• Fast light run-up
Applications
• Designed for general or supplementary lighting in professional and semi-professional environments
• Ideal for use in recessed or surface mounted downlighters, wall units, outdoor lighting
• First choice for short switching cycles, emergency lighting and deep dimming
Explanation It needs ballast | yes |
Explanation Dimmable | yes, with DIMM ECG |
Explanation Energy efficiency class | A |
Explanation Lamp holder, lamp socket | GX24q-4 |
Explanation Wattage - (W) | 42 |
Explanation Luminous flux - (lm) | 3050 |
Explanation Luminous efficacy - (lm / W) | 73 |
Explanation Color temperature - (K) | 3000 |
Explanation Light color code | 830 |
Explanation Color rendering - (CRI) | 82 |
Explanation Energy consumption - (kWh / 1000h) | 42 |
Explanation Lifetime - (h) | 13000 |
Explanation Factory packed - (pieces) | 10 |
