GX24 CFL master PL 18W 840 4P compact fluorescent lamp

Illuminate your space with the GX24 Compact Fluorescent Lamp Master PL-T 18W 840 4P. Enjoy efficient lighting in a compact design for bright, energy-saving illumination.

Cap-Base GX24q-2
Cap-Base Information 4P
Life to 10% fail Preheat EL,3h 8000 h
Life to 10% fail Brez predgretja EL,3h 4500 h
Life to 50% fail Preheat EL,3h 13000 h
Life to 50% fail Brez predgretja EL,3h 7000 h
Color Code 840 [CCT of 4000 K]
Color Rendering Index 82 Ra8
Color Designation Cool White
Color Temperature 4000 K
Luminous Flux EM 25 °C, Rated 1200 lm
Luminous Flux EM 25 °C, Nominal 1200 lm
Luminous Efficacy Rated EM 25 °C 73 (min) lm/W
Design Temperature 28 C
Chromaticity Coordinate X 380 -
Chromaticity Coordinate Y 379 -
Lamp Wattage 18 W
Lamp Wattage EL 25 °C, Rated 16.5 W
Lamp Wattage EL 25 °C, Nominal 18 W
Lamp Voltage EM 25 °C 100 V
Lamp Current EM 25 °C 0.225 A
Dimmable Yes
Energy Efficiency Label (EEL) A
Mercury (Hg) Content 1.4 mg
Energy consumption kWh/1000 h 20 kWh

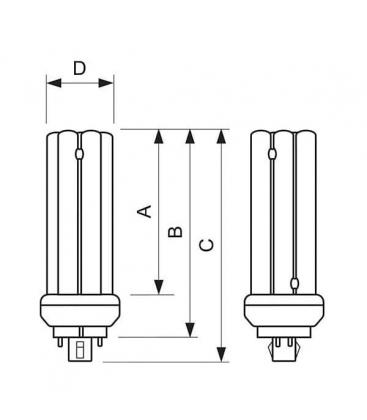

Base Face to Base Face A 71.7 (max) mm
Insertion Length B 96 (max) mm
Overall Length C 111.7 (max) mm
Diameter D 41 (max) mm
Optimal light performance for short or long operation per switch-on
• Substantially more light (about 15% more) per light point than with other similar shapes
• Multiple light color choice
• Good color rendering (CRI > 80)

Features
• 4-pin base
• Philips’ bridging technology applied
• Fluorescent tri-phosphor technology
• Low light depreciation over lamp life
• Fast light run-up

Applications
• Designed for general or supplementary lighting in professional and semi-professional environments
• Ideal for use in recessed or surface mounted downlighters, wall units, outdoor lighting
• First choice for short switching cycles, emergency lighting and deep dimming
