GX24 CFL master PL 18W 830 2P compact fluorescent lamp

Philips GX24 CFL master PL 18W 830 2P compact fluorescent lamp. Illuminate your space with the GX24 Compact Fluorescent Lamp Master PL-T 18W 830 2P. Enjoy bright, energy-efficient lighting in a compact design.

Cap-Base GX24d-2
Cap-Base Information 2P
Life to 10% failures EM 6500 h
Life to 50% failures EM 10000 h
Color Code 830 [CCT of 3000 K]
Color Rendering Index 82 Ra8
Color Designation Warm White
Color Temperature 3000 K
Luminous Flux EM 25 °C, Rated 1200 lm
Luminous Flux EM 25 °C, Nominal 1200 lm
Luminous Efficacy Rated EM 25 °C 67 (min) lm/W
Design Temperature 28 C
Chromaticity Coordinate X 434 -
Chromaticity Coordinate Y 397 -
Lamp Wattage 18 W
Lamp Wattage EM 25 °C, Nominal 18 W
Lamp Wattage EM 25 °C, Rated 18 W
Lamp Voltage EM 25 °C 100 V
Lamp Current EM 25 °C 0.225 A
Dimmable No
Energy Efficiency Label (EEL) B
Mercury (Hg) Content 1.4 mg
Energy consumption kWh/1000 h 22 kWh

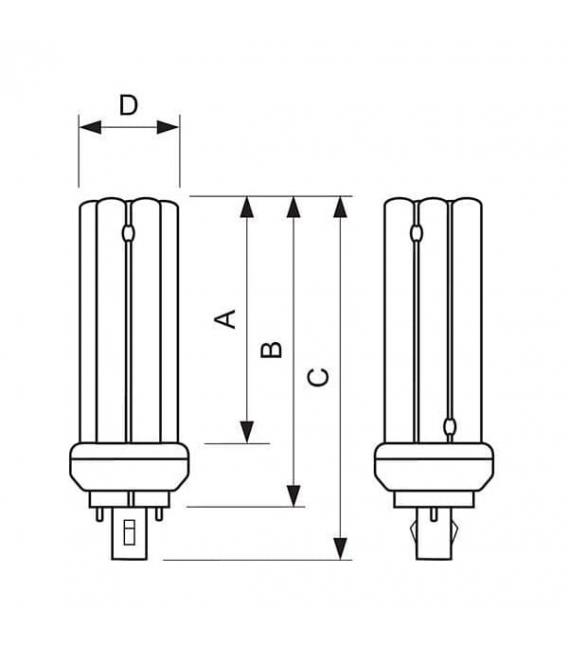

Base Face to Base Face A 71.8 (max) mm
Insertion Length B 96 (max) mm
Overall Length C 119.2 (max) mm
Diameter D 41 (max) mm
Optimal light performance for short or long operation per switch-on
• Substantially more light (about 15% more) per light point than with other similar shapes
• Multiple light color choice
• Good color rendering (CRI > 80)

Features
• 2-pin base with a housing incorporating the special instant starter and capacitor
• Philips’ bridging technology applied
• Fluorescent tri-phosphor technology
• Low light depreciation over lamp life
• Fast light run-up

Applications
• Designed for general or supplementary lighting in professional and semi-professional environments
• Ideal for use in recessed or surface mounted downlighters, wall units
