CFL master PL 26W 830 4P xtra G24 compact fluorescent lamp

Illuminate your space with the Master PL-C 26W 830 4P xtra compact energy saving lamp. Efficient and bright, perfect for G24 sockets.

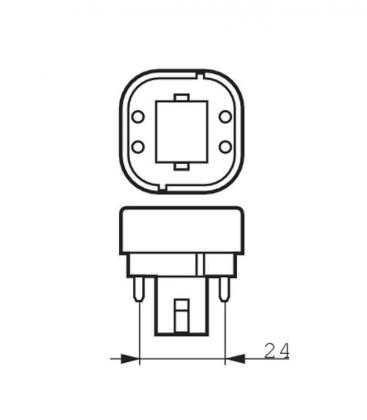

Cap-Base G24Q-3 [ G24q-3]
Cap-Base Information 4 Pins
Life To 50% Failures Preheat 33000 h
LSF Preheat 2000 h Rated 99%
LSF Preheat 4000 hRated 98%
LSF Preheat 6000 hRated 97%
Color Code 830 [ CCT of 3000 K]
Luminous Flux 1800 lm
Luminous Flux (Rated) 1800 lm
Color Designation Warm White (WW)
Chromaticity Coordinate X 435
Chromaticity Coordinate Y 400
Correlated Color Temperature 3000 K
Luminous Efficacy (rated) 75 lm/W
Color Rendering Index 82
LLMF 2000 h Rated 92%
LLMF 4000 hRated 88%
Power (Rated) 26 W
Lamp Current 0.300 A
Design Temperature 28 °C
Dimmable Yes
Energy Efficiency Label (EEL)A
Mercury (Hg) Content 3 mg
Energy consumption kWh/1000 h 29 kWh

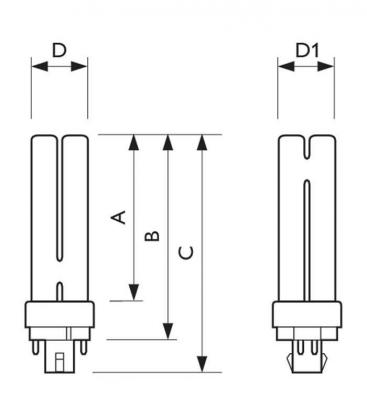

Base Face to Base Face A 130.7 (max) mm
Insertion Length B 149 (max) mm
Overall Length C 163.9 (max) mm
Diameter D 27.1 (max) mm
Diameter D1 27.1 (max) mm
MASTER PL-C Xtra is an efficient compact fluorescent lamp, typically used in general downlights for retail, hospitality and office applications. MASTER PL-C Xtra lamps furthermore provide significantly lower operating costs thanks to their lifetime, which is more than double that of a standard MASTER PL-C lamp, and their very low early failure rate. The original Philips-invented bridge technology guarantees optimum performance in the application, enabling more light and higher efficacy than the bended technology. The 4-pin version is designed for operation on electronic HF control gear with integrated pre-heat and is provided with a plug-in/pull-out lamp base.

Benefits
• Less hassle and lower maintenance costs and facilitating the change from spot to group replacement

Benefits
• Optimal light performance for long operation per switch-on
• Multiple light color choice
• Good color rendering (CRI > 80)
• Dimming possible down to 30%

Features
• 4-pin base
• Fluorescent tri-phosphor technology
• Extra long lifetime and less early failures
• Low light depreciation over lamp life

Applications
• Designed for general or supplementary lighting in professional environments
• Recessed or surface-mounted downlighters, wall units, table lamps and pendant lamps
• Suitable for use in applications where maintenance costs are high (high ceilings, difficult to reach): department stores, supermarkets, warehouses, production halls and public areas
